Rear brake pads

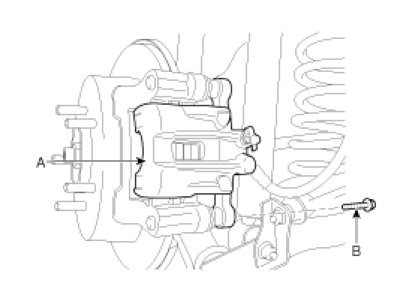

1. Loosen the guide rod bolt (B) and pivot the caliper (A) up out of the way.

Tightening torque:
21.6 - 31.4 N.m (2.2 - 3.2 kgf.m, 15.9 - 23.1 lb-ft)

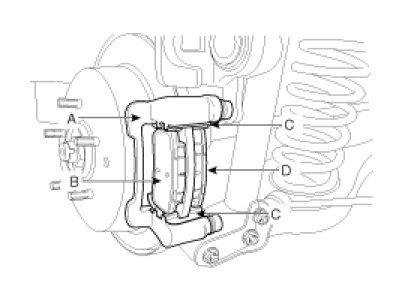

2. Replace pad shim (D), pad retainers (C) and brake pads (B) in the caliper bracket (A).
