Antilock Brakes / Traction Control Systems
>>
System Diagram
System Diagram

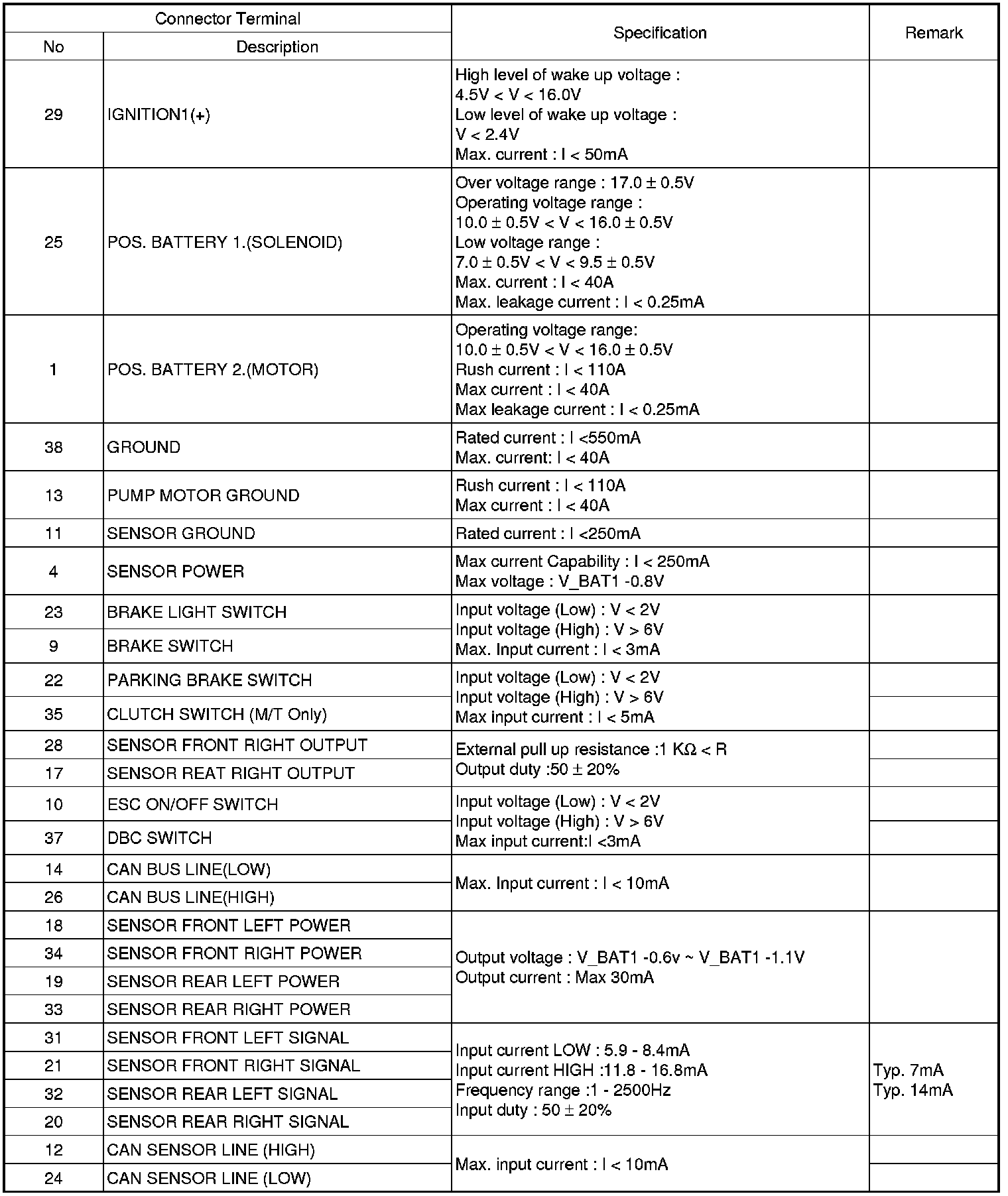

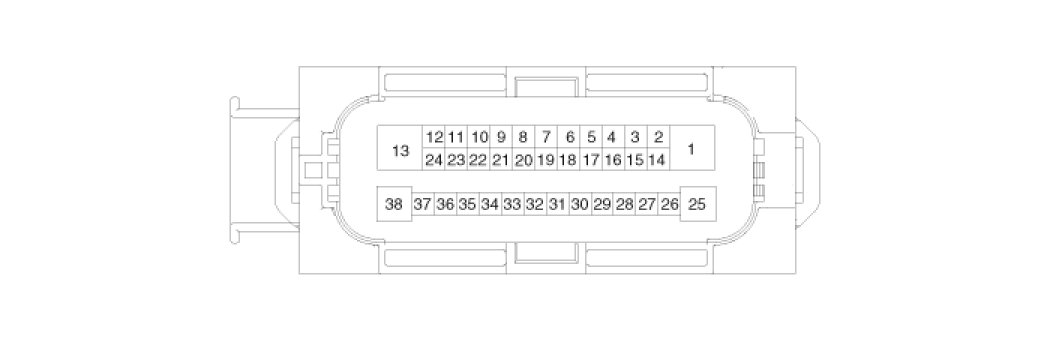

ESC connector input/output

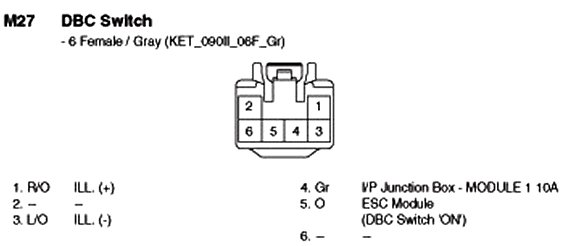

M27 DBC Switch:
