Tucson AWD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Instrument Cluster / Carrier

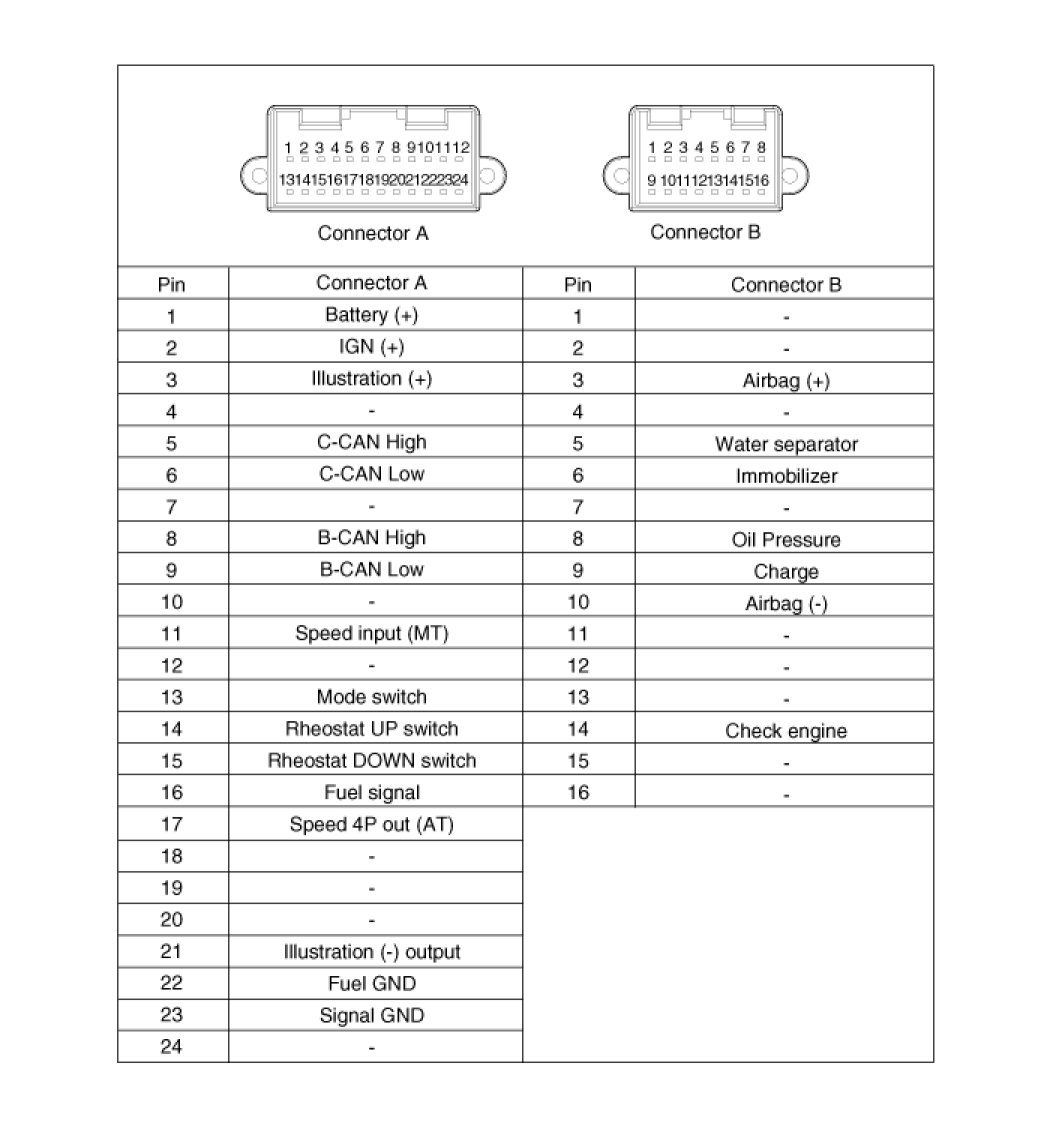

Instrument Cluster / Carrier

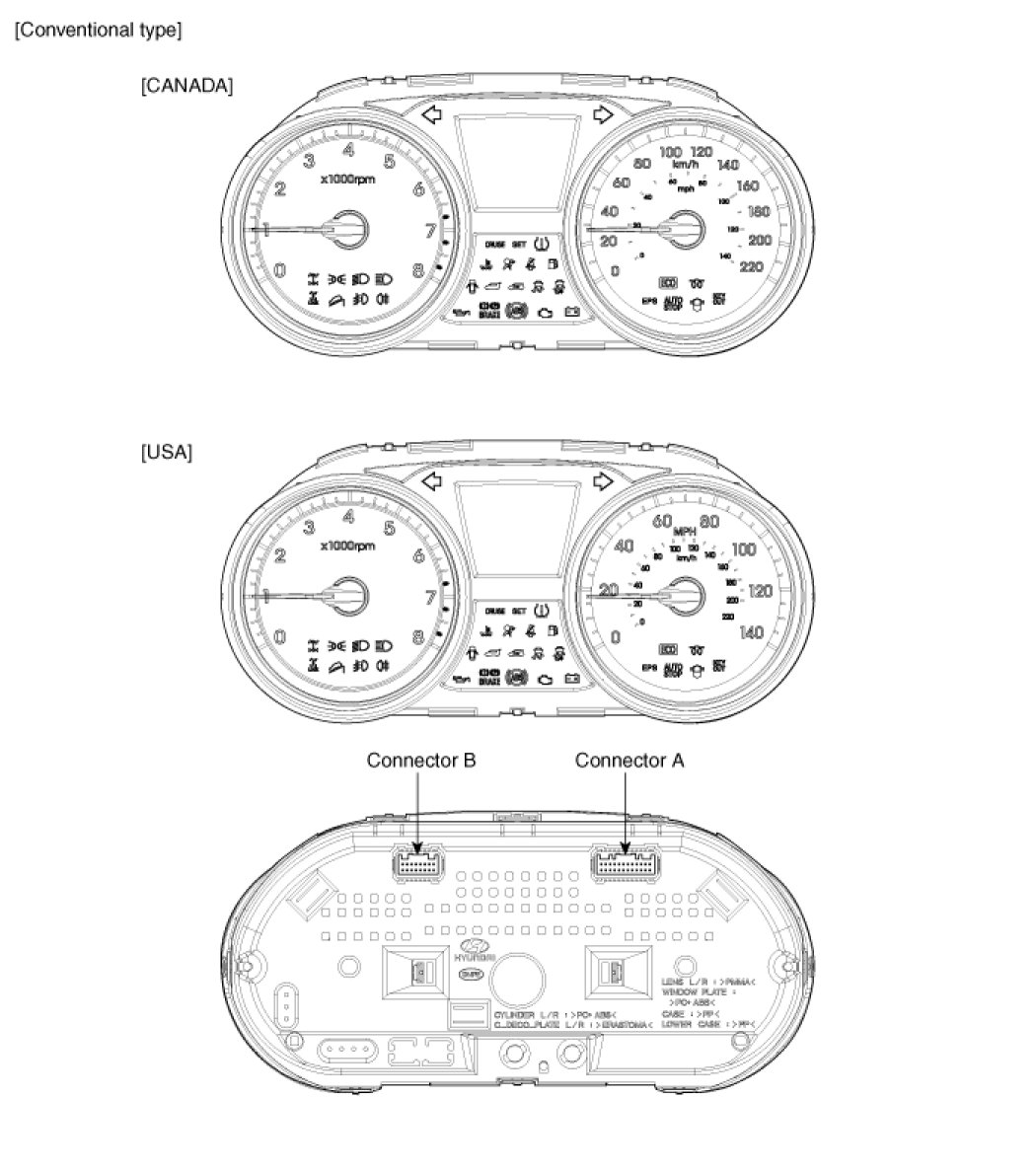

Components

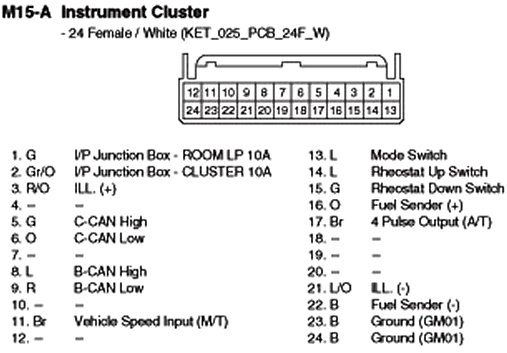

M15-A Instrument Cluster:

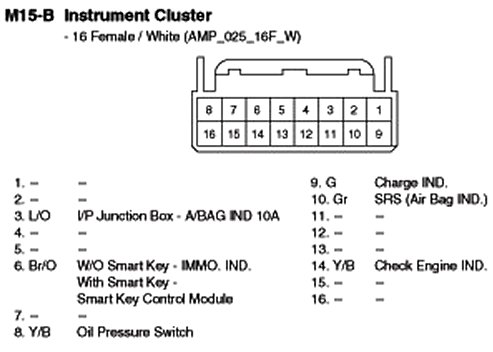

M15-B Instrument Cluster:
