Operation CHARM
: Car repair manuals for everyone.
Home
>>
Hyundai
>>
2010
>>
Tucson AWD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>

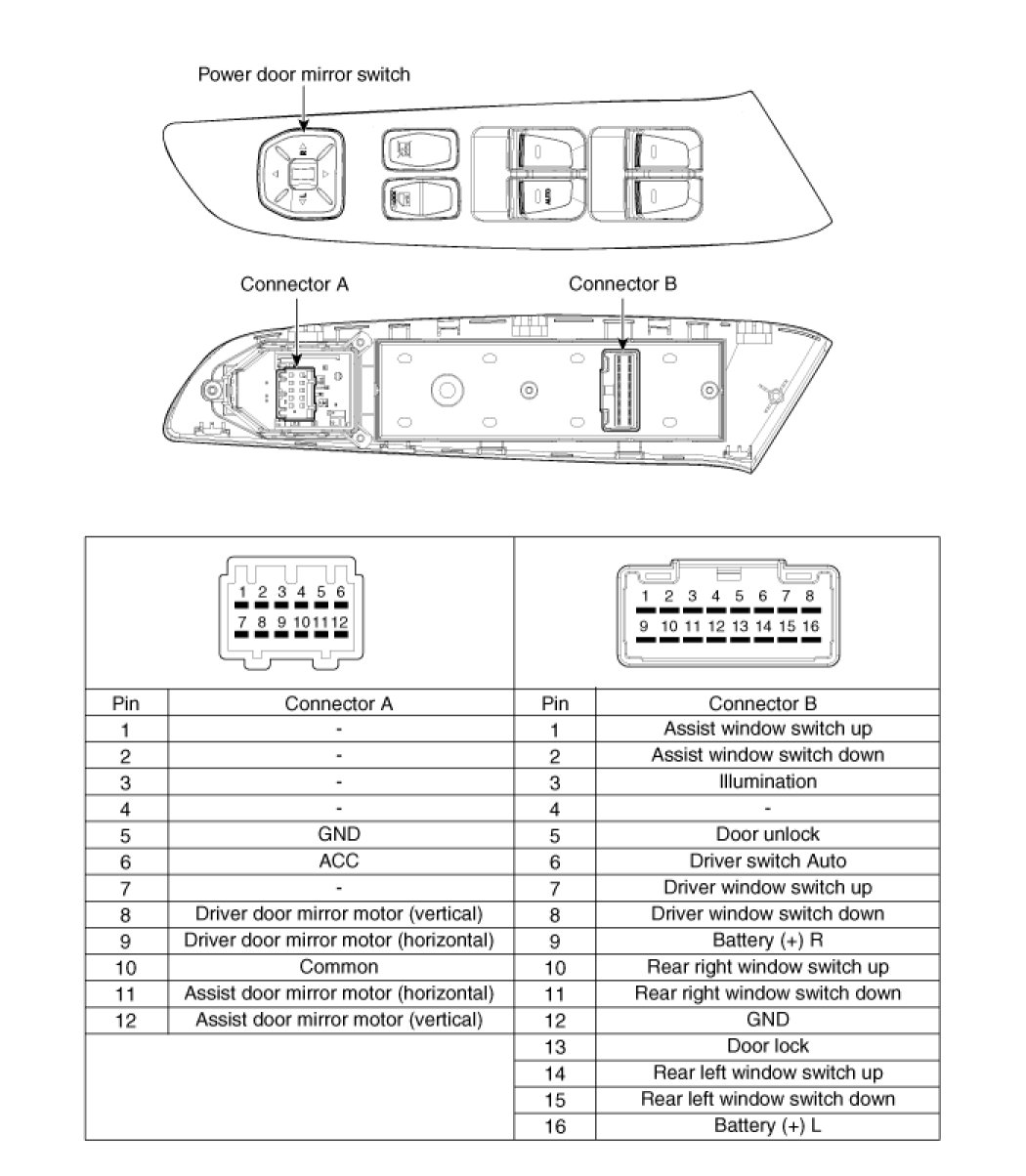

Connector Views
>>
Mirrors
>>
Power Mirror Switch
Power Mirror Switch

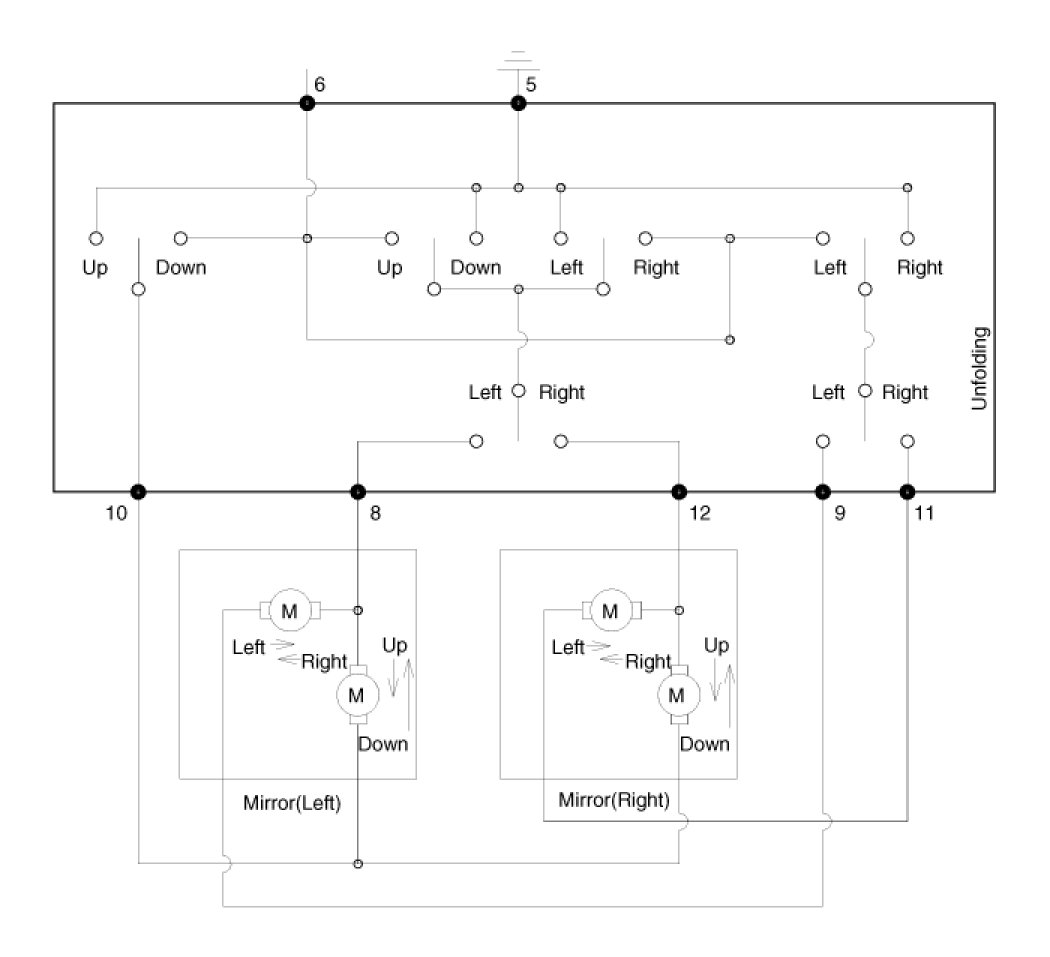

Circuit Diagram

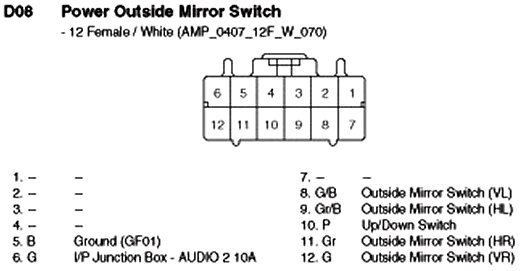

D08 Power Outside Mirror Switch:
