Multiple Junction Connector
>>
Joint Connector
Joint Connector

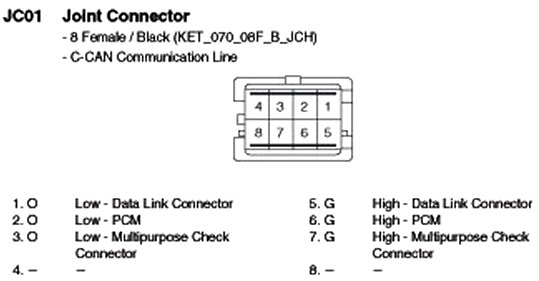

JC01 Joint Connector:

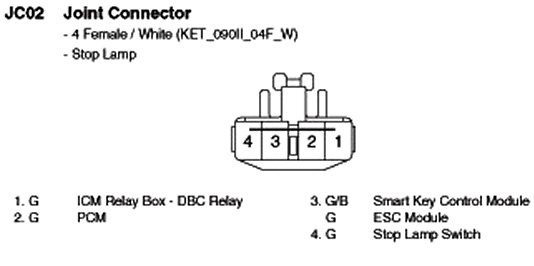

JC02 Joint Connector:

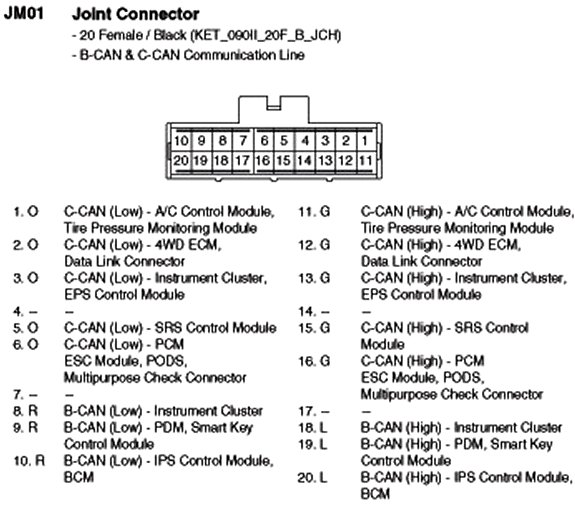

JM01 Joint Connector:

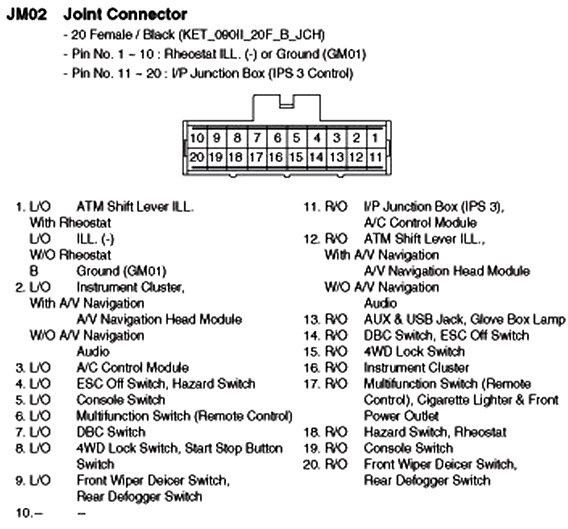

JM02 Joint Connector:
