Outline





Components

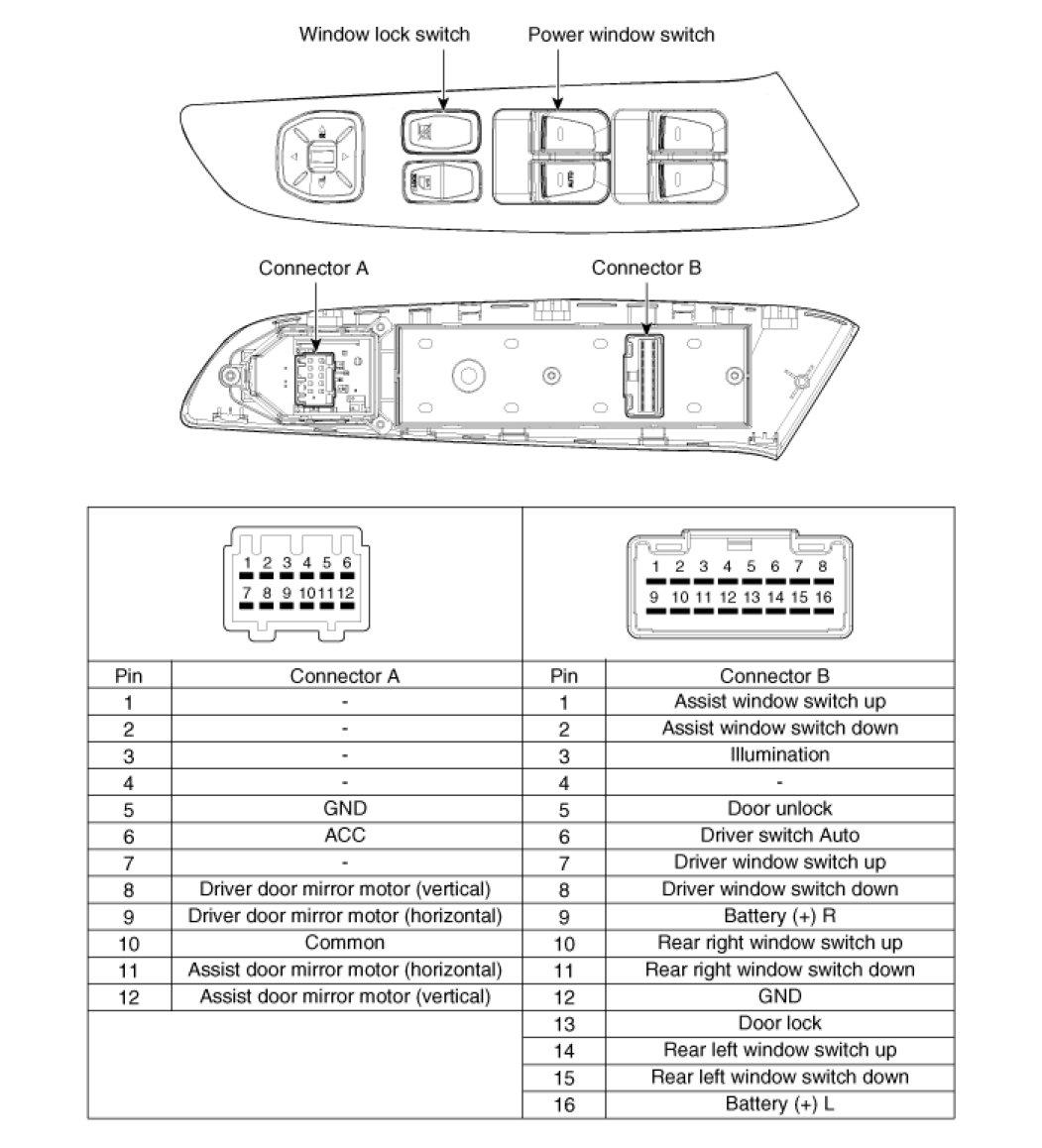

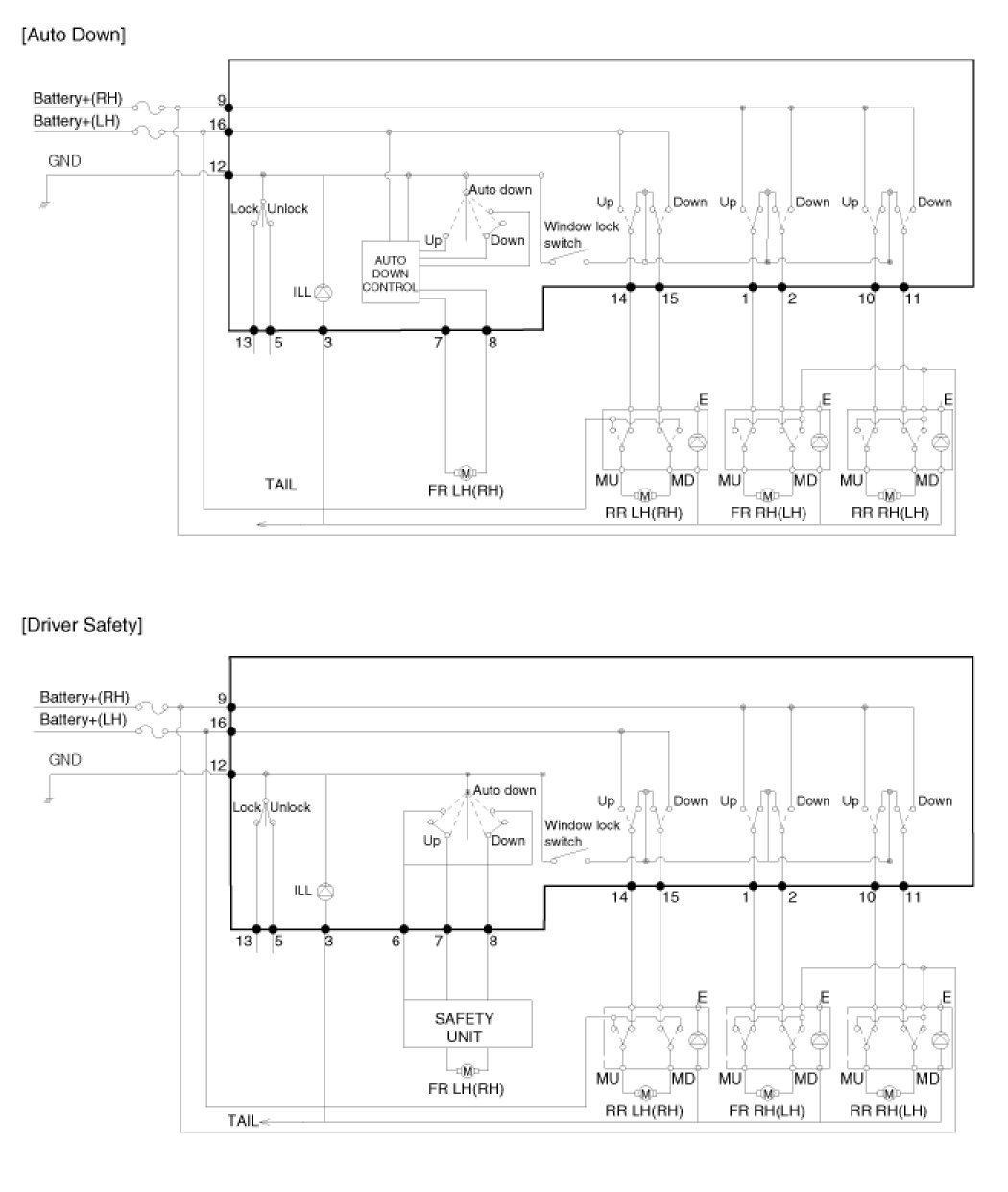

Power Window Main Switch

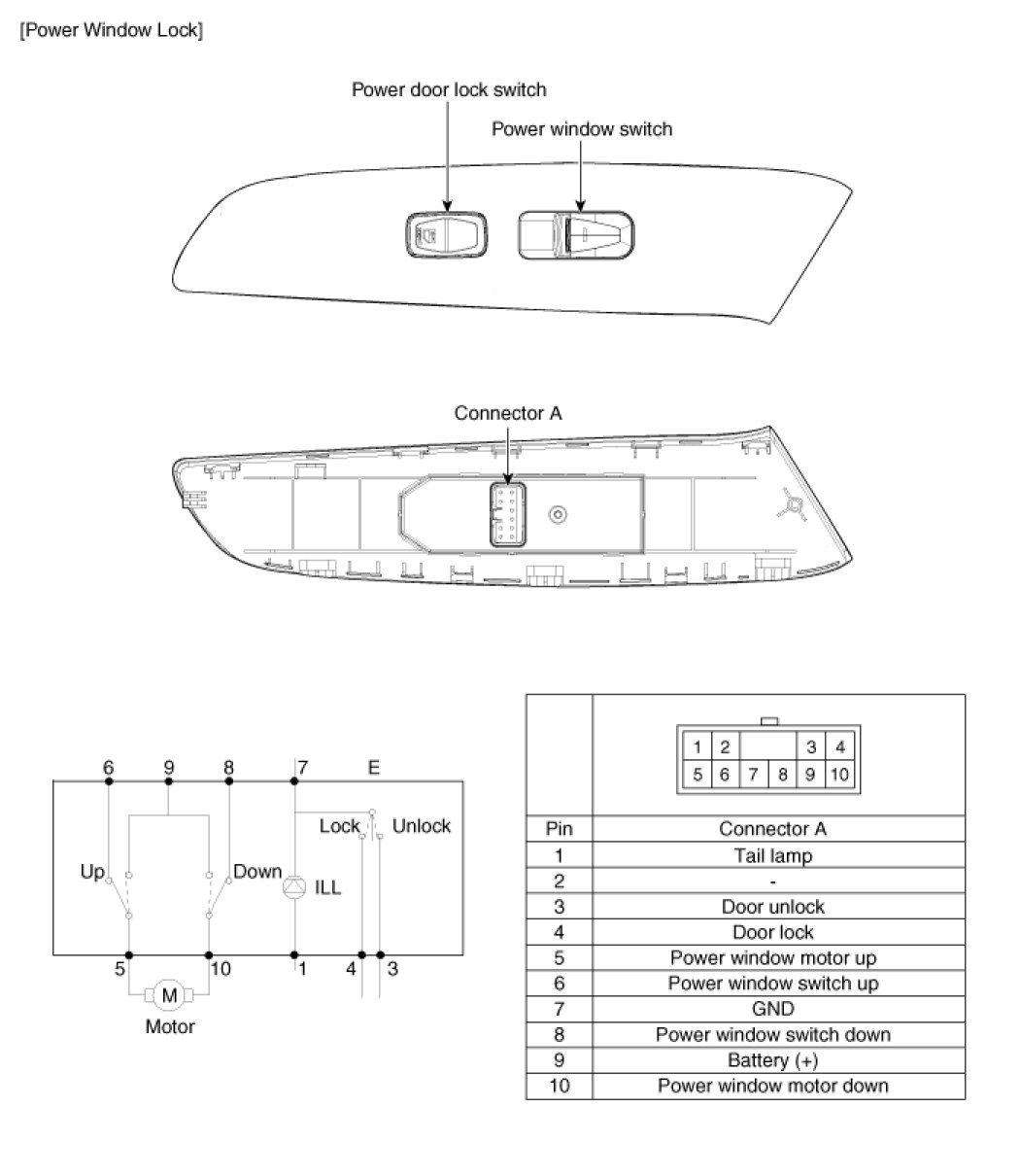

Passenger Power Window Switch

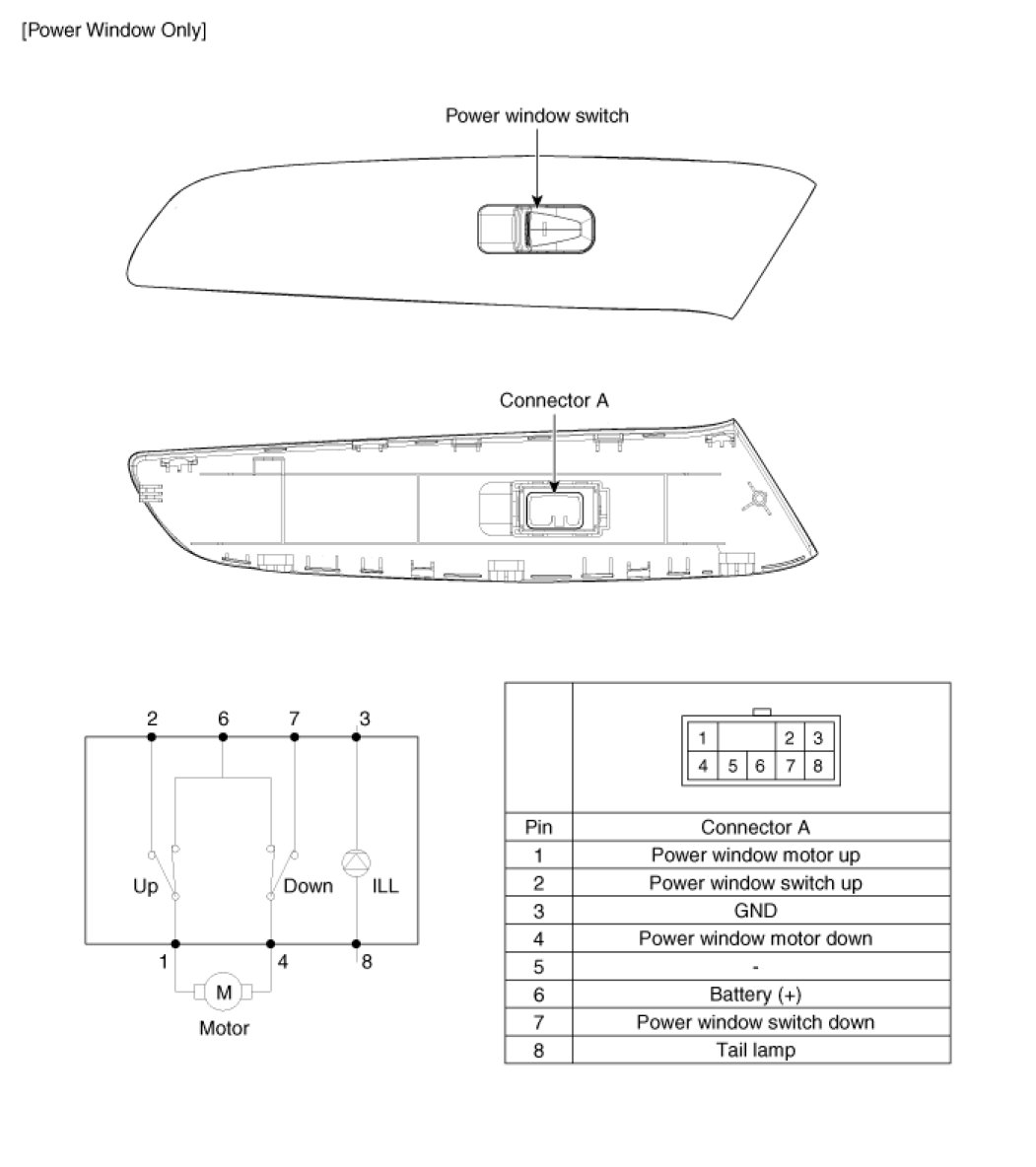

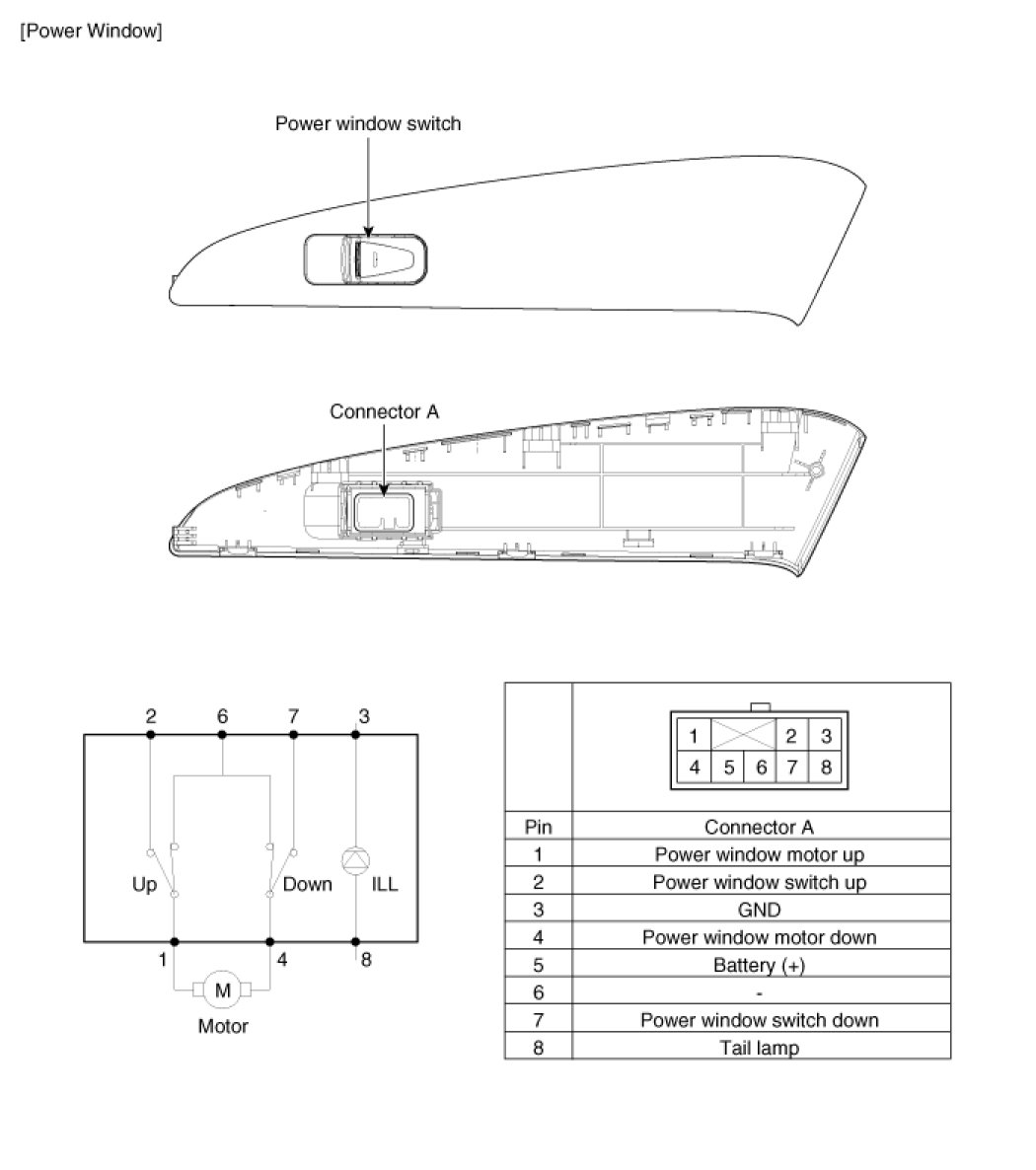

Rear Power Window Switch
