Blower Motor Resistor: Service and Repair

Replacement

1. Disconnect the negative (-) battery terminal.

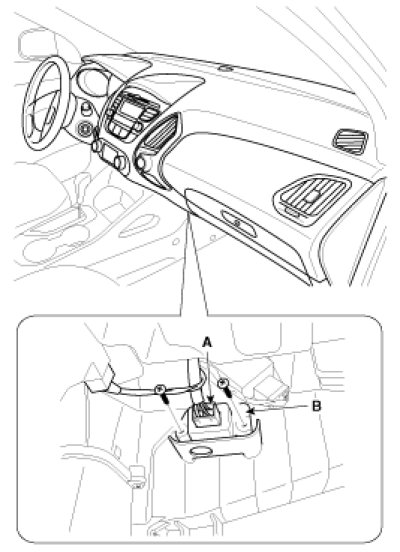

2. Disconnect the power mosfet connector (A) and then remove the power mosfet (B) after loosening the mounting screws.




3. Installation is the reverse order of removal.
