Crash Pad

Replacement

Heater control unit Replacement

CAUTION:
- When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.

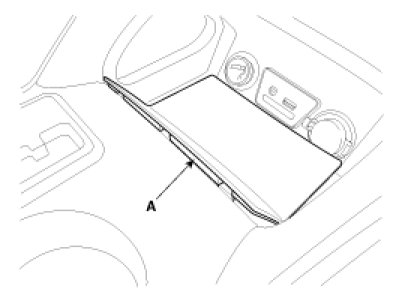

1. Using a screwdriver or remover, remove the floor console tray (A).

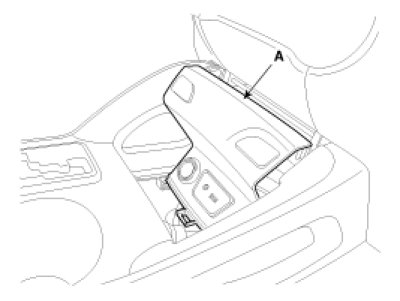

2. Using a screwdriver or remover, remove the console bezel (A).

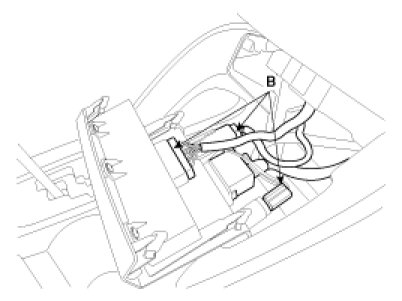

3. Disconnect the connectors (B).

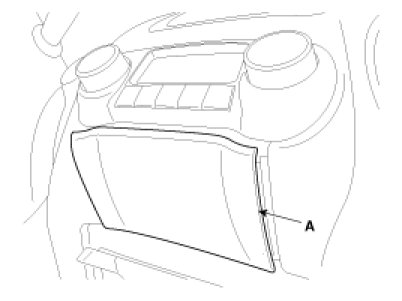

4. Using a screwdriver or remover, remove the crash pad center panel (A).

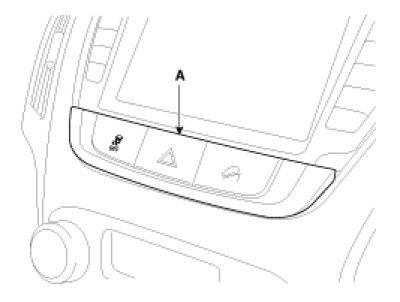

5. Using a screwdriver or remover, remove the hazard lamp switch assembly (A).

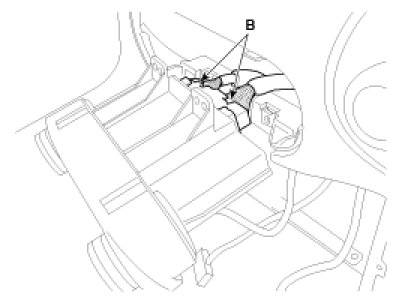

6. Disconnect the connectors (B).




7. After loosering the mounting screws, then remove the heater control unit (A).

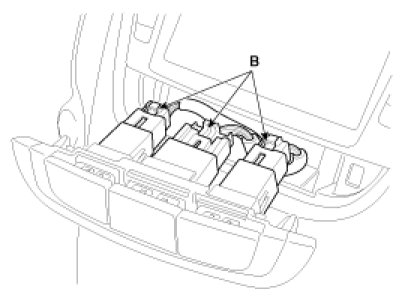

8. Disconnect the connectors (B).




9. Installation is the reverse the removal.

NOTE:
- Make sure the connectors are plugged in properly.
