Repair Procedures

Replacement

1. Disconnect the negative (-) battery terminal.
2. Recover the refrigerant with a recovery/charging station.

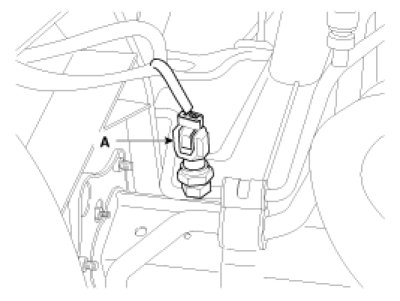

3. Disconnect the dual pressure switch connector (3P) (A).

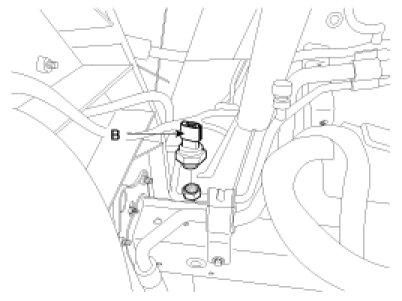

Tightening torque:
10 - 12 N.m (1.0 - 1.2 kgf.m, 7.4 - 8.8 lb-ft)










CAUTION:
Take care that liquid & suction pipe are not bent.

4. Installation is the reverse order of removal.
