Fog/Driving Lamp: Service and Repair

Removal

1. Disconnect the negative (-) battery terminal.
2. Remove the front bumper.

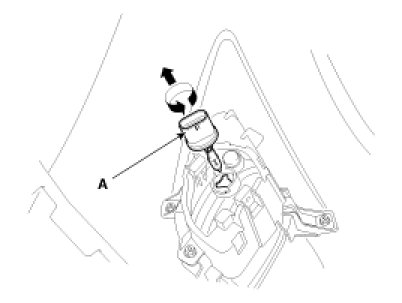

3. Remove the front fog lamp (A) by turning in the counterclockwise direction after disconnecting the connector.

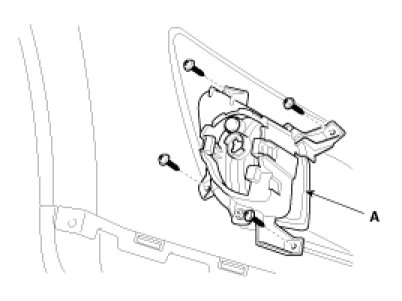

4. Remove the front fog lamp (A) after loosening the screws.






Installation

1. Install the front fog lamp bulb.
2. Connect the front fog lamp connector.
3. Install the front bumper.
