Repair Procedures

Removal

CAUTION:
Head lamps become very hot during use; do not touch them or any attaching hardware immediately after they have been turned off.

NOTE:
The headlamp bulb should not be removed from the headlamp assembly until just before a new bulb is installed.
Removing bulb for an extended period of time may affect headlamp bulb performance.
Contaminants may enter the headlamp assembly where they can settle on the lens and reflector.
Never turn on the head lamps with the bulb removed from the headlamp assembly.

1. Disconnect the negative (-) battery terminal.

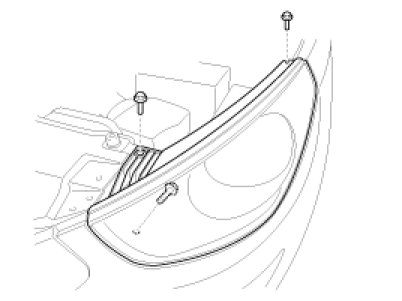

2. Loosen the mounting bolts (3EA) of head lamp.





NOTE:

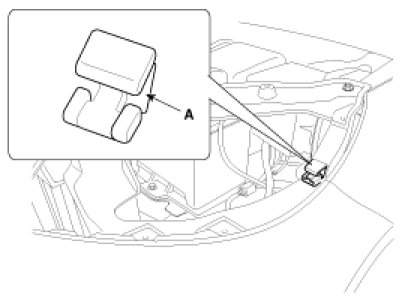

Take care that retaining clip (A) is not to be damaged.

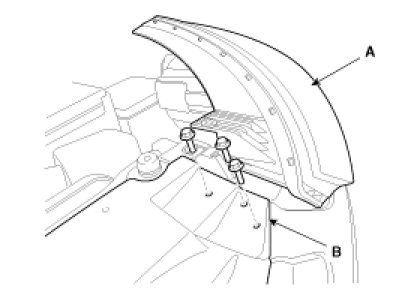

3. Remove the head lamp (A) after loosening the nuts of interfered radiator upper cover (B).






Installation

1. Install the head lamp bulbs.
2. Reassemble the head lamp bulb covers.
3. Reassemble the head lamp assembly after connecting the lamp connector.

Replacement

CAUTION:
Turn the head lamp switch off to avoid high voltage
Be careful not to damage the bulb and use genuine bulbs only
- Do not apply excessive force and fit it correctly.
- Confirm the bulb locking

Bulb (high/low)
1. Turn the head lamp switch off.
2. Disconnect the power connector from the lamp.
3. Remove the lamp assembly
4. Remove the dust cover.

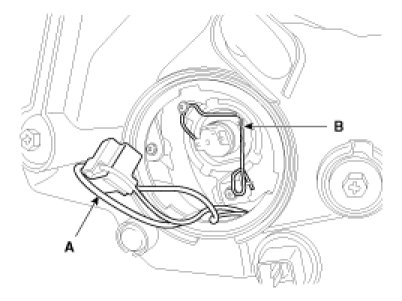

5. Remove the connector (A) from the bulb.




6. Remove the bulb clip (B) and bulb from the lamp assembly.
7. Installation is the reverse of removal.

Turn Signal Lamp & Position Lamp
1. Turn the head lamp switch off.
2. Remove the lamp assembly.
3. Turn the bulb socket (A) counterclockwise to remove the turn signal bulb (B) and position bulb (C).
