Repair Procedures

Removal

1. Disconnect the negative (-) battery terminal.
2. Remove the crash pad lower panel.

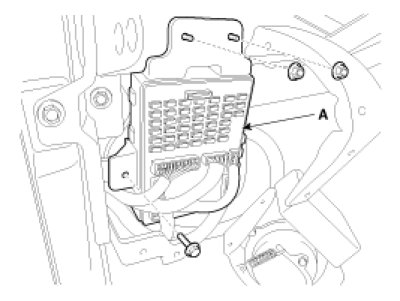

3. Remove the SJB (A) (Smart Junction Box) after removing bolt, nuts and connectors.






Installation

1. Install SJB (Smart Junction Box).
2. Connect the SJB connectors.
3. Install the crash pad lower panel.
