Ems Box

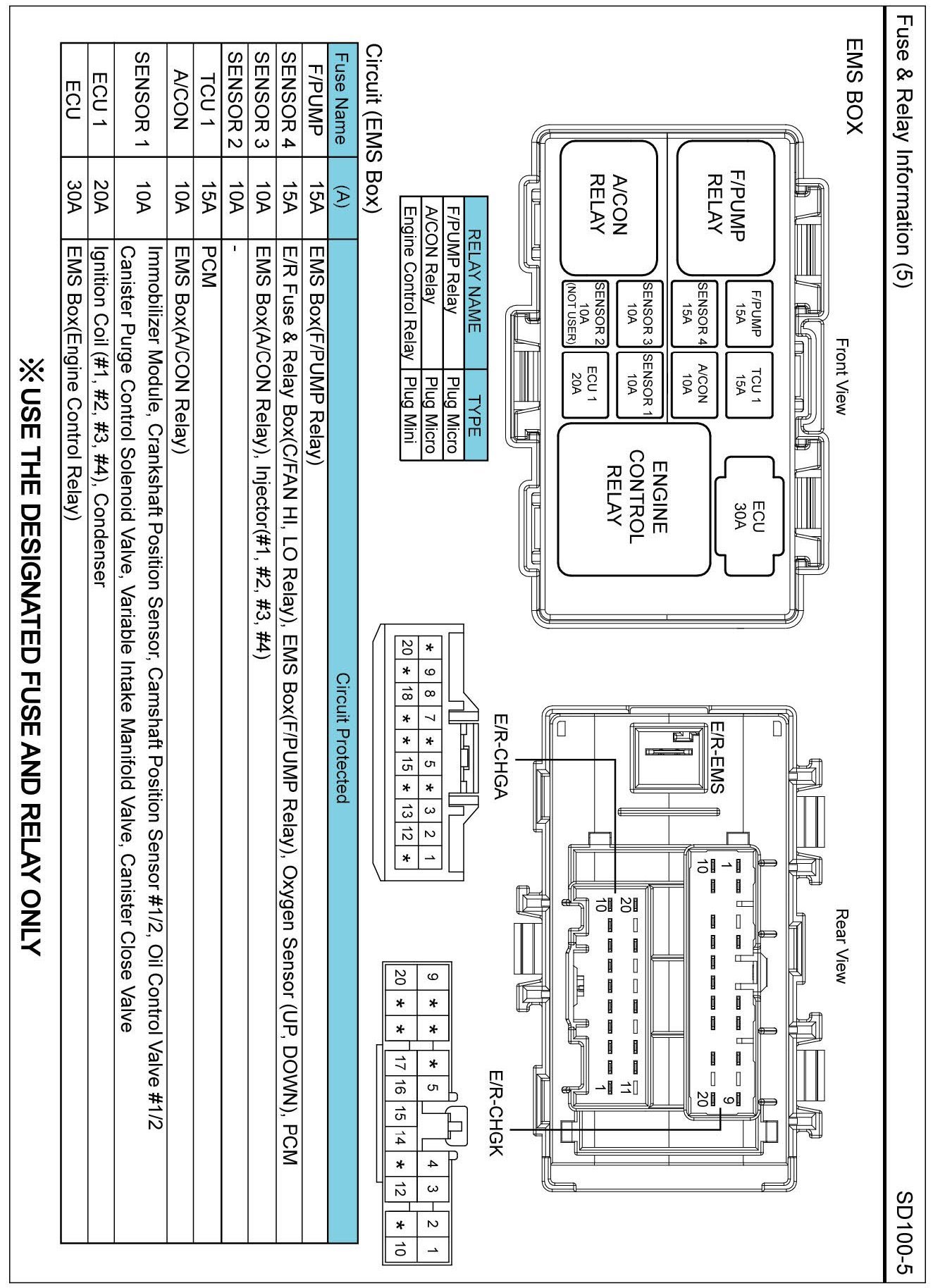

EMS Box


EMS Box:

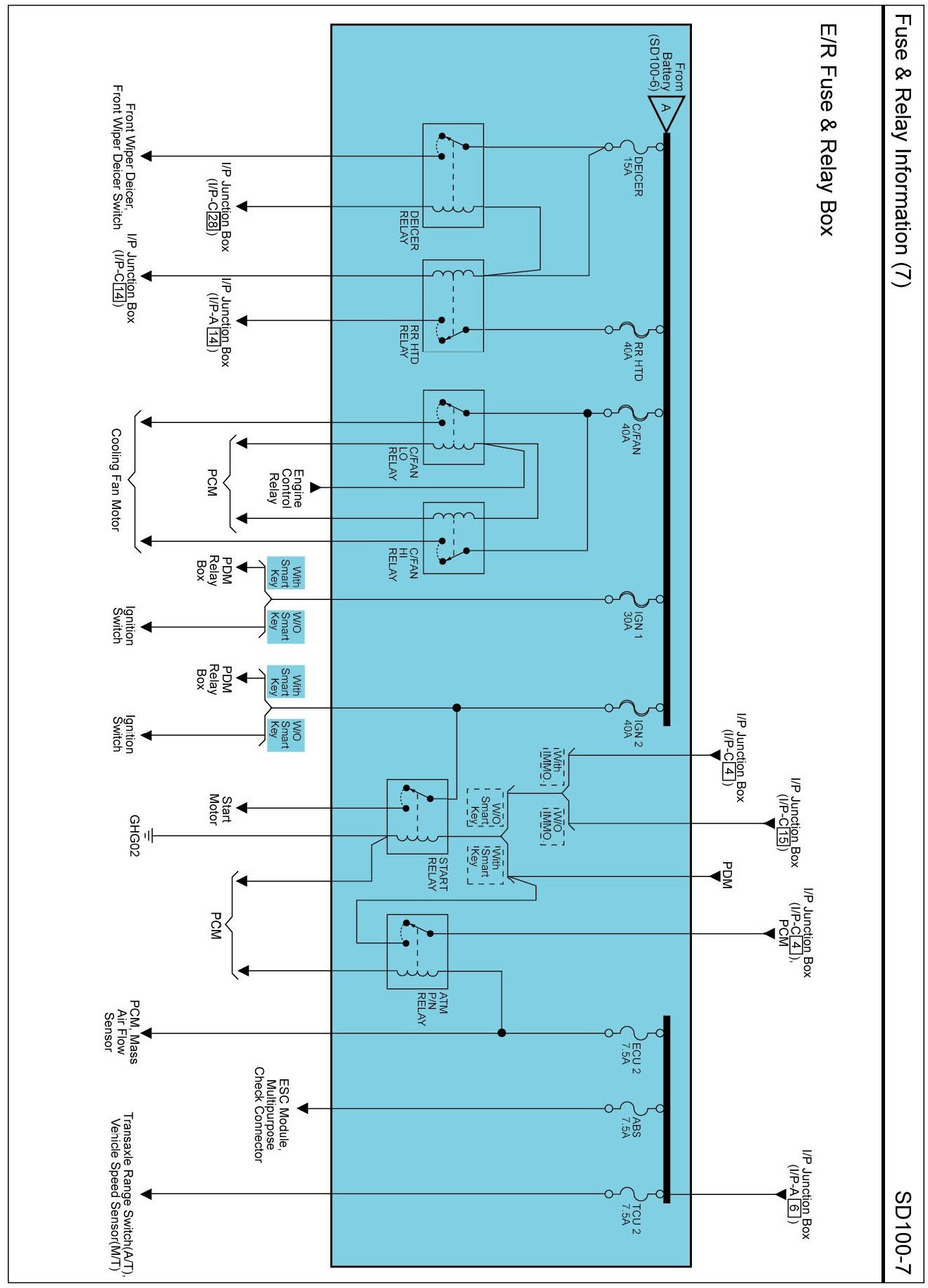

E/R Fuse & Relay Box


E/R Fuse & Relay Box View:

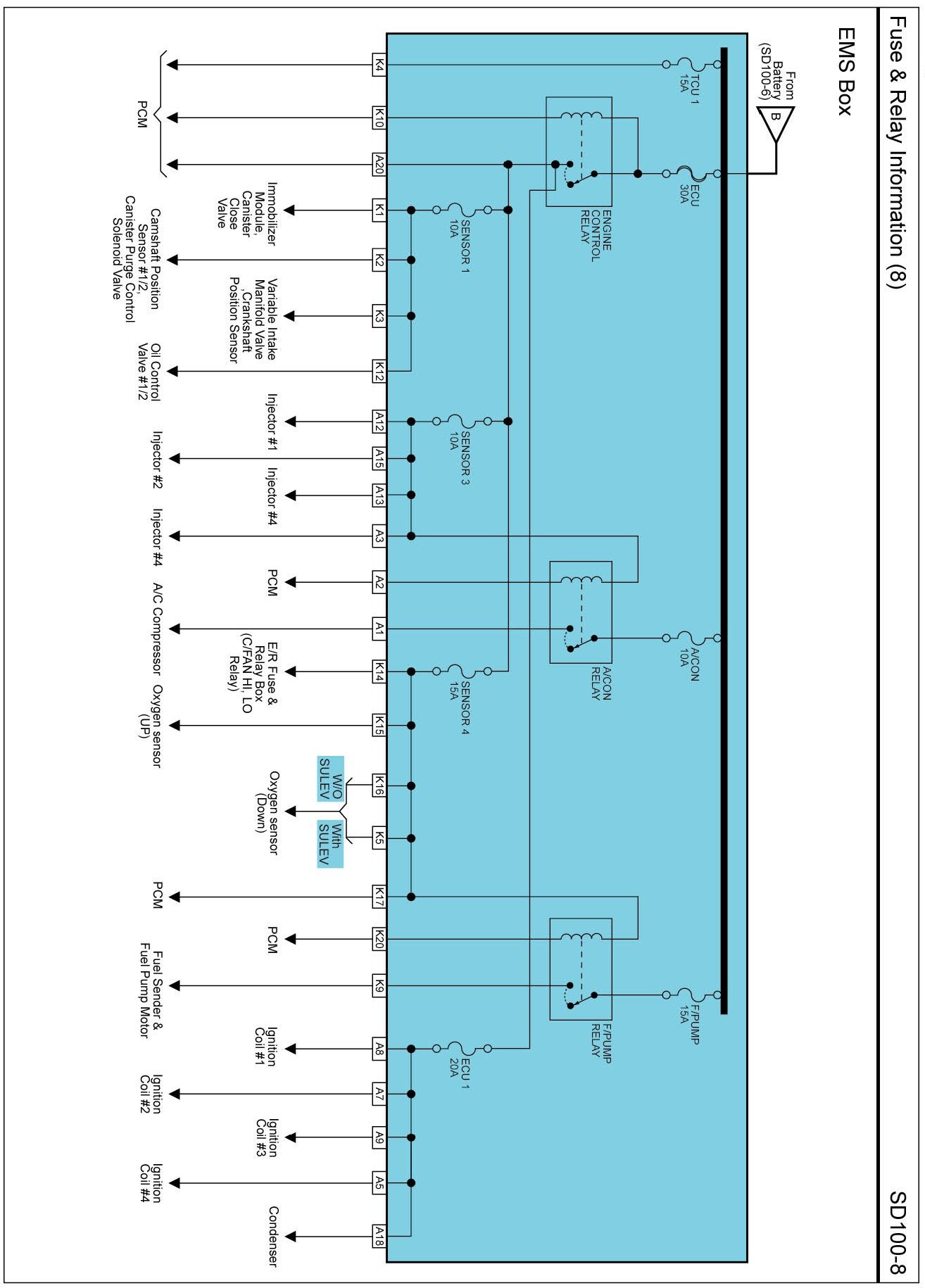

EMS Box


EMS Box View:
