Pinout Values and Diagnostic Parameters





ECM Terminal And Input/Output signal

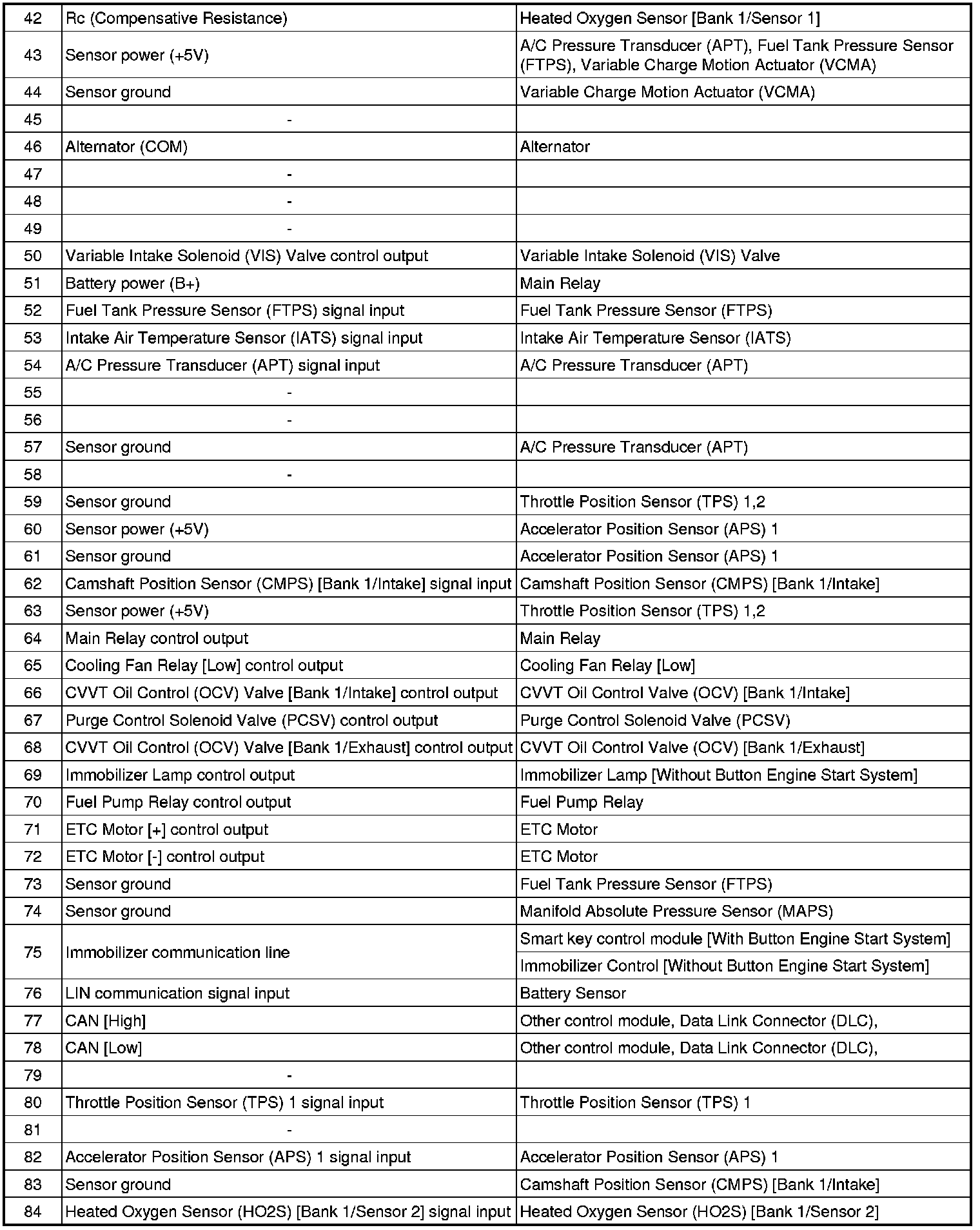

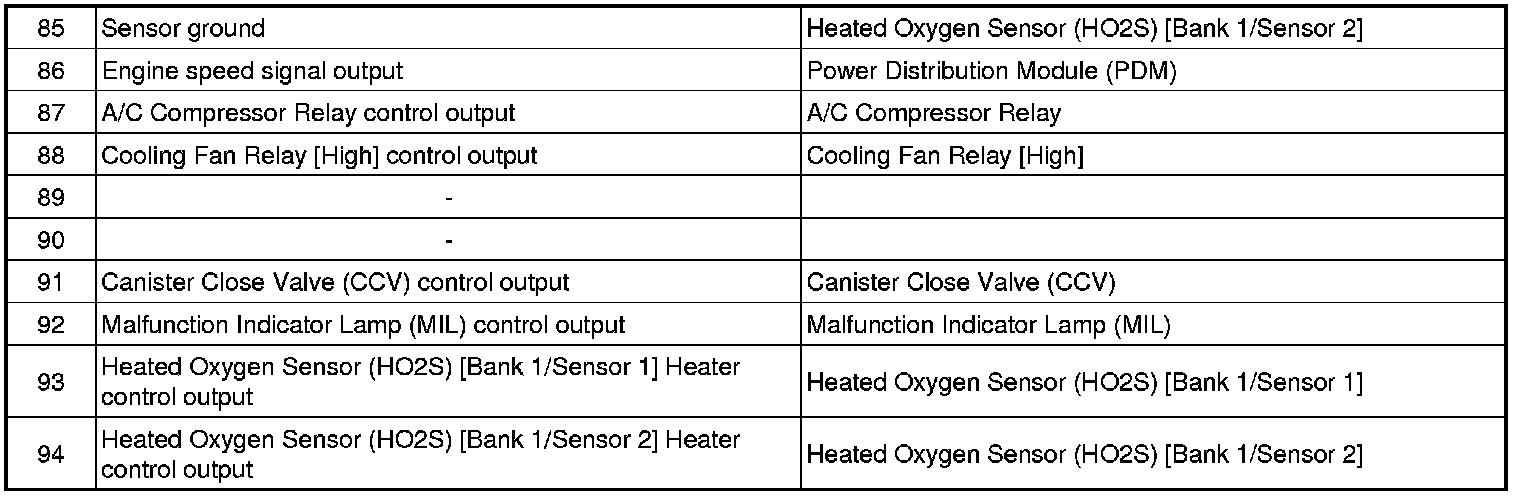

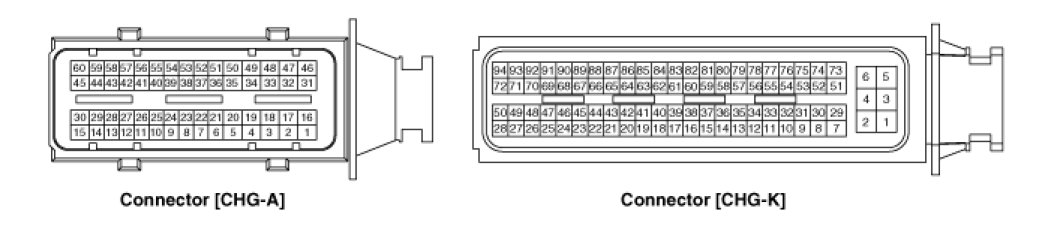

ECM Terminal Function

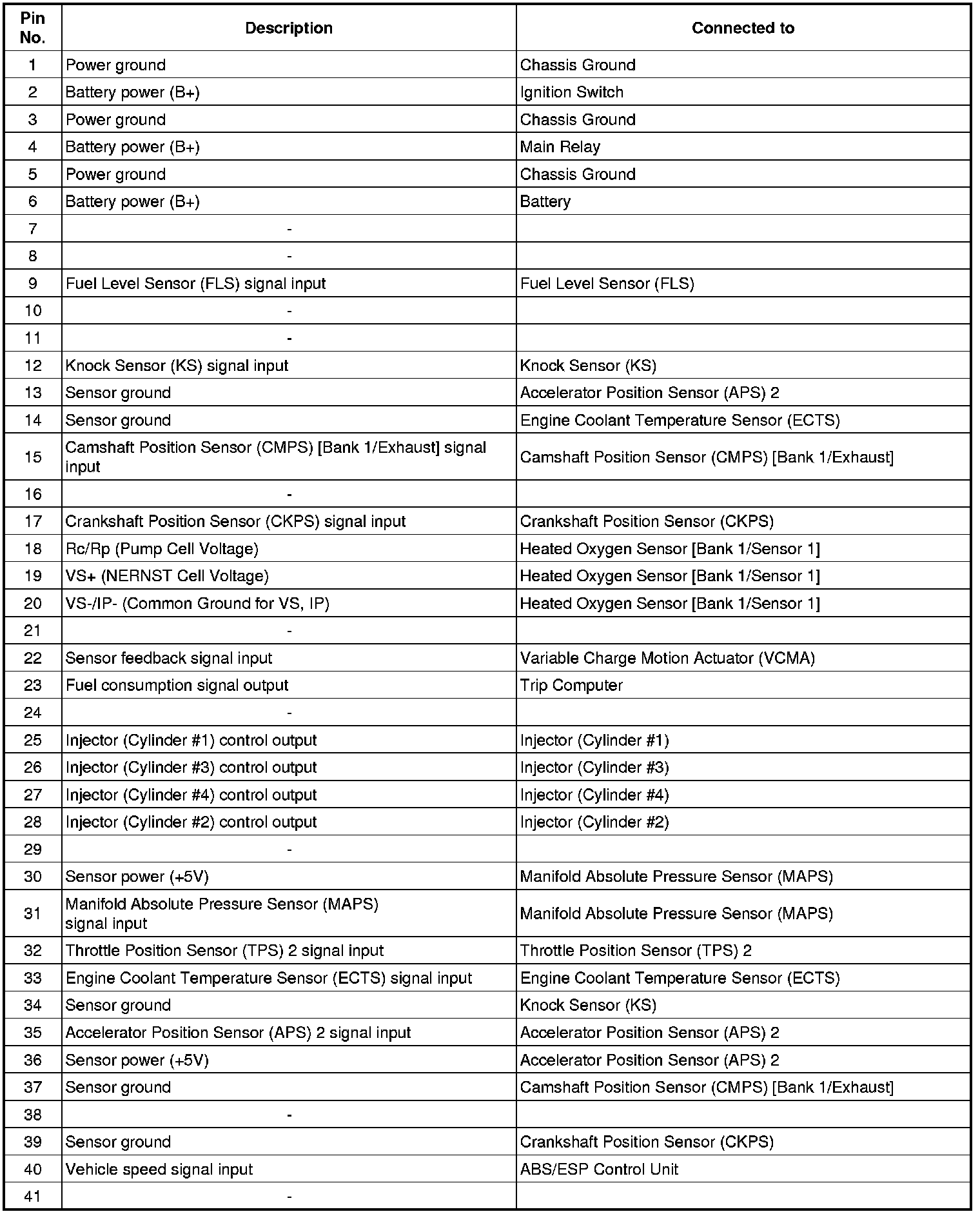

Connector [CHG-A]

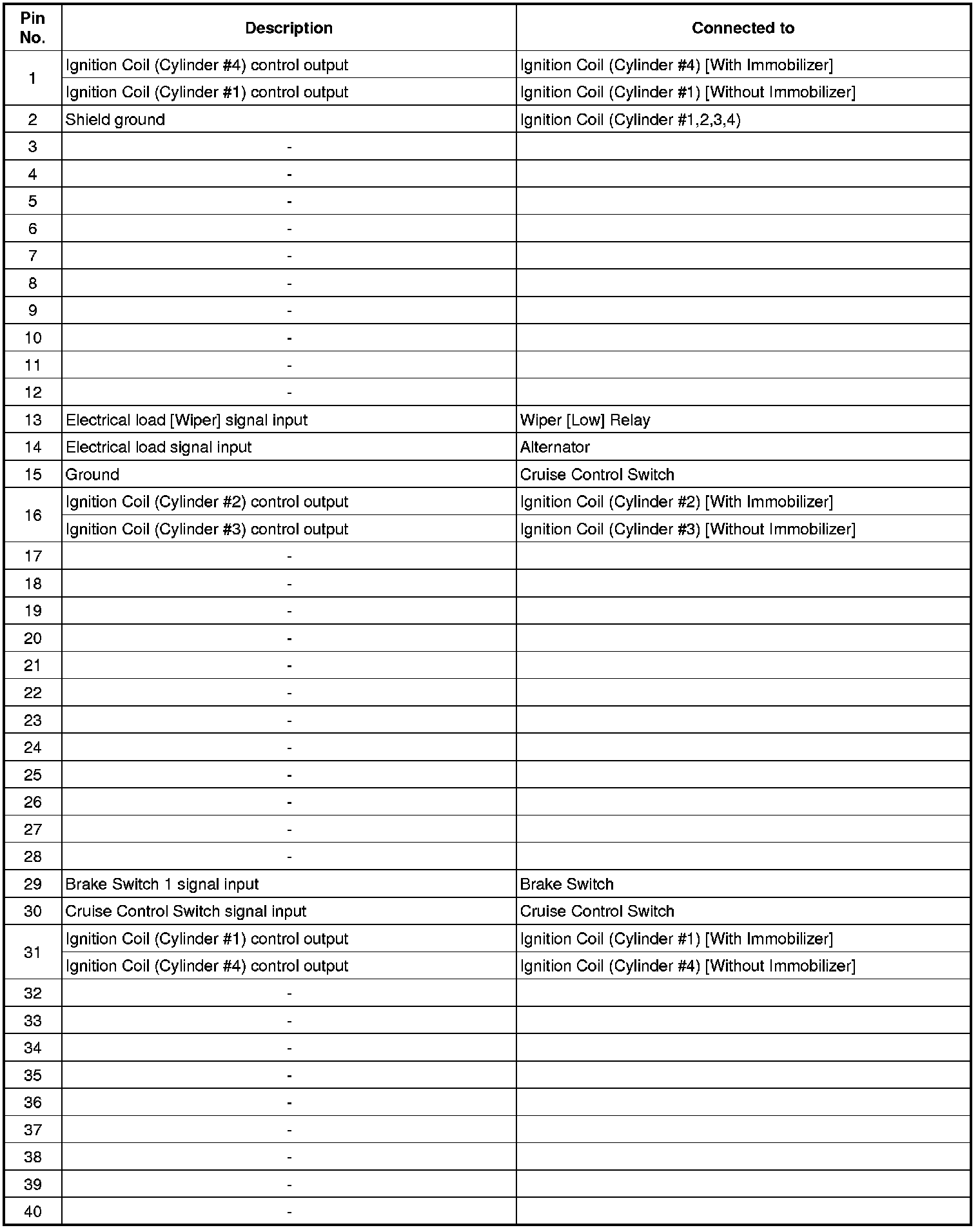

Connector [CHG-K]

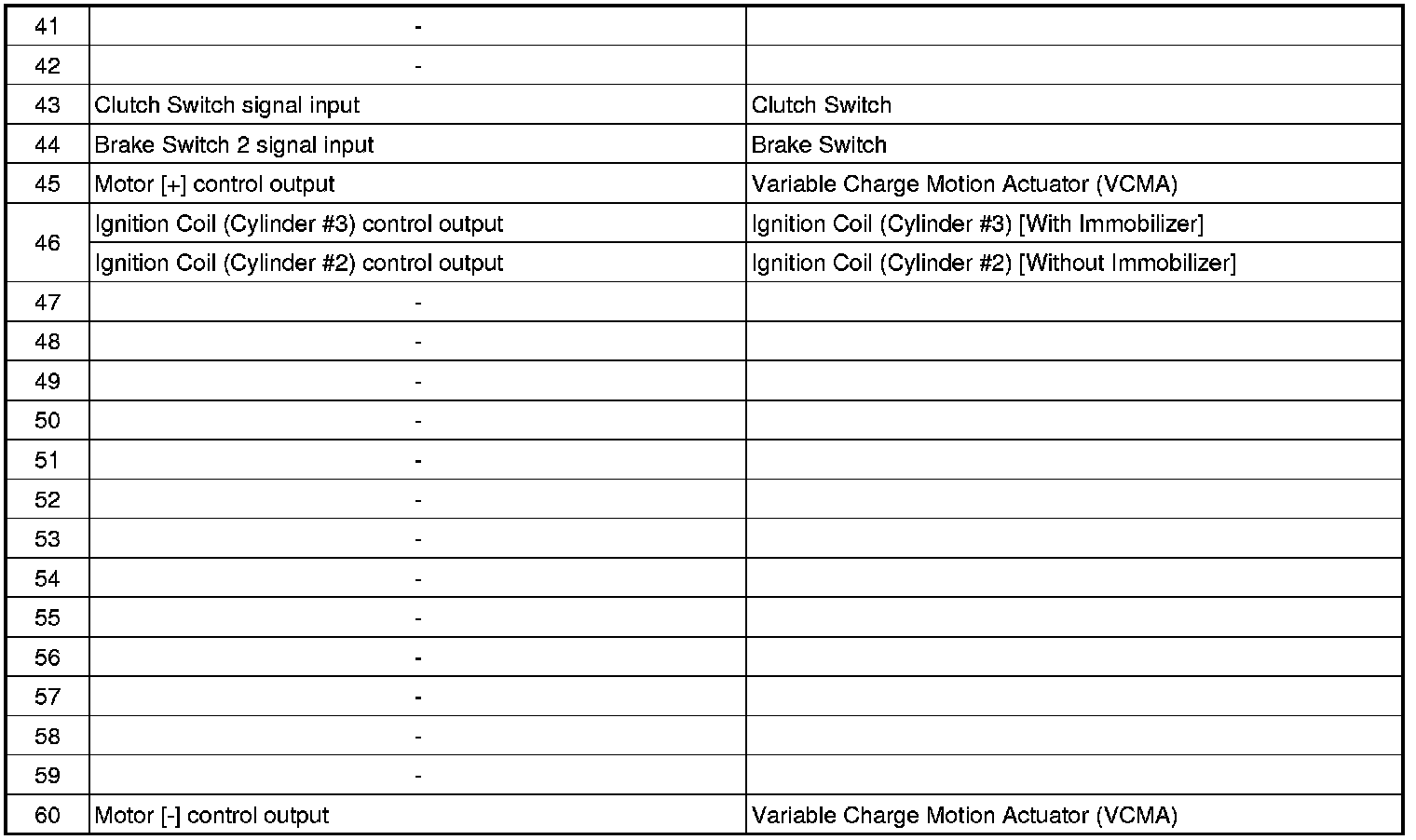

ECM Terminal Input/ Output signal

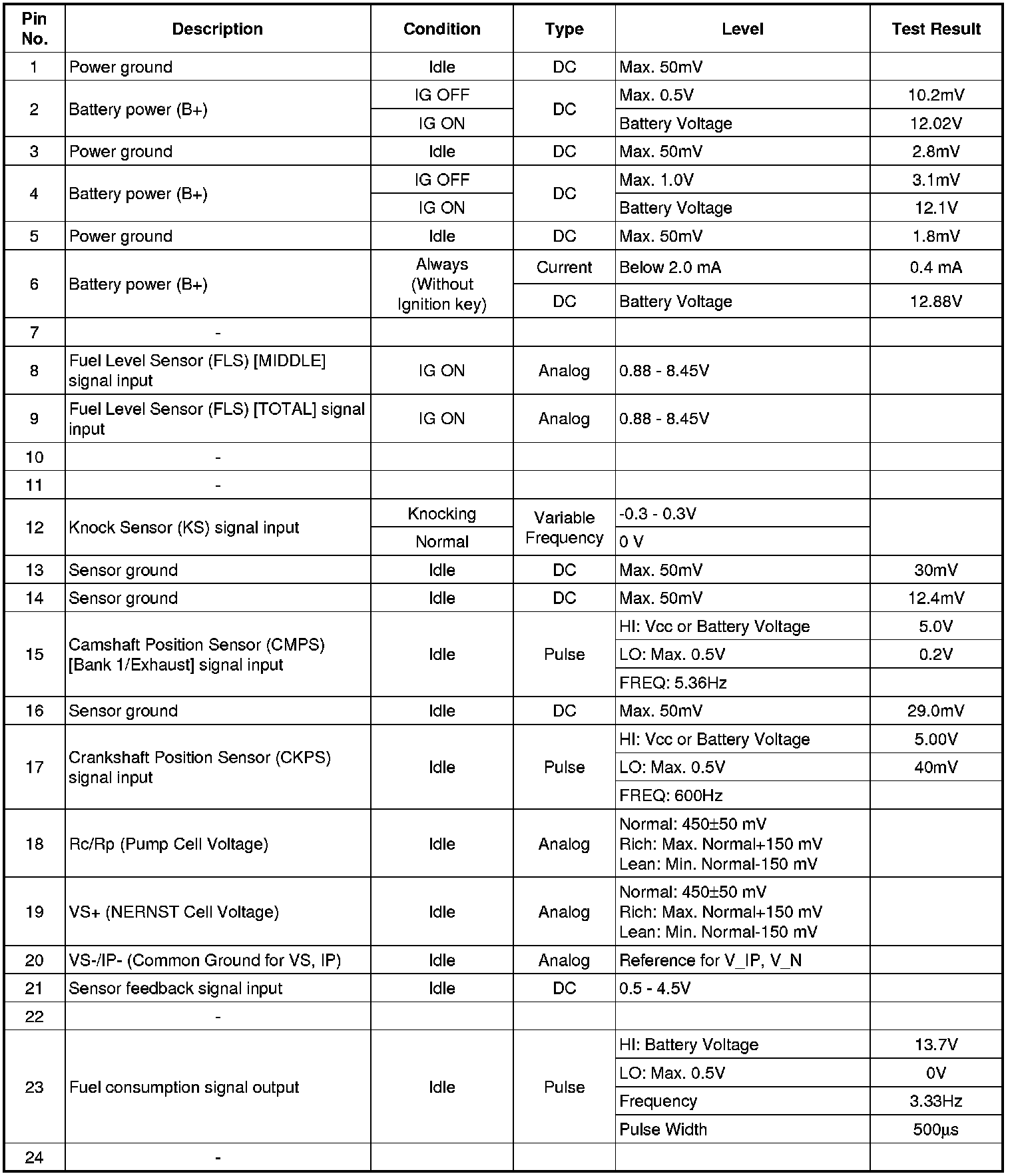

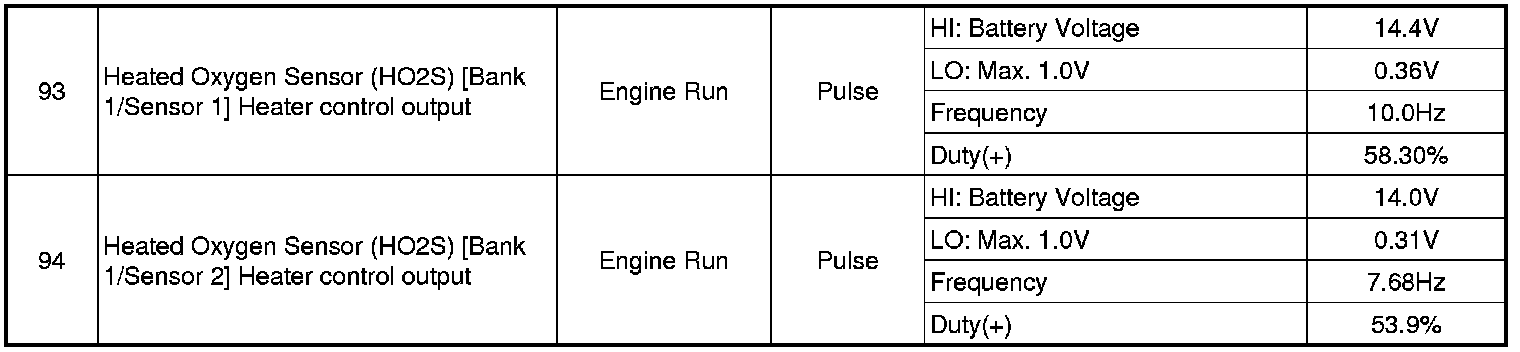

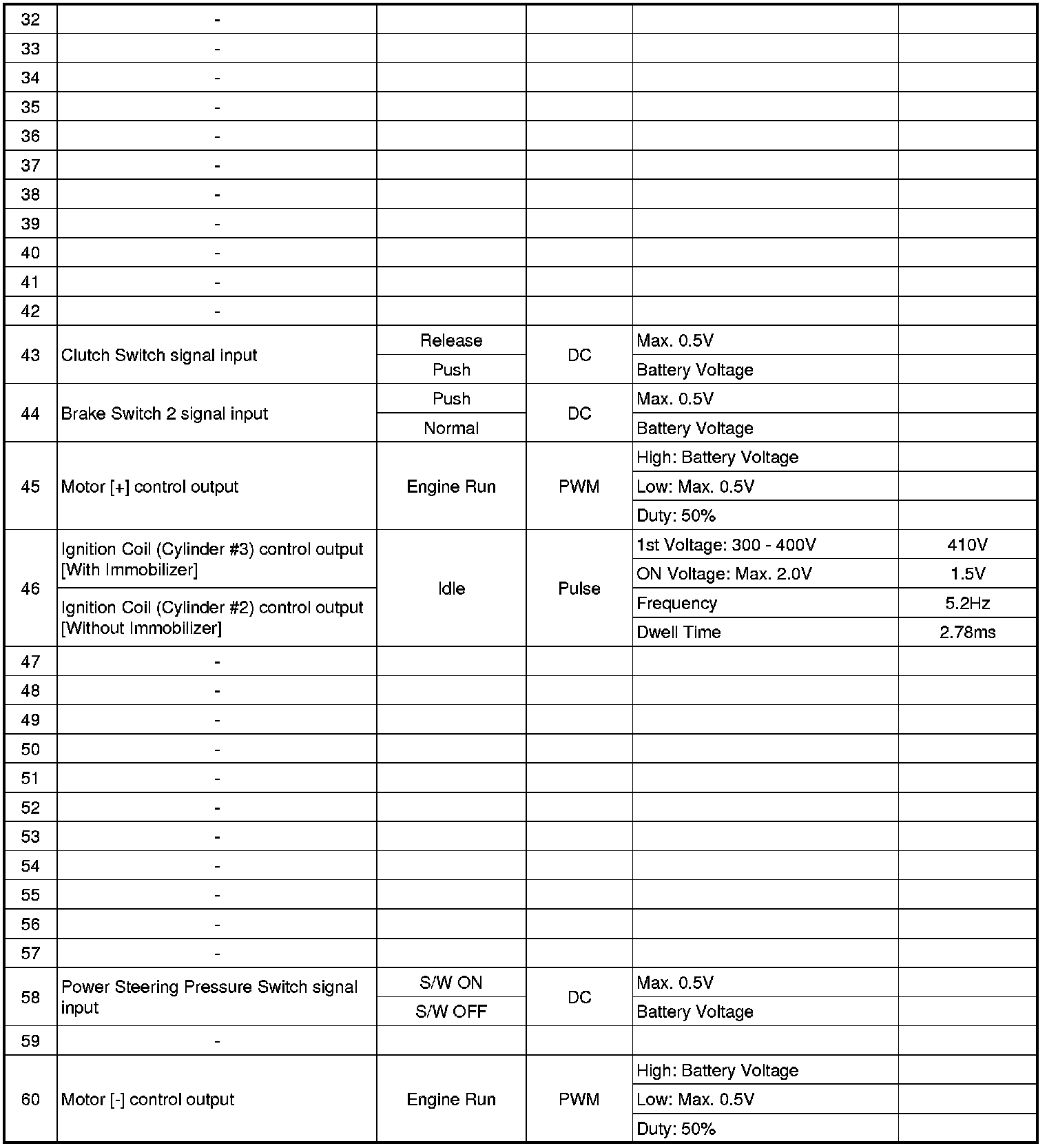

Connector [CHG-A]

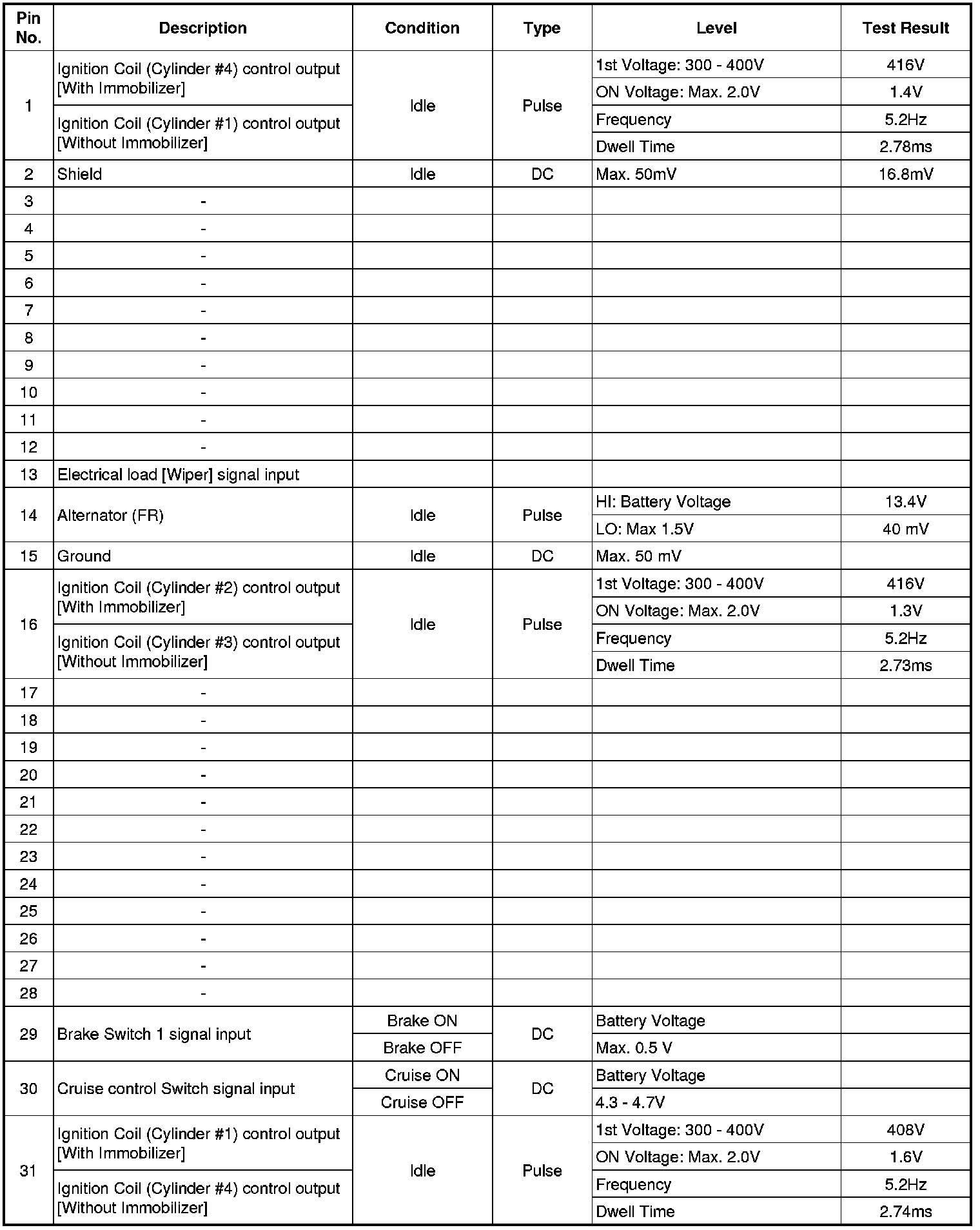

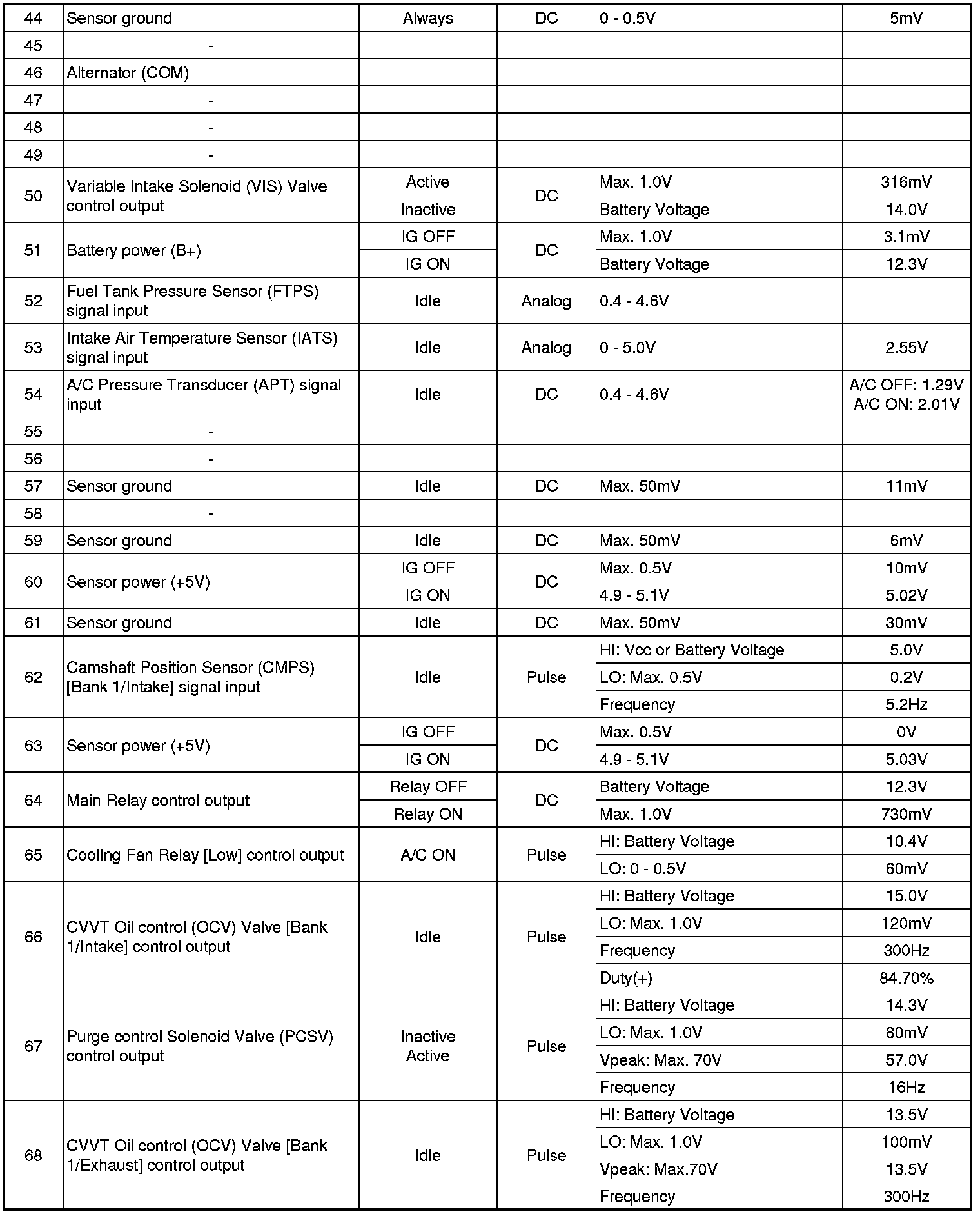

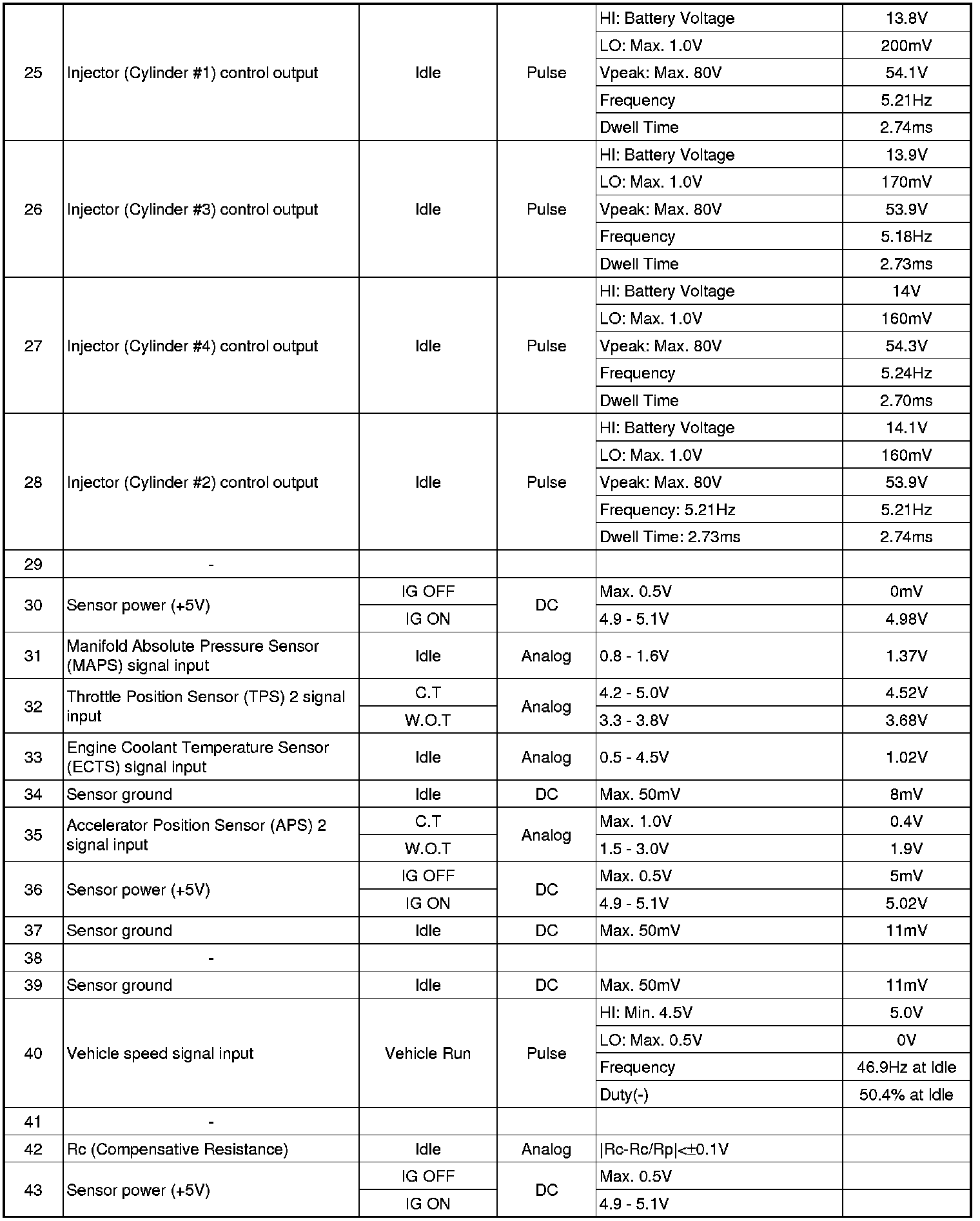

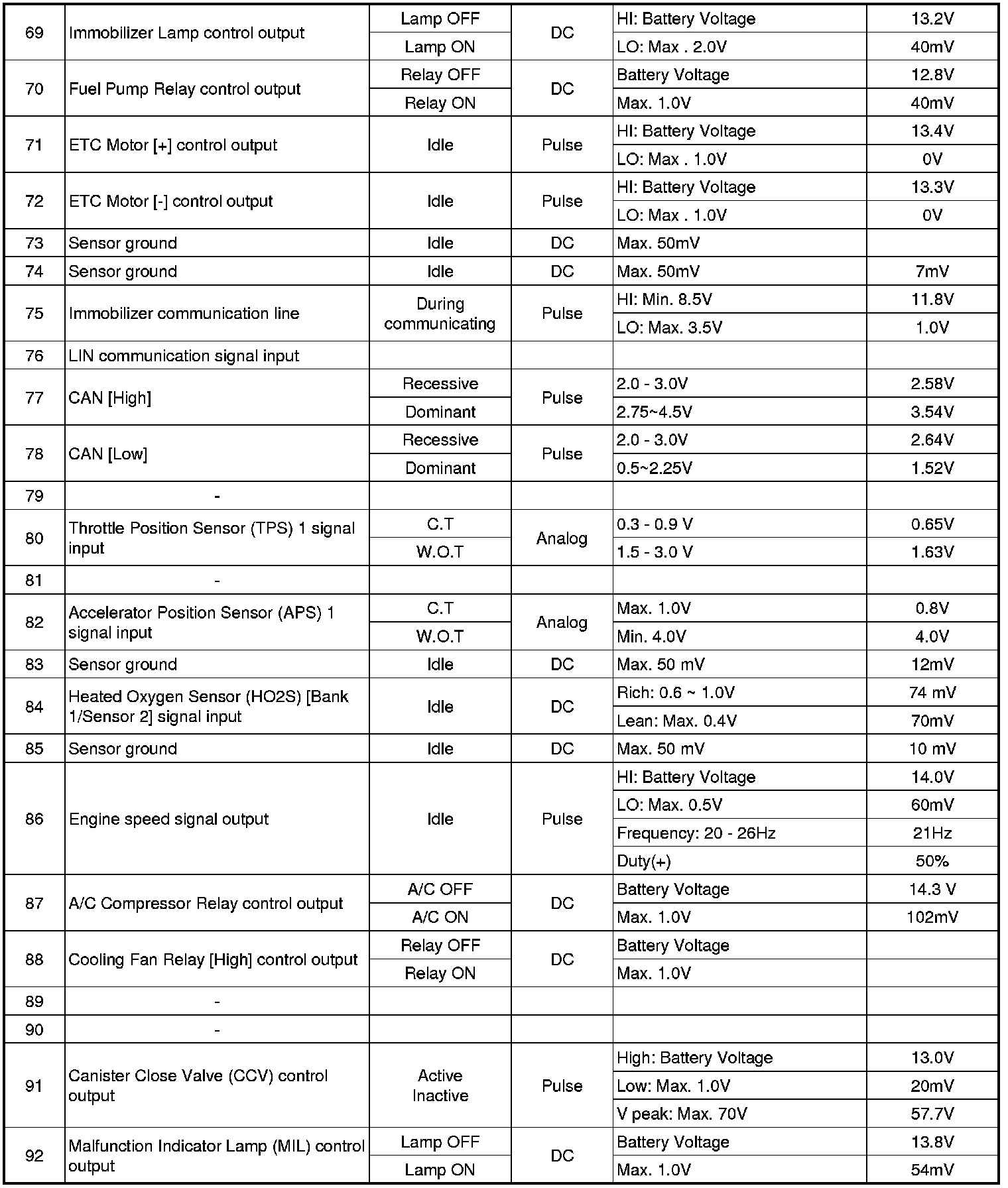

Connector [CHG-K]
