Leak Detection Valve: Service and Repair

Removal

1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
2. Lift the vehicle.

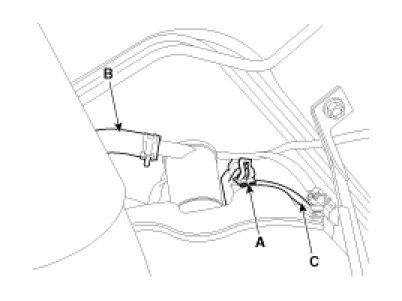

3. Disconnect the canister close valve connector (A).
4. Disconnect the ventilation hose (B,C) from the fuel tank air filter and canister close valve.

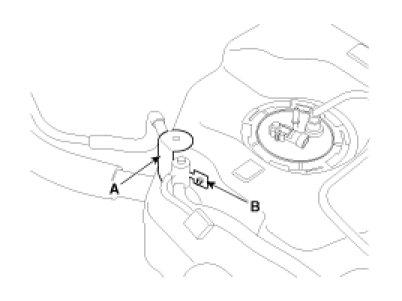

5. Remove the fuel tank air filter and canister close valve assembly (A) after removing the mounting nut (B).

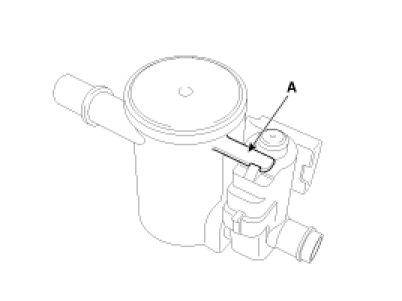

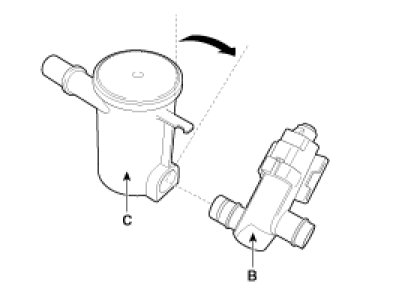

6. Release the lever (A), and then separate the canister close valve (B) from the fuel tank air filter (C) after rotating it in the direction of the arrow in the figure.










Installation

CAUTION:
- Install the component with the specified torques.
- Note that internal damage may occur when the component is dropped. In this case, use it after inspecting.

1. Installation is reverse of removal.

Canister close valve & fuel tank air filter bracket installation nut:
3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb-ft)
