Oil Pump, Engine





Components

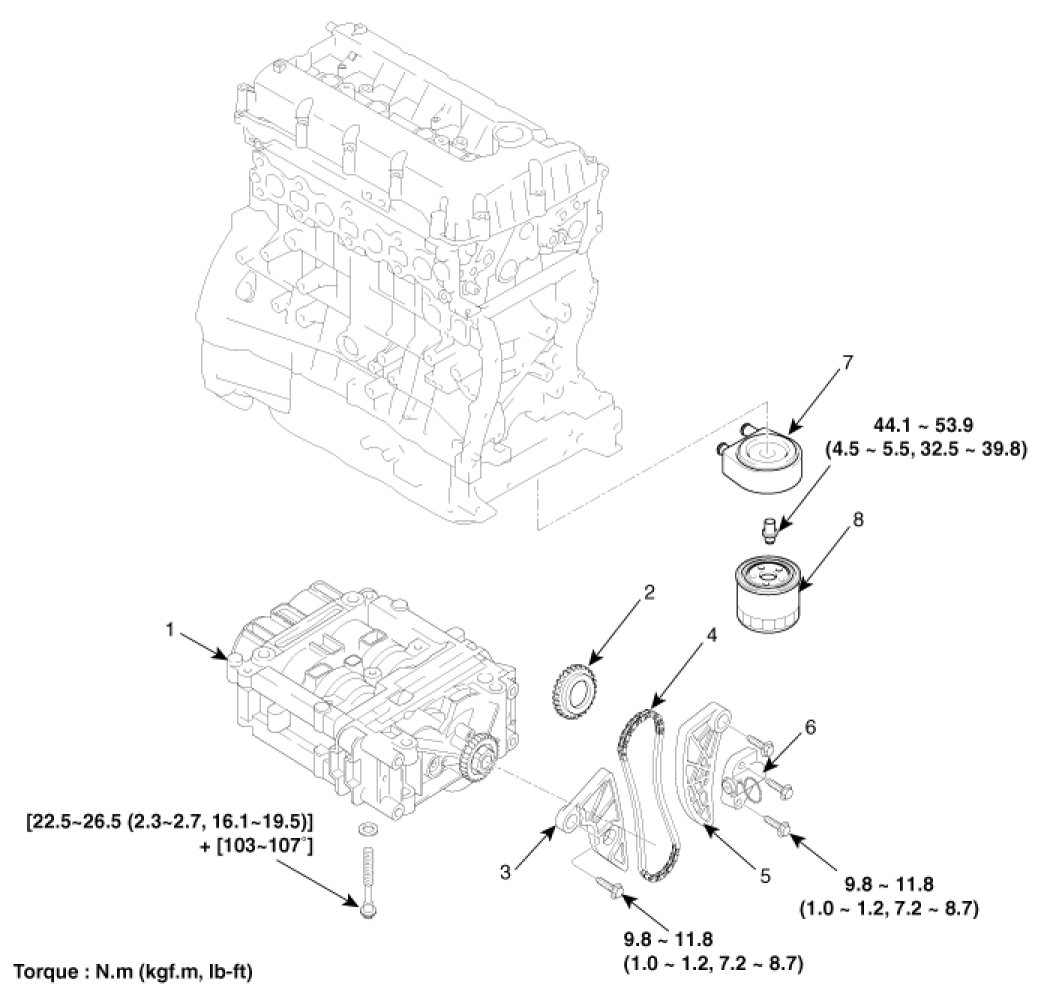

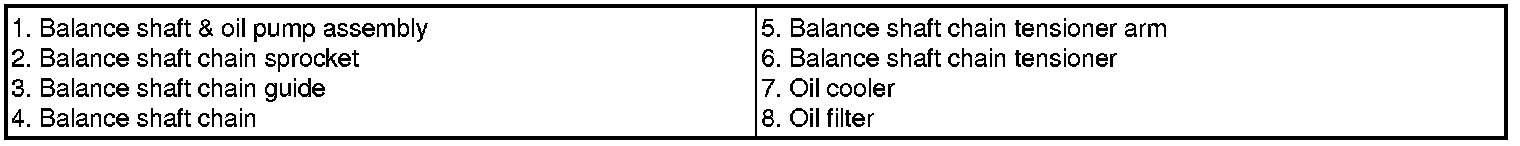

[2.4L Engine only (Balance shaft module type)]

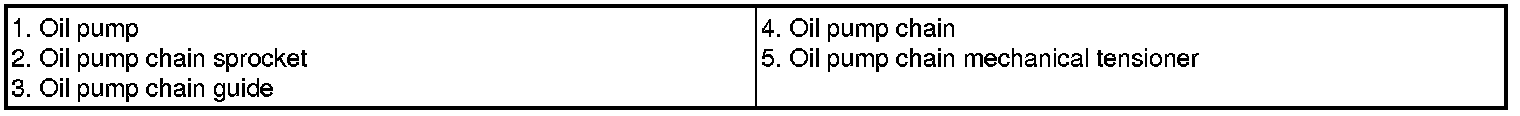

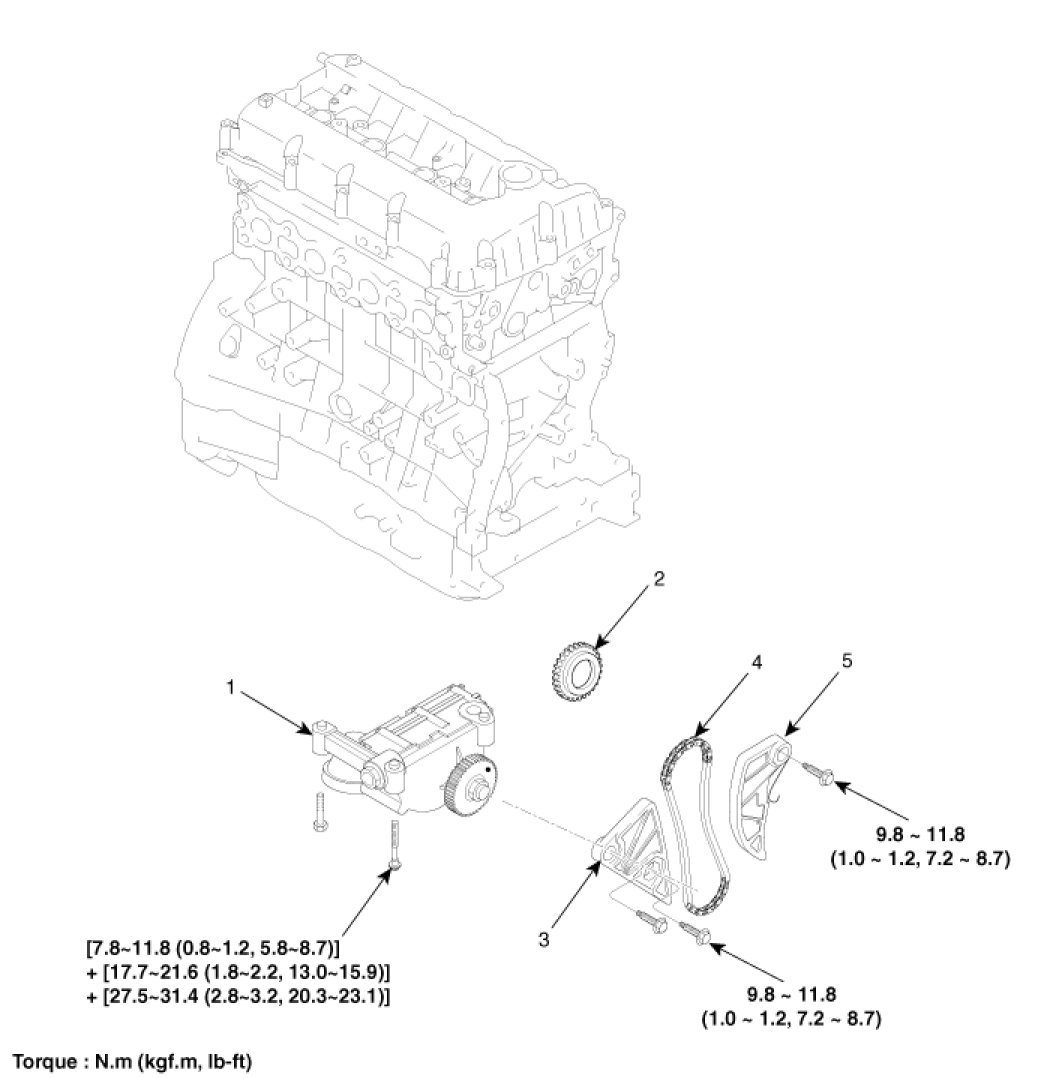

[2.0L Engine only (Oil pump type)]
