Repair Procedures

Removal and Installation

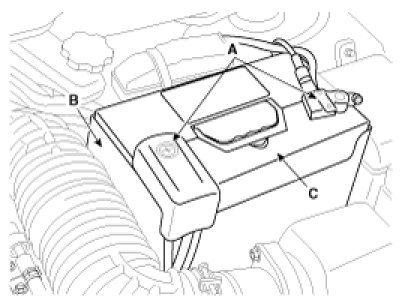

1. Disconnect the terminals (A) from the battery.
Disconnect negative battery terminal first.

Tightening torque:
(-) terminal : 4.0 - 6.0N.m (0.4 - 0.6kgf.m, 3.0 - 4.4lb-ft)
(+) terminal : 7.8 - 11.8N.m (0.8 - 1.2kgf.m, 5.8 - 8.7lb-ft)


2. Remove the battery insulation pad (B).
3. Remove the battery mounting bracket by loosening the mounting bolt and then remove the battery (C).

Tightening torque :
9.8 - 11.8N.m (1.0 - 1.2kgf.m, 7.2 - 8.7lb-ft)

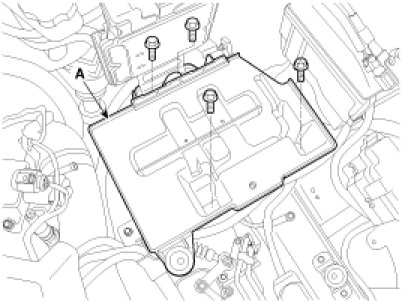

4. Remove the battery tray (A).

Tightening torque :
9.8 - 11.8N.m (1.0 - 1.2kgf.m, 7.2 - 8.7lb-ft)





5. Installation is the reverse order of removal.
Reconnecting the negative battery terminal last.

CAUTION:
When installing the battery, fix the mounting bracket on the tray correctly.
