General Information

Battery Test Procedure

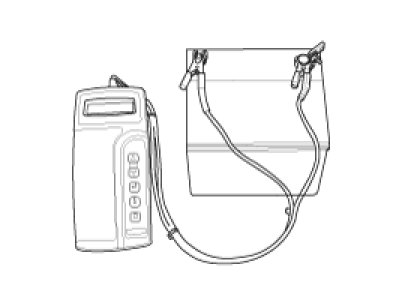

1. Connect the tester to the battery.
A. Red clamp to battery positive (+) terminal.
B. Black clamp to battery negative (-) terminal.





CAUTION:
Connect clamps securely. If "CHECK CONNECTION" message is displayed on the screen, reconnect clamps securely.

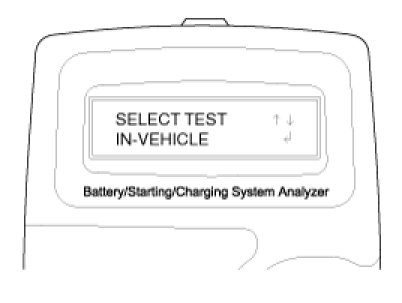

2. The tester will ask if the battery is connected "IN-VEHICLE" or "OUT-OF-VEHICLE". Make your selection by pressing the arrow buttons; then press ENTER.

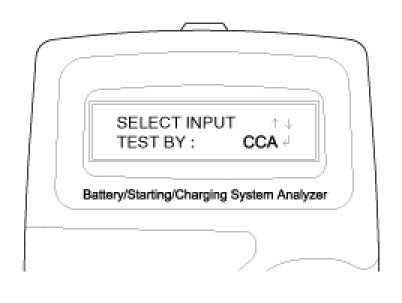

3. Select CCA and press the ENTER button.





NOTE:
CCA : Cold cranking amps, is an SAE specification for cranking batteried at -0.4°F (-18°C).

4. Set the CCA value displayed on the screen to the CCA value marked on the battery label by pressing up and down buttons and press ENTER.





NOTE:
The battery ratings(CCA) displayed on the tester must be identical to the ratings marked on battery label.

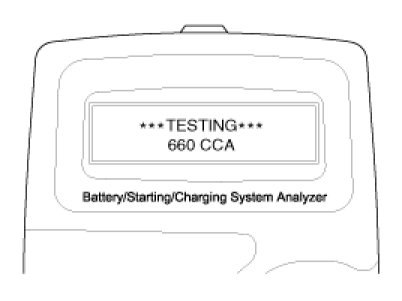

5. The tester will conduct battery test.

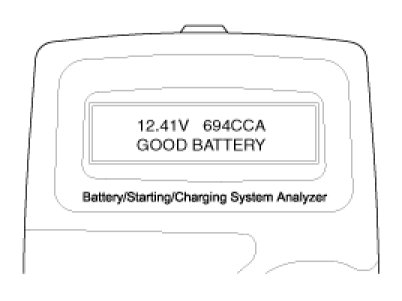

6. The tester displays battery test results including voltage and battery ratings.
A relevant action must be given according to the test results by referring to the battery test results as shown in the table below.




7. To conduct starter test, continuously, press ENTER.

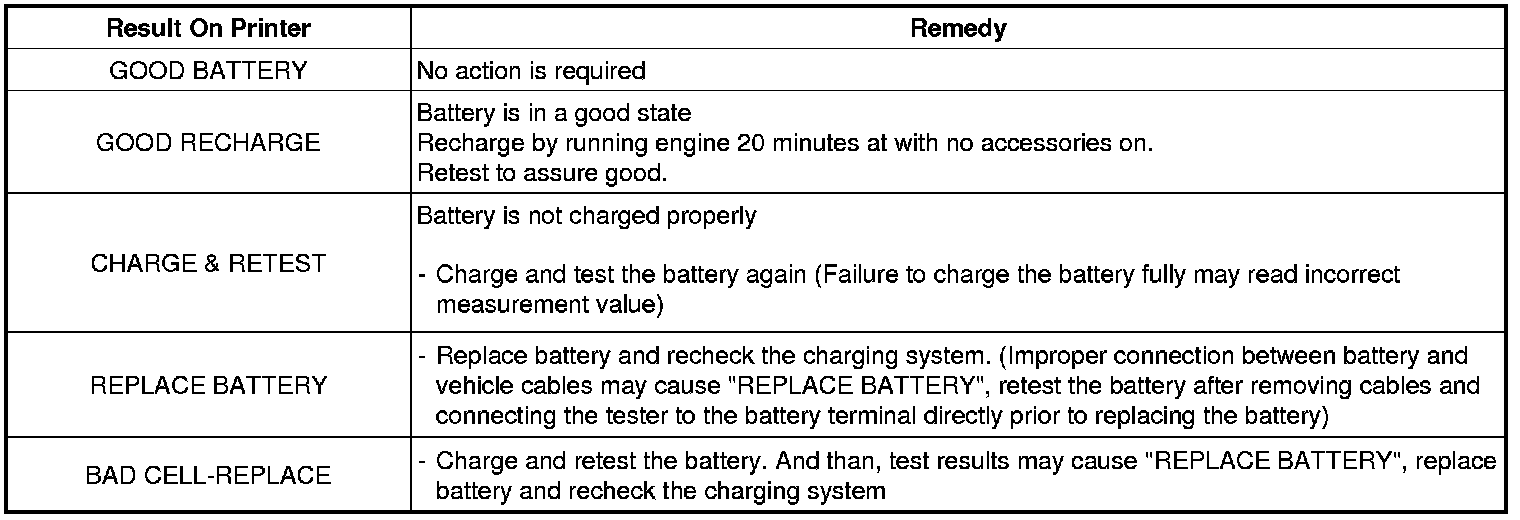

Battery Test Results






WARNING:
Whenever filing a claim for battery, the print out of the battery test results must be attached.
