Button Engine Start System

Inspection

PDM Diagnosis With GDS
1. It will be able to diagnose defects of Smart key with GDS quickly. GDS can operates actuator forcefully, input/output value monitoring and self diagnosis.

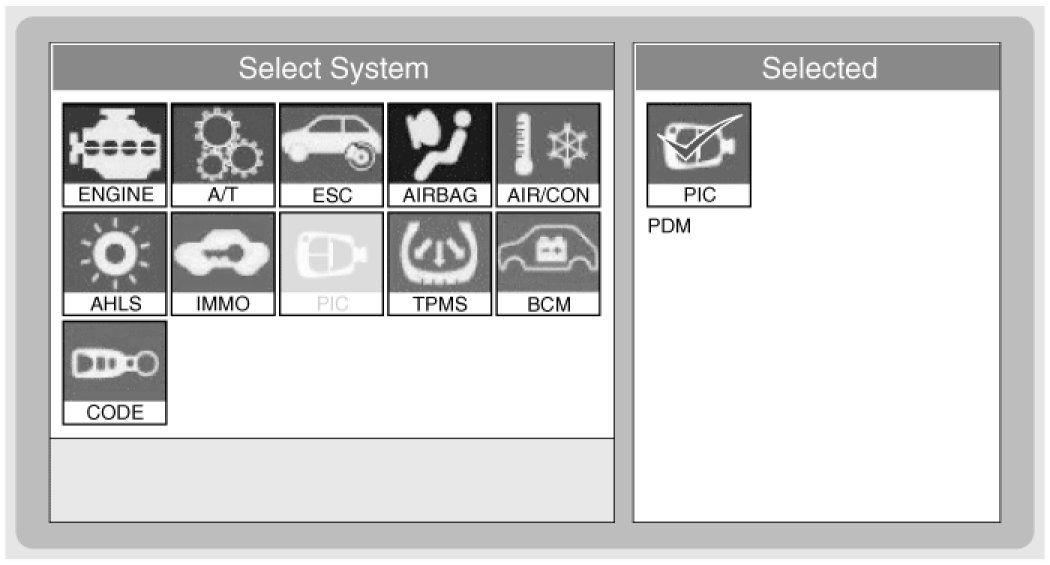

2. Select model and "Smart key system(Button start)" menu if you want to check PDM.




3. Select "PDM" in the manu.

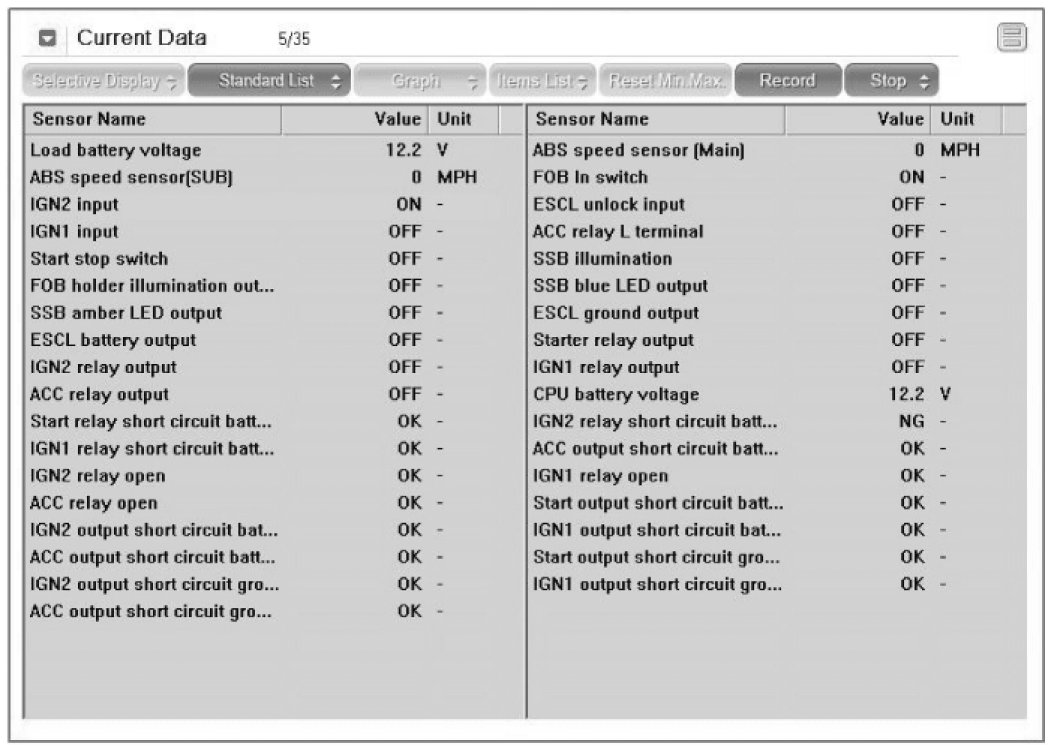

4. Select "Current Data", if you want to check current data of PDM.
It provides the input/output status of each module.

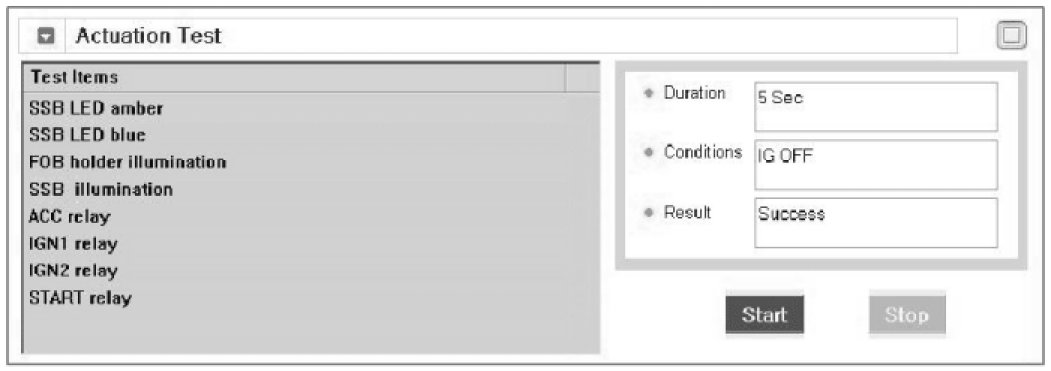

5. If you want to check PDM data operation forcefully, select "Actuation test".
