Recall 101 - Rear Reflector Replacement: Overview

NUMBER
11-01-015

MODEL(S)
2010 TUCSON (LM)

GROUP
CAMPAIGN

DATE
MAY, 2011

SUBJECT
TUCSON (LM) REAR REFLECTOR REPLACEMENT (CAMPAIGN 101)

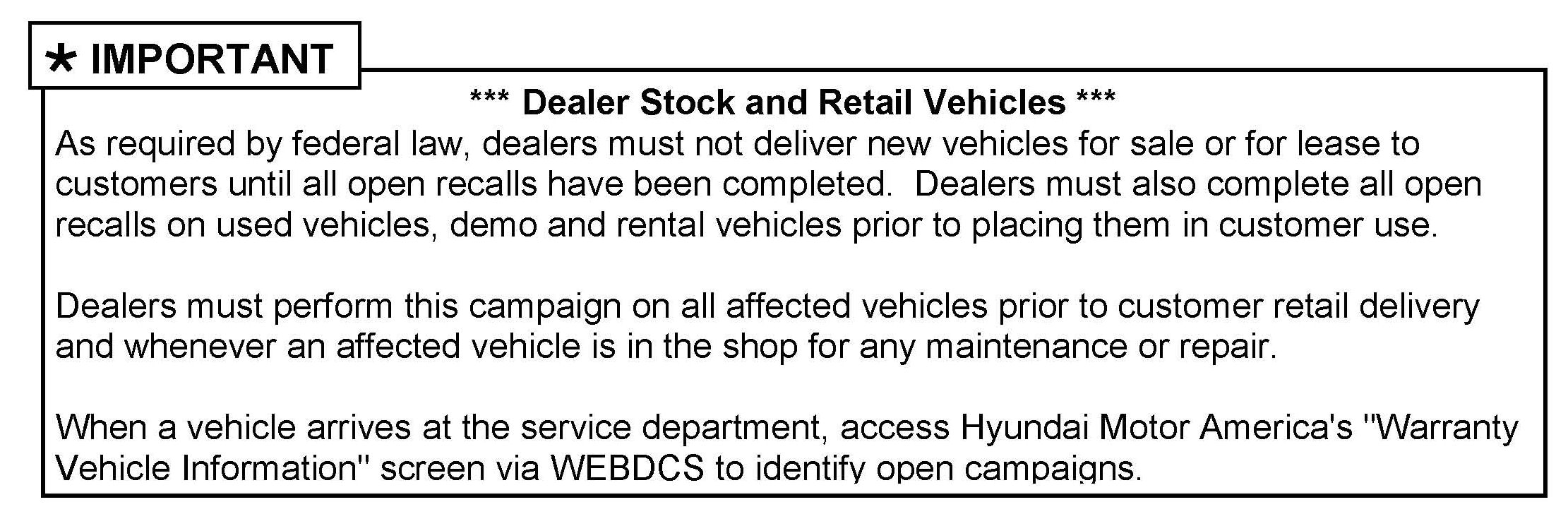

IMPORTANT





Description:
This bulletin provides information related to a recall on some 2010 MY TUCSON (LM) vehicles to replace the rear reflectors. The reflecting performance of rear reflectors may decrease by improper rear reflector lens.

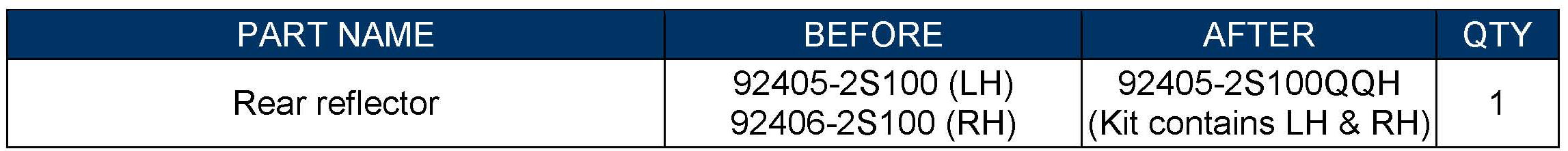

Parts Information:

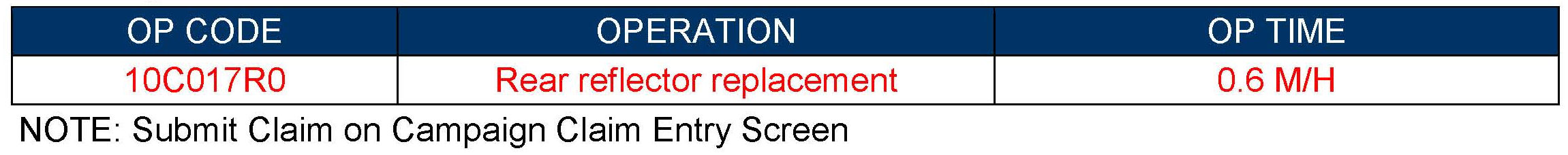

Warranty Information:

Service Procedure:





1. Verify that the vehicle has an open Recall 101 by accessing the "Warranty Vehicle Information in WEBDCS.

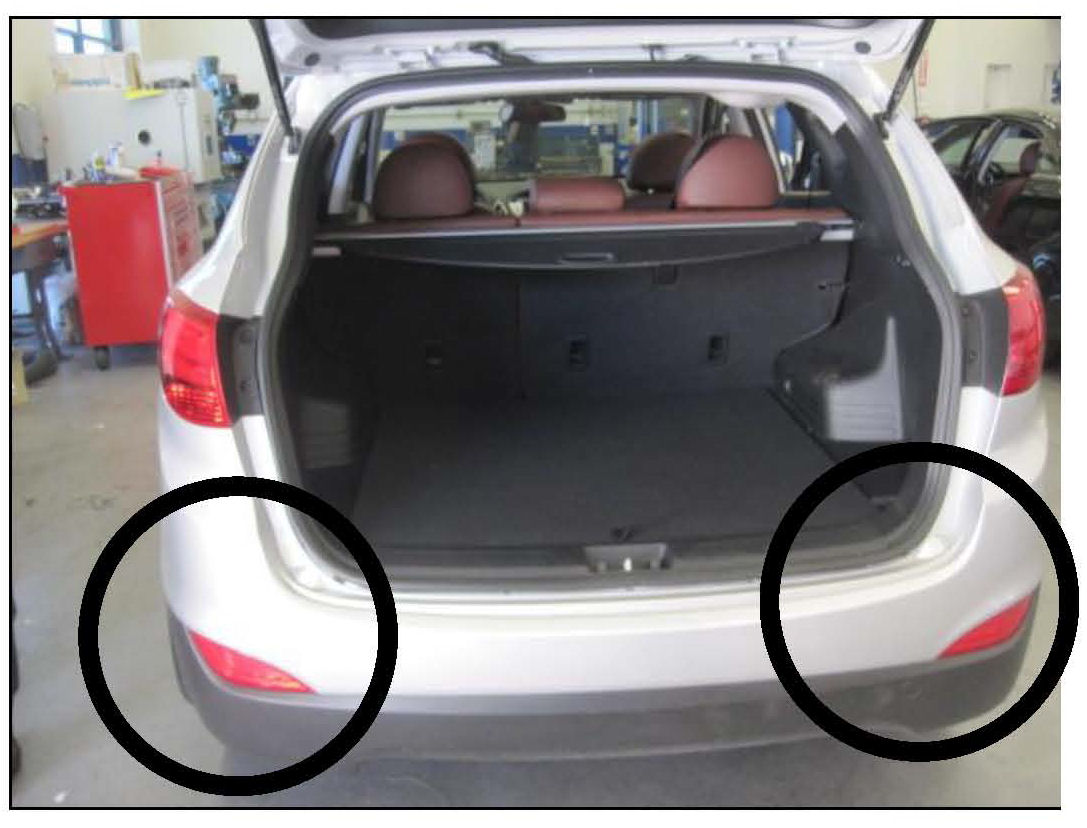

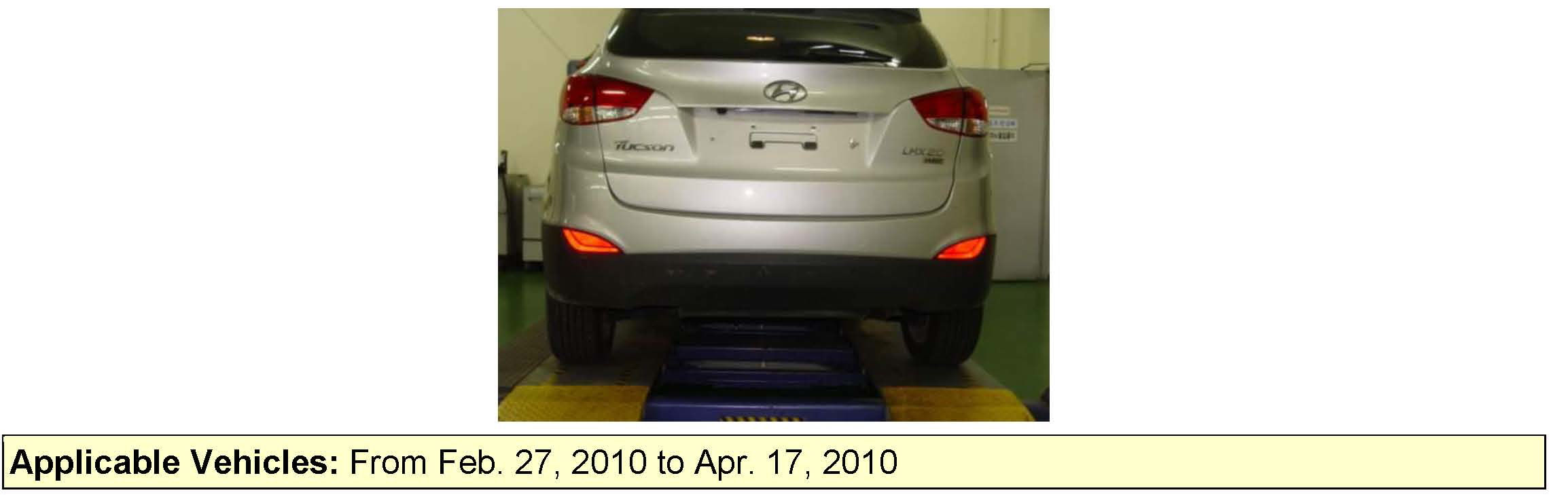

Locate the rear reflectors.

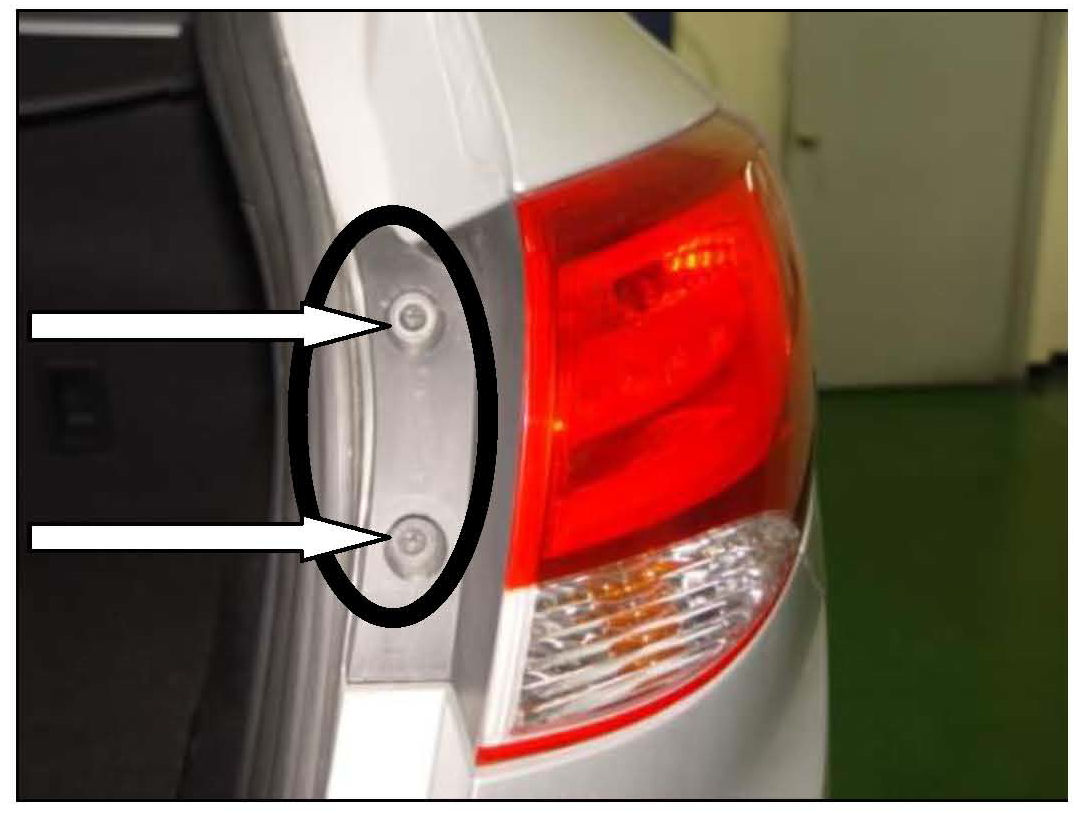

2. Remove the rear combination lamp mounting screws (LH/RH).

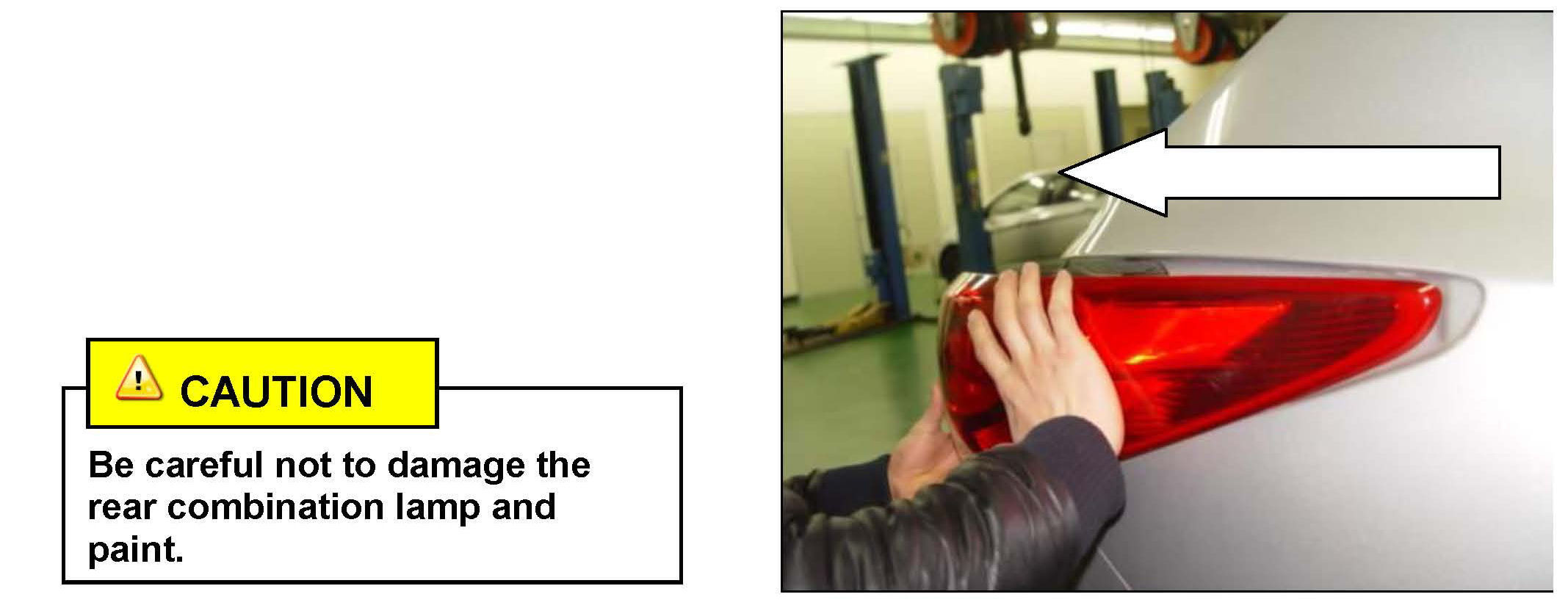

3. Push/pull the rear combination lamp rearward and remove it (LH/RH).

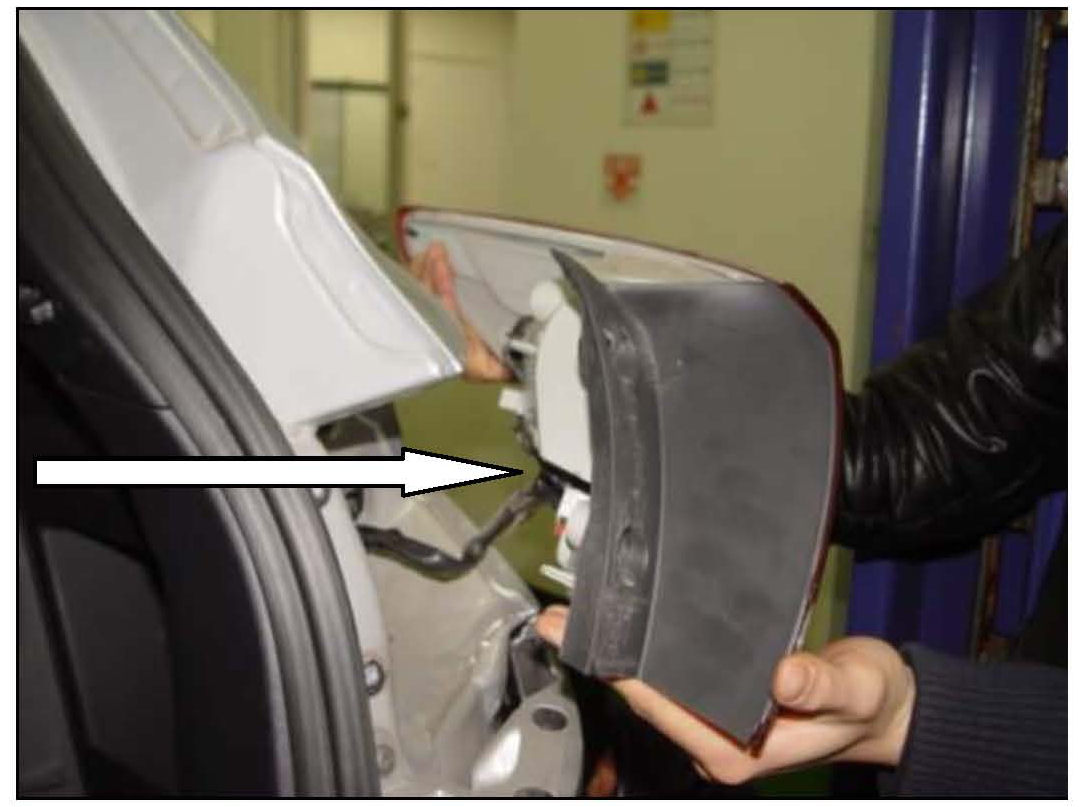

4. Disconnect the rear combination lamp connector and remove the rear combination lamp (LH/RH).

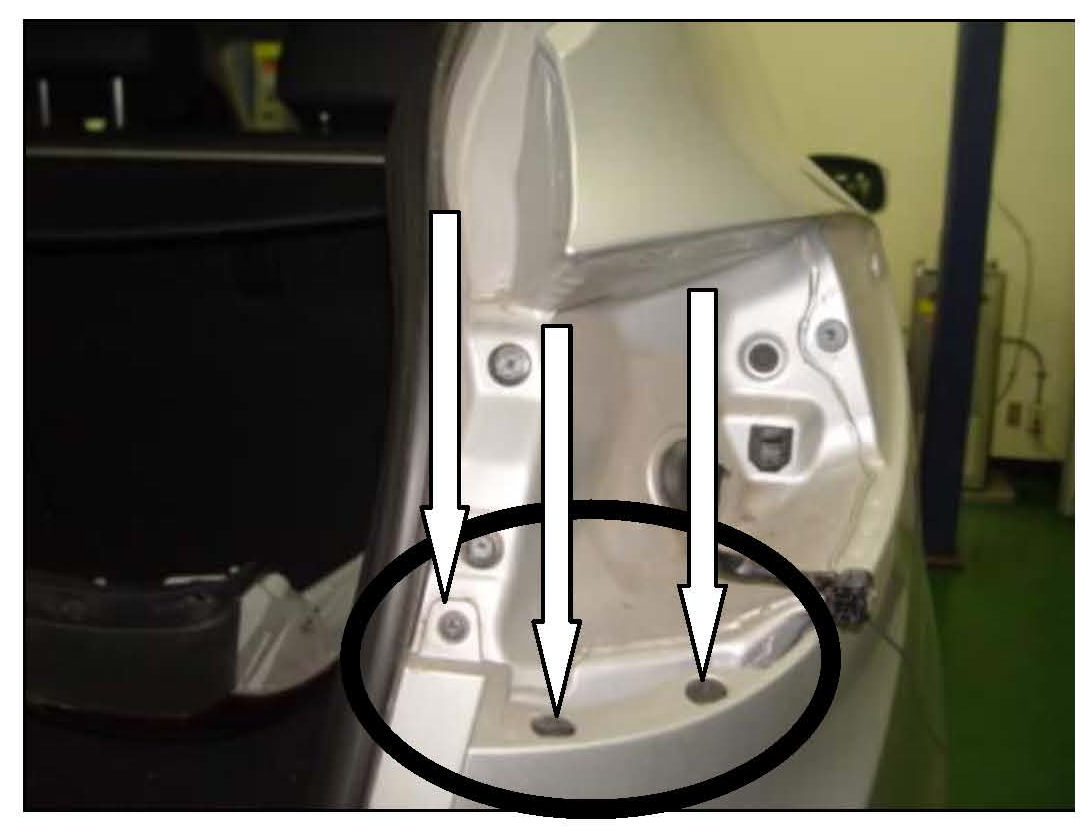

5. Remove the rear bumper upper screw and clips (LH/RH).

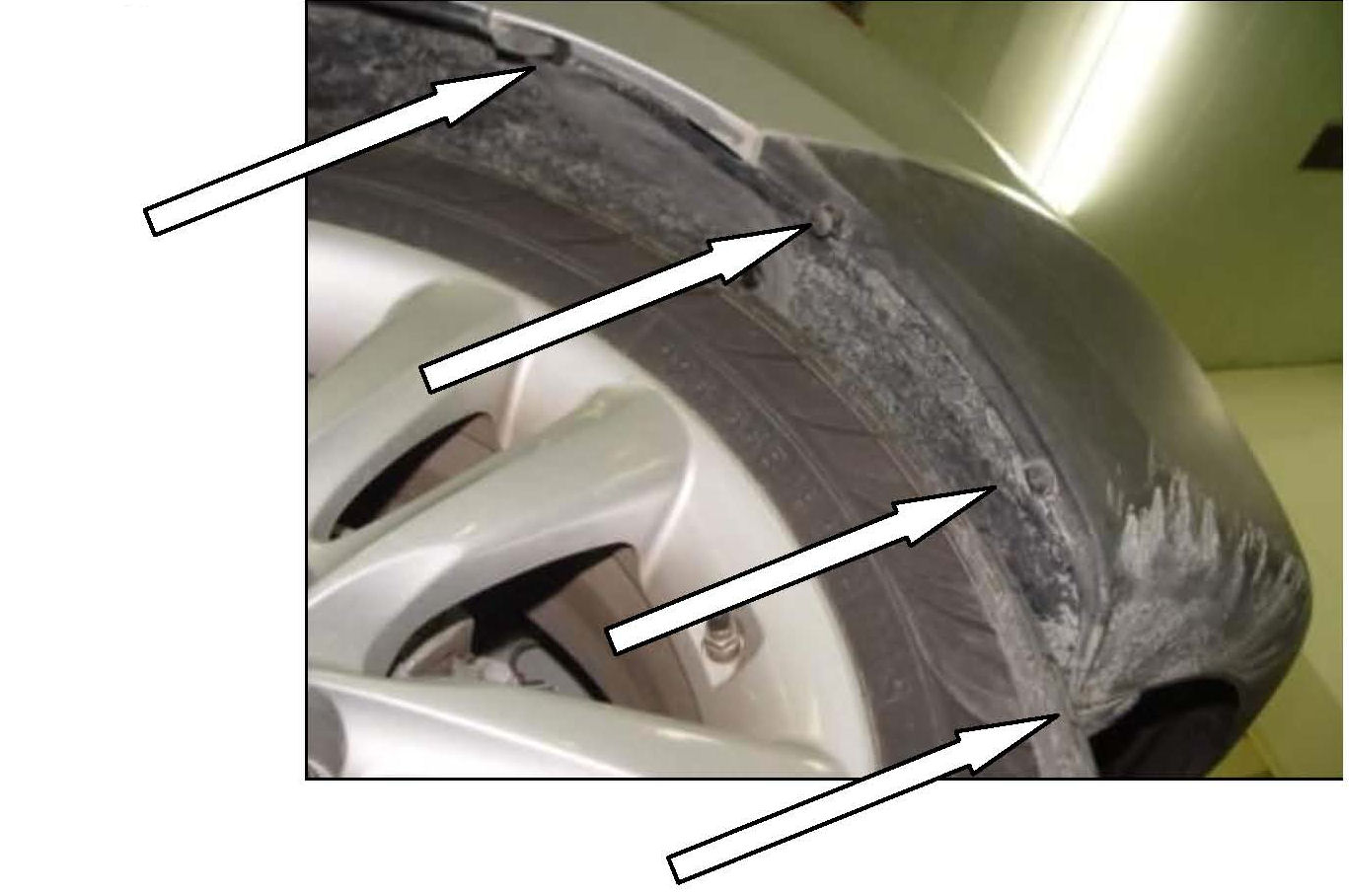

6. Remove the rear bumper cover mounting screw and clips (LH/RH).

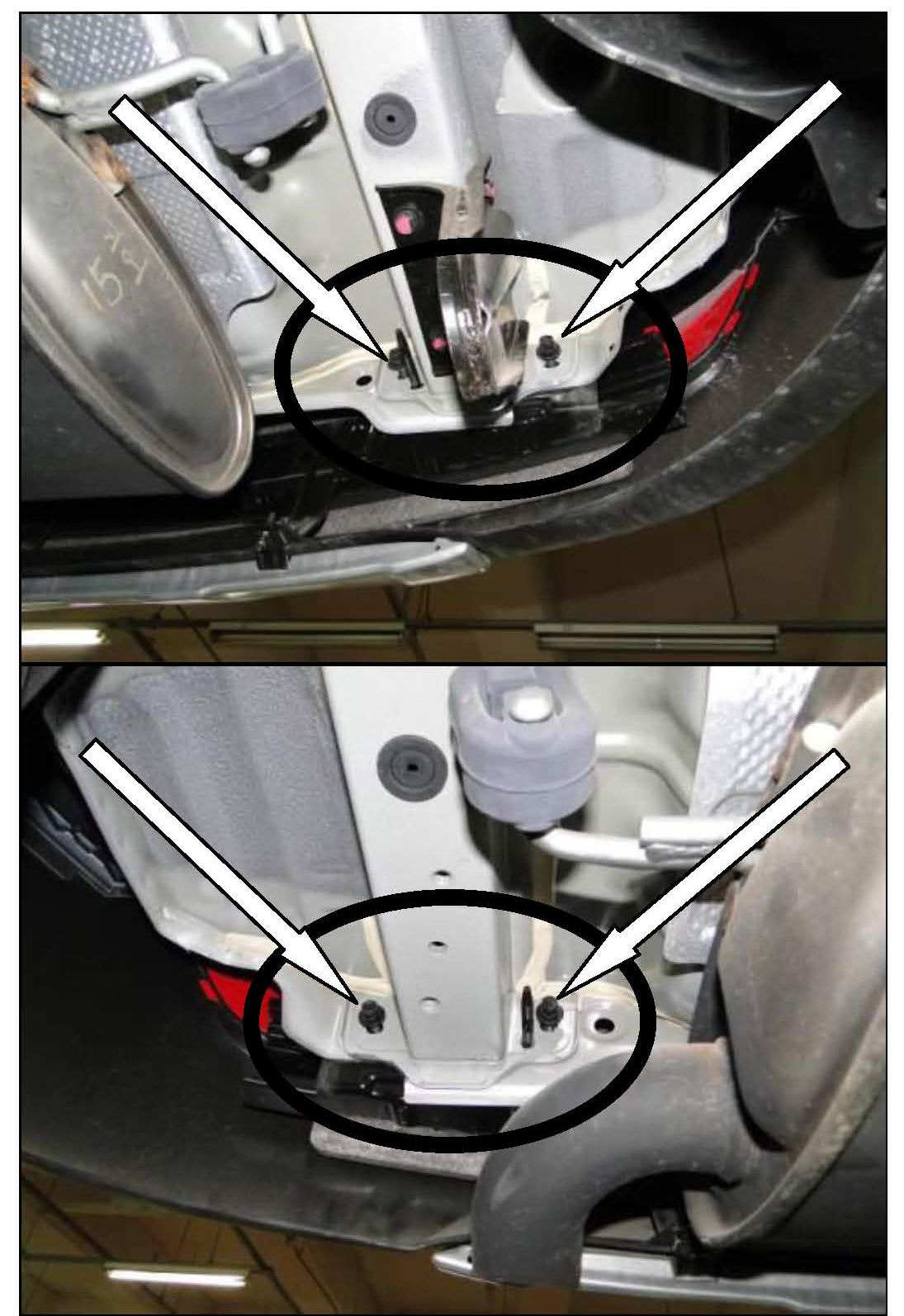

7. Remove the bumper mounting bolts (LH/RH).





8. Pull out the rear bumper end portion (LH/RH).

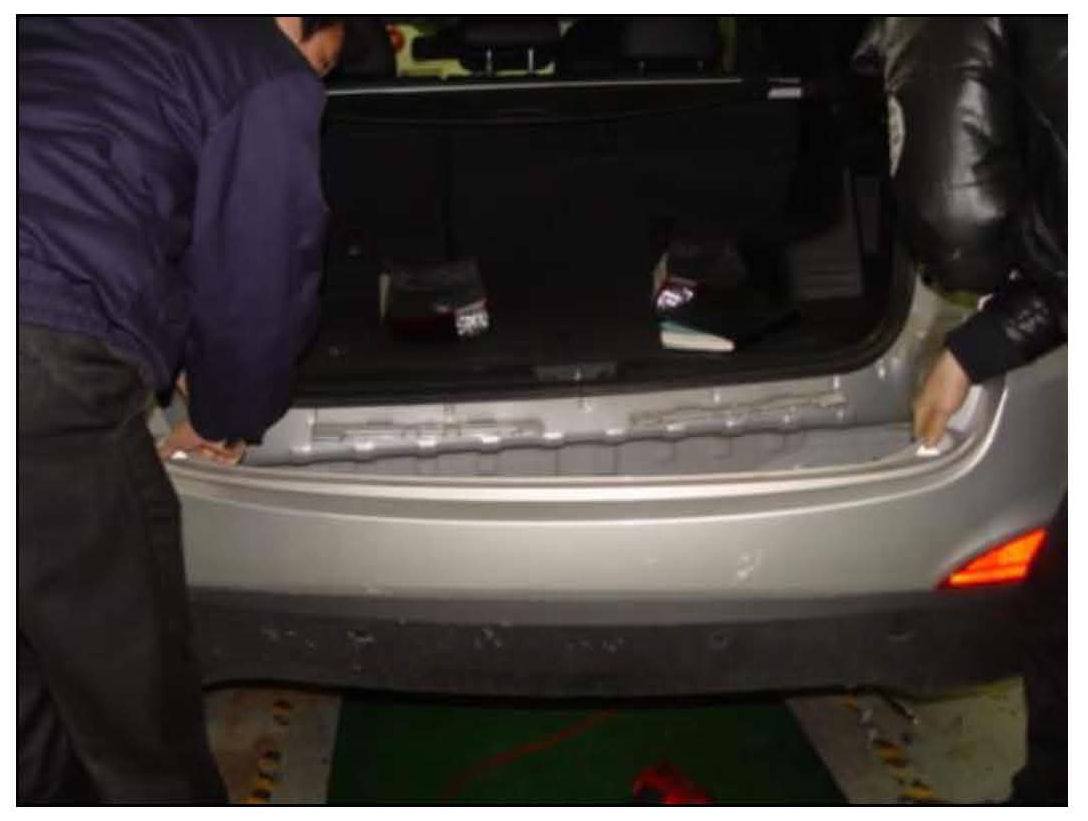

9. Pull the bumper gently rearward and place it on clean fabric.

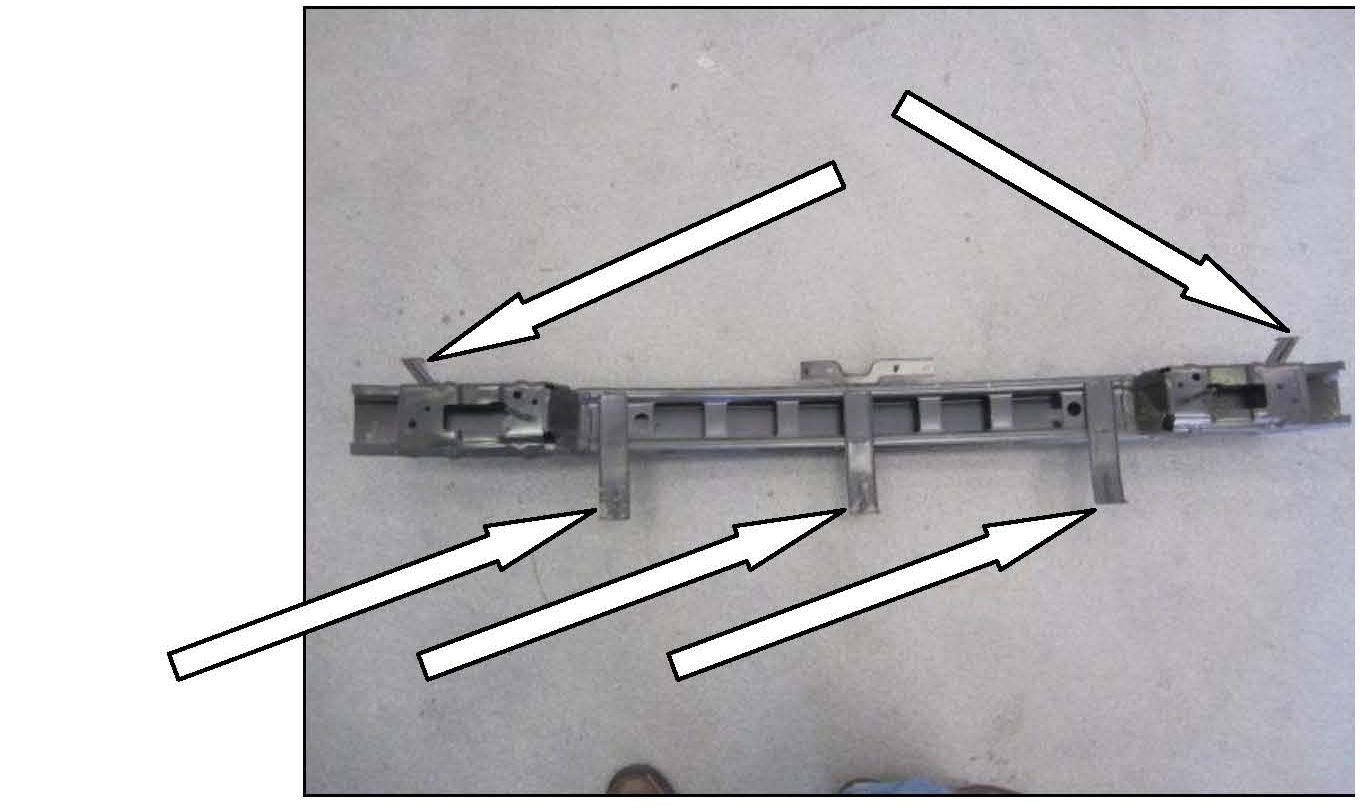

10. Remove the rear bumper rail by removing 5 fasteners.

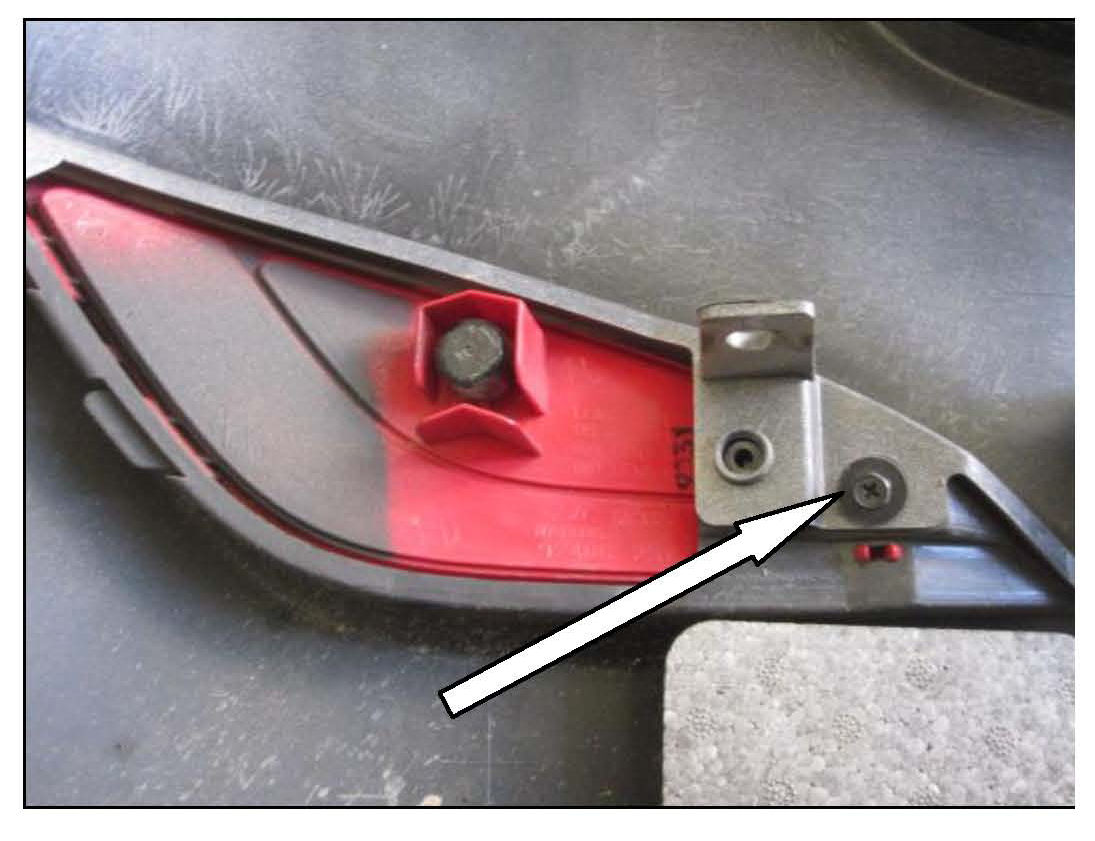

11. Remove the screw from the reflector on each side (LH/RH).

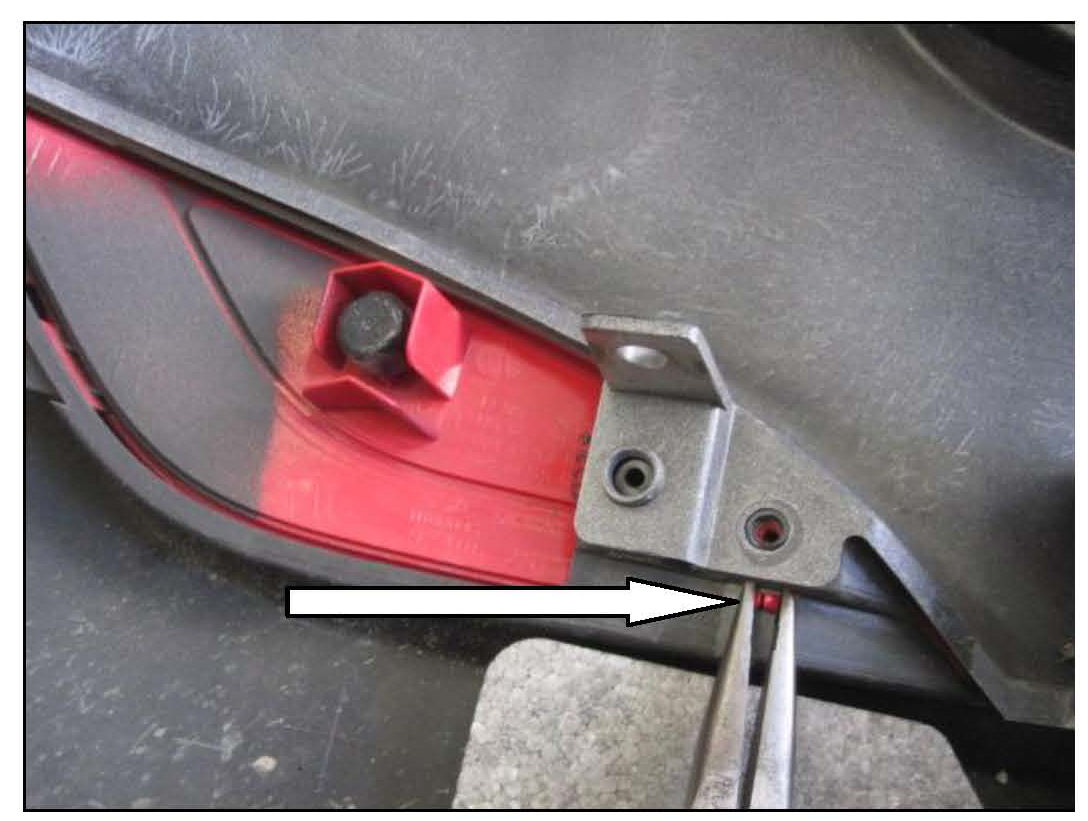

12. Remove the reflectors by squeezing the clip.





13. Pull the rear reflectors out of the rear bumper (LH/RH).

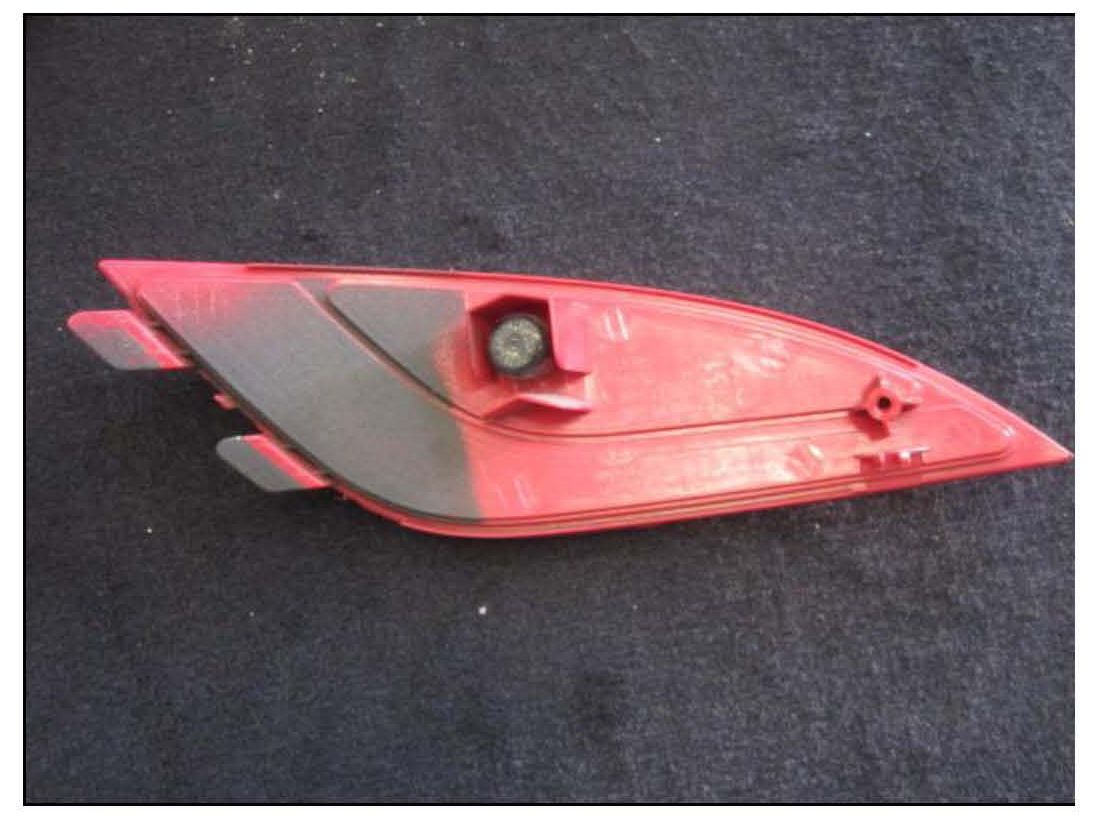

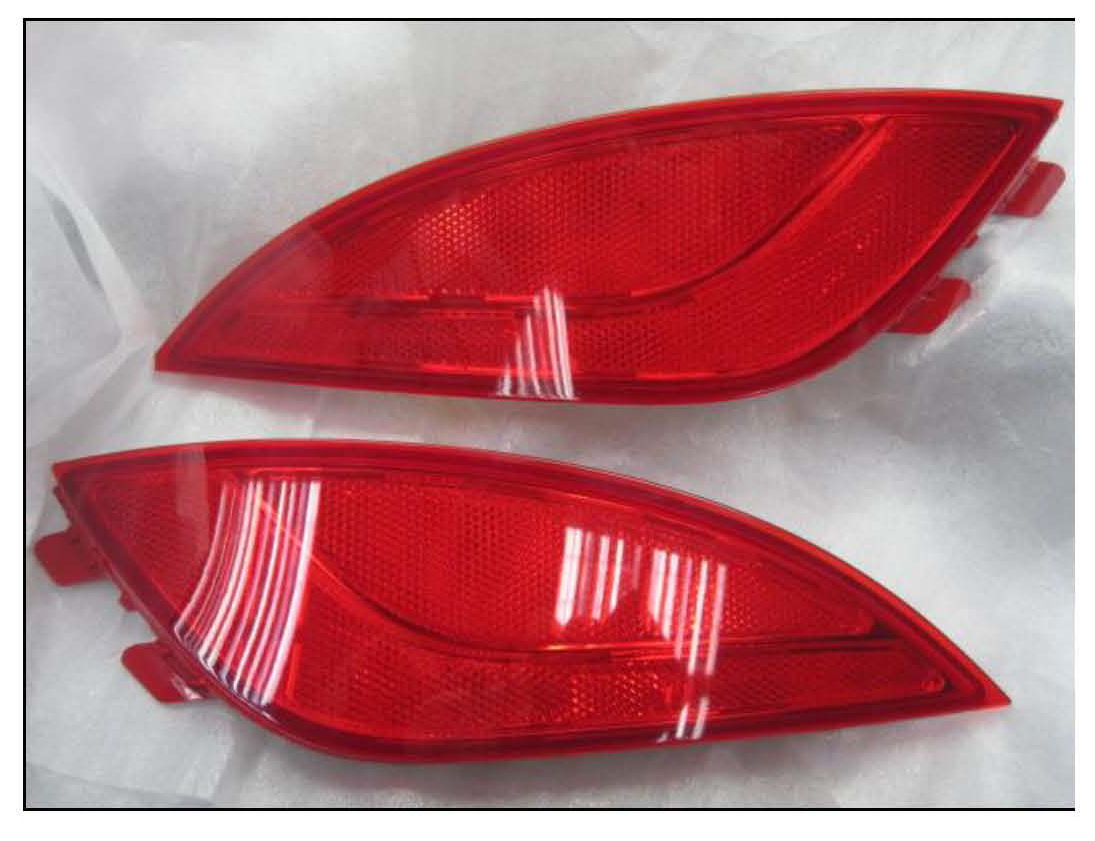

14. Install new reflectors (LH/RH).
92405-2S1OOQQH

Reinstall all other removed components in reverse order of their removal.
