Rear Door Window Regulator: Service and Repair

Replacement

Door Module Assembly Replacement
1. Remove the following parts.
A. Door trim
B. Door screen
C. Window glass
D. Outside handle

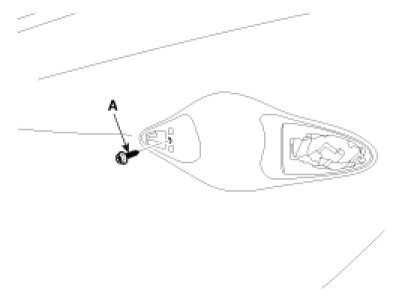

2. Loosen the mounting screw (A).

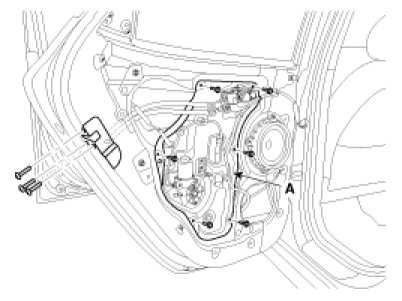

3. After loosening the mounting nuts, then remove the rear channel (A).

Tightening torque :
6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8.0 lb-ft)





4. Loosen the door module mounting bolts and latch mounting screws.
5. Remove the door module (A).

Tightening torque :
6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8.0 lb-ft)

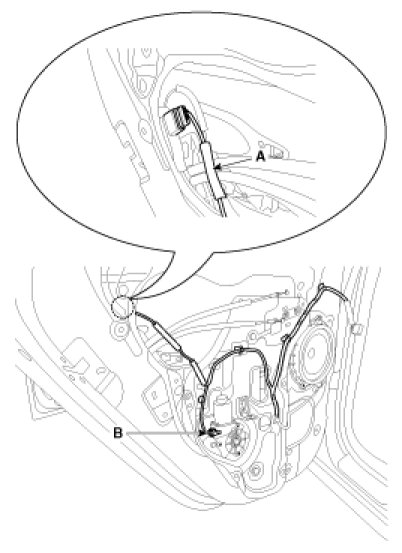

6. Disconnect the connector (A) and power window motor connector (B)
7. Remove the wiring mounting clip.




8. Installation is the reverse of removal.

NOTE:
- Grease should be applied to areas where there is rotational parts and springs.
- Roll the glass up and down to see if it move freely without binding.
- Make sure the door locks/unlocks and opens/closes properly.
