Windshield Washer Motor: Service and Repair

Removal

CAUTION:
- When servicing the washer pump, be careful not to damage the washer pump seal.
- Do not operate the washer pump before filling the washer reservoir.
Failure to do so could result in premature pump failure.

1. Disconnect the negative (-) battery terminal.
2. Remove the front bumper cover.

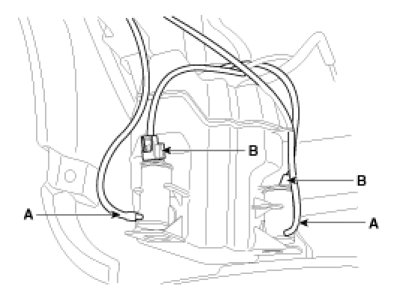

3. Remove the washer hose (A) and disconnect the washer motor connector (B).

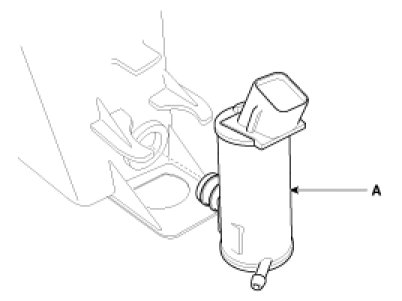

4. Remove the front washer motor (A).

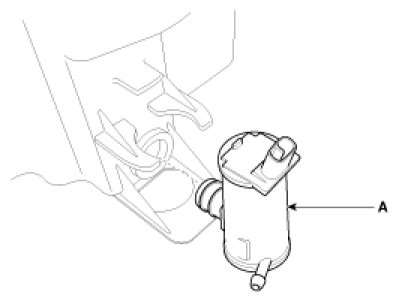

5. Remove the rear washer motor (A).

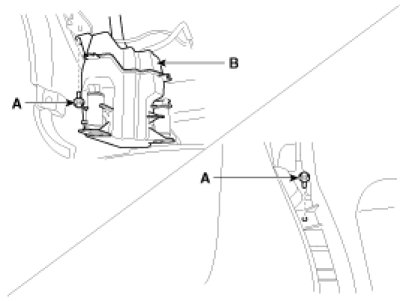

6. Remove the washer reservoir (B) after removing bolts (A).






Installation

1. Reassemble the washer reservoir.

NOTE:
Before installing the pump motor, check the filter for foreign material or contamination. if necessary, clean the filter into the pump motor.

2. Connect the washer motor connectors and washer hoses.
3. Install the front and rear washer motor.
4. Install the front and rear washer nozzle.

Tightening torque (Bolt) :
3 - 5 Nm (0.3 - 0.5 kgf.m, 2.2 - 4.2 lbf.ft)


5. Install the front bumper cover.
