Combination Switch: Testing and Inspection





Inspection

1. Check BCM input/output specification of multifiction switch using the scan tool. If the specification is abnormal, replace the head lamp or wiper switch.
2. If diagnosis is required on the multifunction switch, select "VERACRUZ" and "BCM"

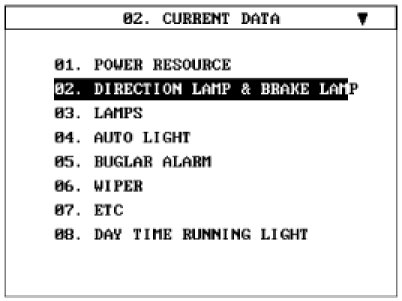

3. Select "CURRENT DATA" and " DIRECTION LAMP & BRAKE LAMP".

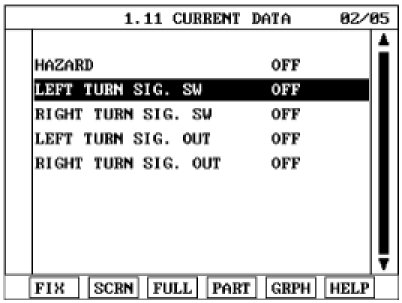

4. Check the input/output condition of "DIRECTION LAMP & BRAKE LAMP".

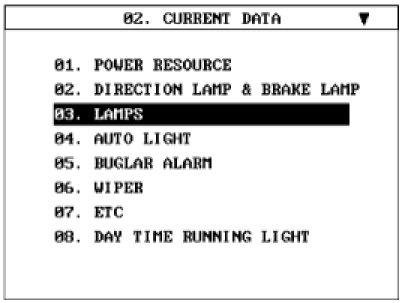

5. Check the input/output condition of "LAMPS".

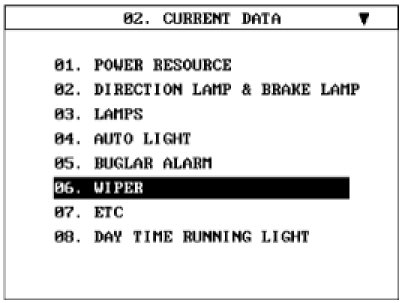

6. Check the input/output condition of "WIPER".

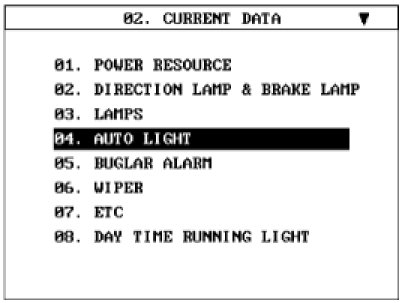

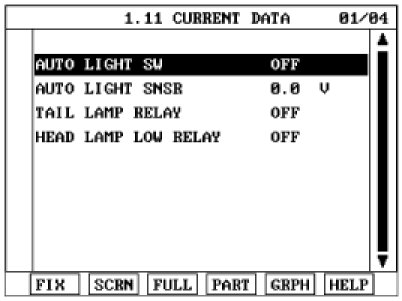

7. Check the input/output condition of "AUTO LIGHT".








8. Select "ACTUATION TEST".
