Power Mirror Switch: Service and Repair





Inspection

1. Disconnect the power door mirror switch module connector from front door trip panel.

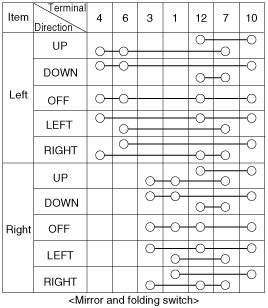

2. Check for the continuity between terminals of power door mirror switch according to the table.






Removal

1. Disconnect the negative(-) battery terminal.
2. Remove the front door trim.

3. Disconnect the power door mirror switch connector(A).




4. Remove the power door mirror switch(A).





NOTE:
Be careful not to damage the hook when removing the switch module.

Installation

1. Install the driver power window switch and connectors.
2. Install the front door trim.
