Power Distribution Relay

E44 PDM 2 (ACC) Relay (With Smart Key):

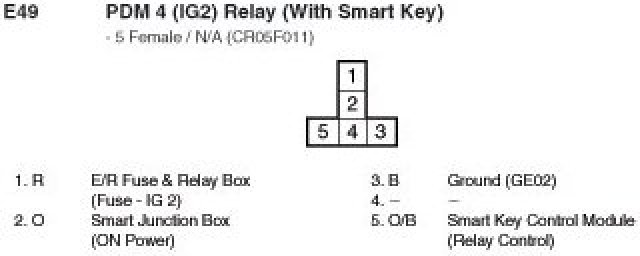

E49 PDM 4 (IG2) Relay (With Smart Key):
