Connecting Rod, Engine





Connecting Rod

Tightening torque
1st step 17.7 - 21.6 N.m (1.8 - 2.2 kgf.m, 13.0 - 15.9 lb-ft)
2nd step 88 - 92°

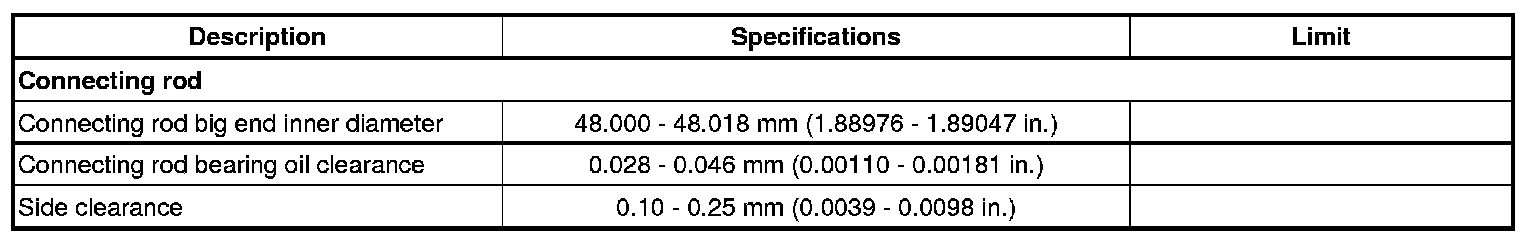

Side Clearence & Diameter
