Campaign TG1 - Audio PCB Panel Replacement

NUMBER
11-01-024

GROUP
Campaign

MODEL(S)
Elantra (MD)

DATE
July, 2011

SUBJECT
ELANTRA (MD) AUDIO RCB PANEL REPLACEMENT (SERVICE CAMPAIGN TG1)

Description:
This bulletin describes the procedure to replace the audio printed circuit board (PCB) panel in Elantra (MD) vehicles.

Important and Applicable Vehicles

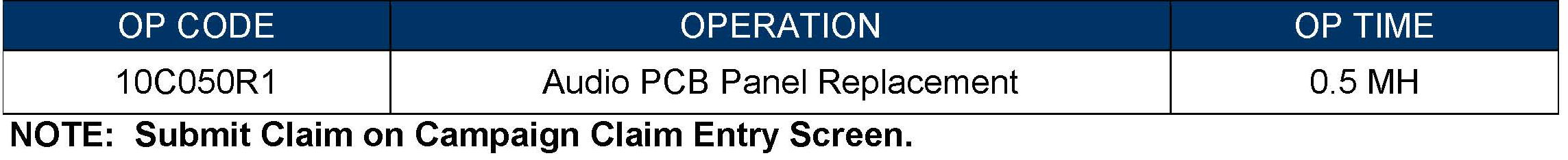

WARRANTY INFORMATION:

PARTS INFORMATION:

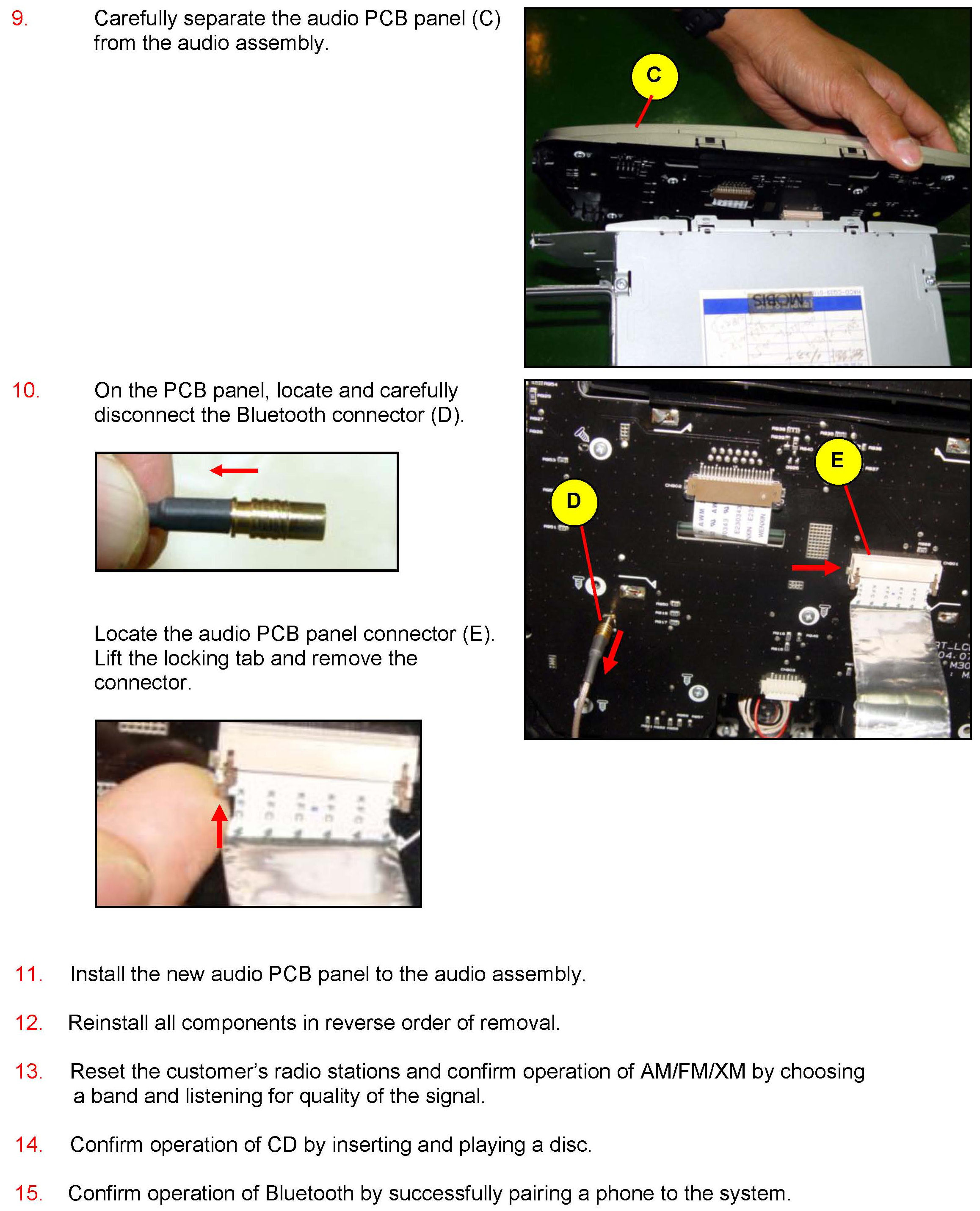

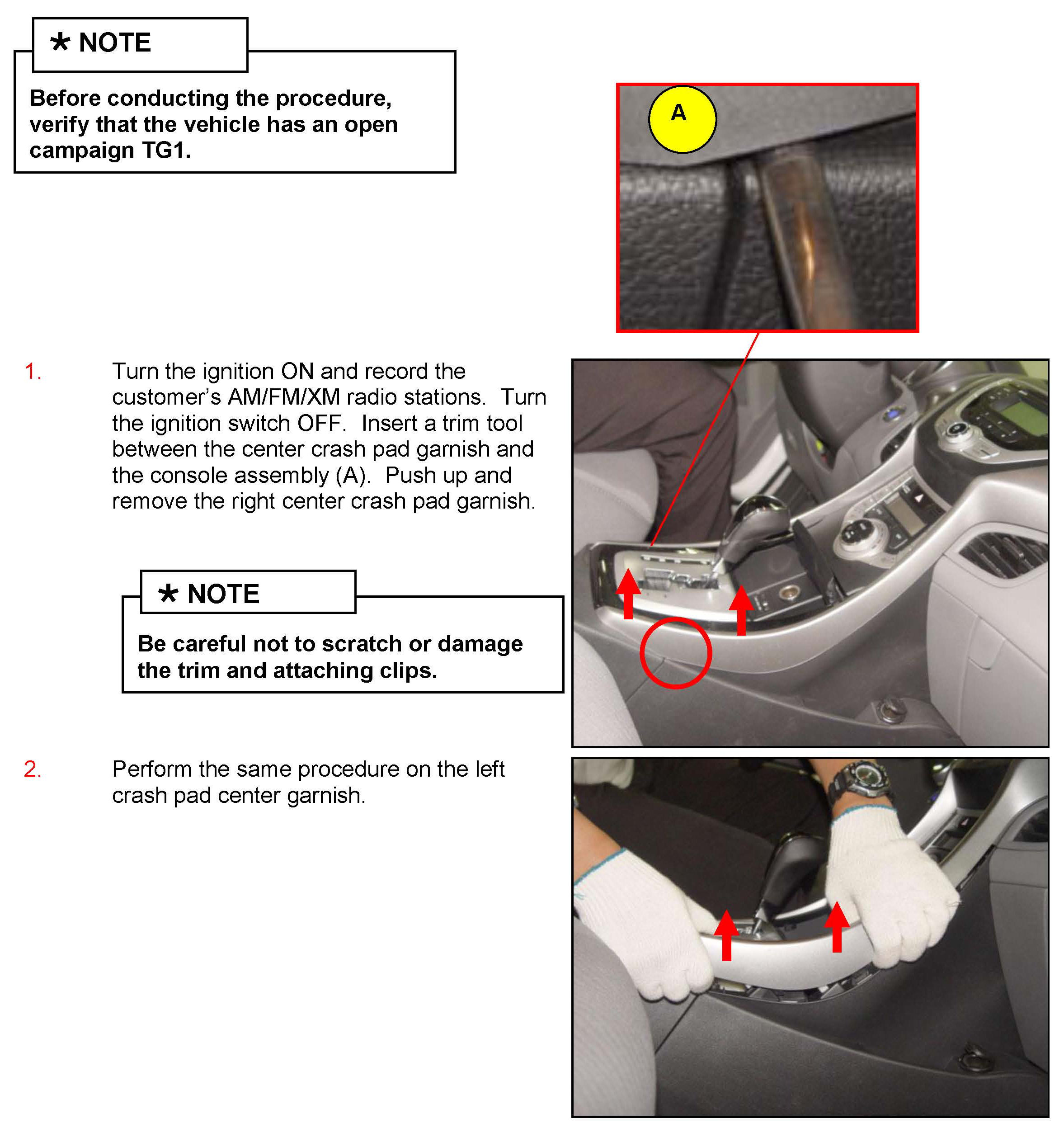

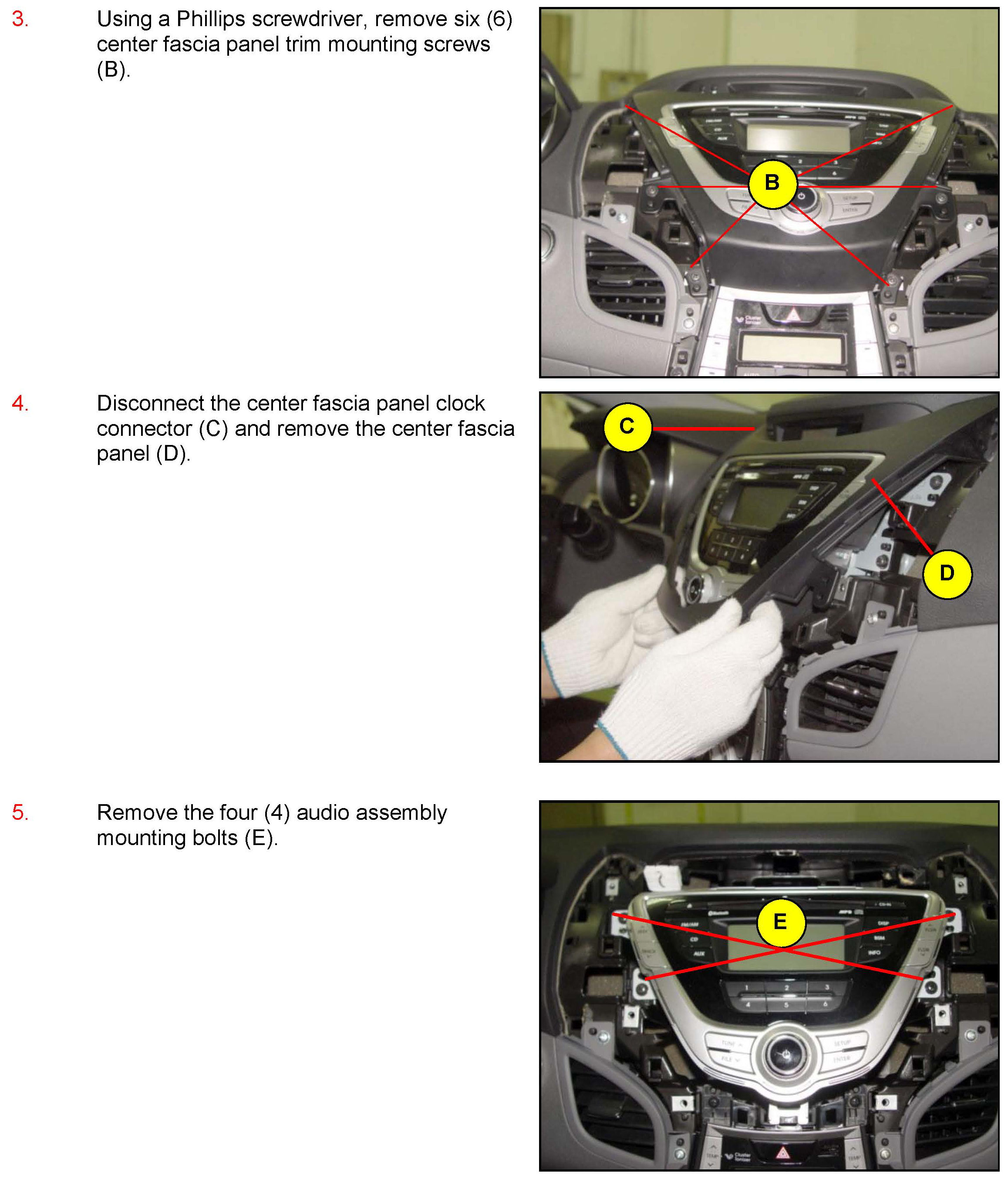

SERVICE PROCEDURE:
