Input Speed Sensor

Inspection

1. Check signal waveform of Input & output speed sensor using the GDS.

Specification:Refer to "Signal Wave Form" section.

Removal

1. Remove the battery and the battery tray.
2. Remove the under cover (A).

Tightening torque:
6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8.0 lb-ft)




3. Replace new gasket and the plug after draining the automatic transaxle fluid by removing the drain plug. " in this group)
4. Remove the air breather hose (A).
5. Remove the valve body cover (B).

Tightening torque:
13.7 - 15.7 N.m (1.4 - 1.6 kgf.m, 10.8 - 11.6 lb-ft)

NOTE:
Remove installation bolts in the engine compartment first and then remove others under the vehicle.

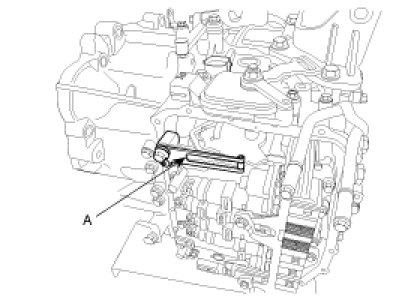

6. Remove the plate and the detent spring (A) after removing the bolt.

Tightening torque:
11.8 - 15.7 N.m (1.2 - 1.6 kgf.m, 8.7 - 11.6 lb-ft)

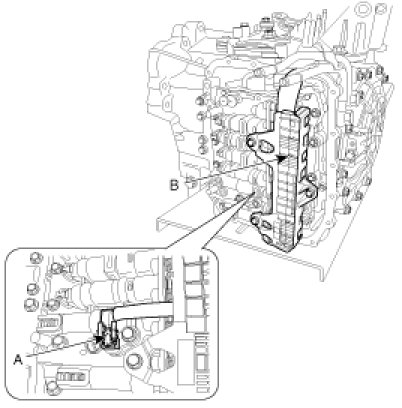

7. Remove the bolt (3ea) after disconnecting the solenoid valve connector (B) and the oil temperature sensor connector (A).

Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

CAUTION:
Be careful not to damage the harness lock connector.

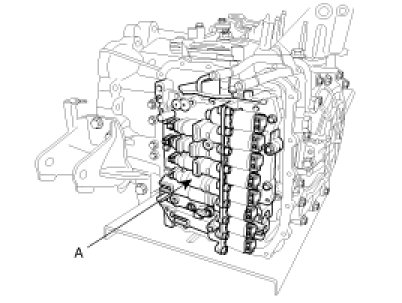

8. Remove the valve body assembly (A).

Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

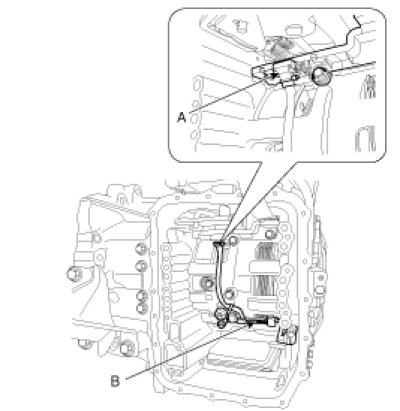

9. Disconnect the input & output speed sensor connector(A).
10. Remove the input & output speed sensor (B) after removing the bolts(2ea).

Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)





Installation

1. Installation is the reverse of removal.

NOTE:
After replacement or reinstallation procedure of the valve body assembly, must perform procedures below.
- Adding automatic transaxle fluid. " in this group)
