Pressure Plate

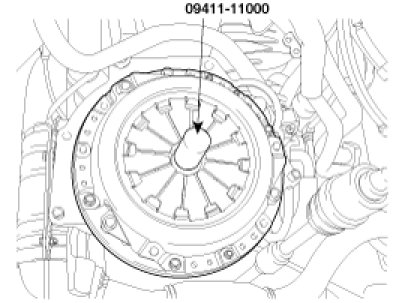

Pressure PlateTemporarily install the
clutch disc assembly to the
flywheel using the special tool (09411-11000).
Tighten the bolts one or two steps at a time in a star pattern.
Tightening torque
15 - 22 Nm (1.5 - 2.2 kgf.m, 10.9 - 16.0 lb-ft)
