Dome Lamp: Service and Repair





Removal

1. Disconnect the negative (-) battery terminal.
2. Detach the lamp lens and reflector (A) from the room lamp with a flat-tip screwdriver.




3. Remove the room lamp (A) after removing the screws.




4. Replace the room lamp after removing the connectors (A).





Vanity Lamp
1. Disconnect the negative (-) battery terminal.
2. Remove the lens (A) using a flat-tip screwdriver.




3. Remove the vanity lamp (A) after loosening the mounting screws.




4. Remove the vanity lamp assembly after disconnecting the connector (A).






Installation

Room Lamp
1. Connect the connector and install the room lamp.
2. Install the lamp reflector and lamp lens.

Vanity Lamp
1. Install the vanity lamp.
2. Install the lens.

Inspection

1. Check "IPM" input/output specification of room lamp using the GDS.

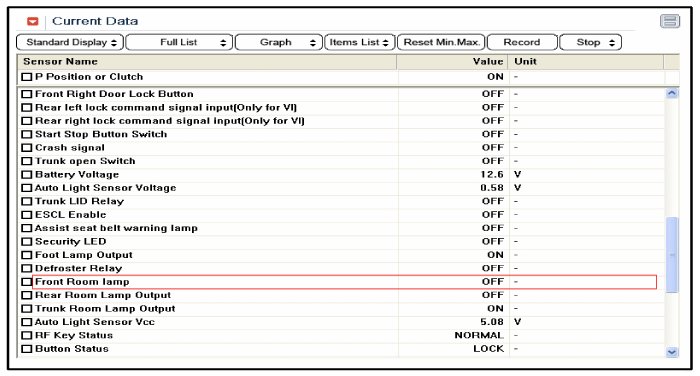

2. Select option "Input/output monitoring".

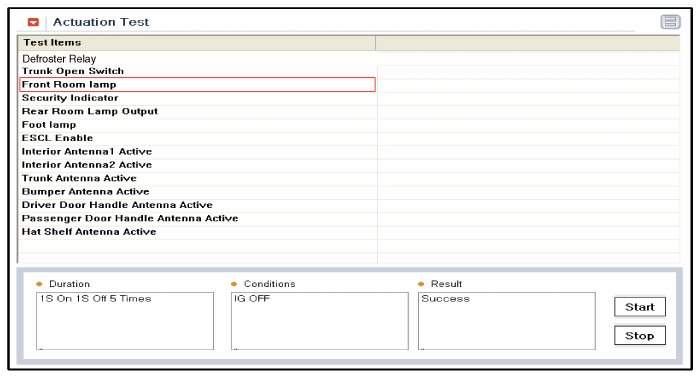

3. Select option "Actuation Test" to perform functional test.
