Headlamp Alignment Sensor: Service and Repair





Removal

Height Sensor
1. Disconnect the negative (-) battery terminal.
2. Remove the height sensor linkage (A) installed on the front axle and rear axle.
(Number of height sensor : Air suspension - 4EA, Non-air suspension - 2EA)

[Front]





[Rear]




3. Remove the height sensor assembly after disconnecting the connector.

[Front]





[Rear]

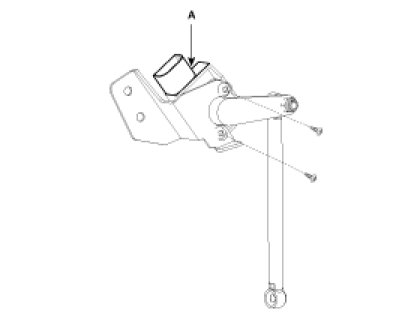

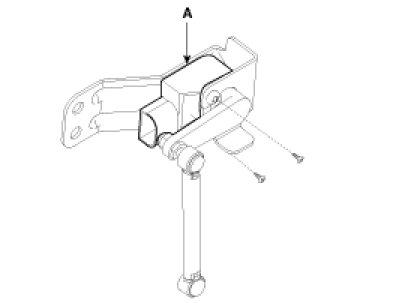

4. Remove the height sensor unit (A) after removing screws(2EA).

[Front]





[Rear]






Installation

Height Sensor
1. Install the height sensor unit.
2. Install the height sensor assembly after connecting the connector.
3. Install the height sensor linkage on the front axle and rear axle.
4. Connect the negative (-) battery terminal.
