Camshaft Bearing Cap

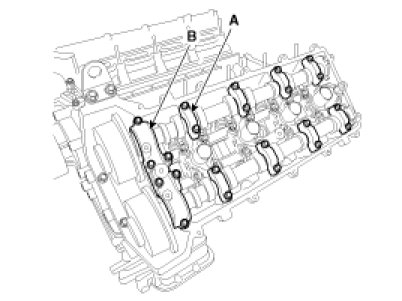

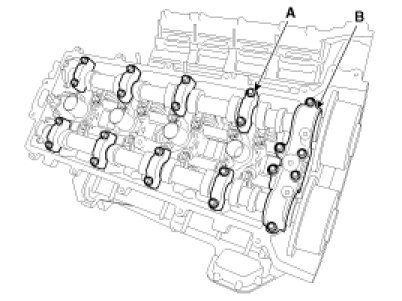

Camshaft Bearing CapInstall the bearing cap (A) and thrust bearing cap (B) with specified torque.
Tightening torque :
1st step
6.9 - 7.8 N.m ( 0.7 - 0.8 kgf.m, 5.1 - 5.8 lb-ft)
2nd step
13.7 - 14.7 N.m (1.4 - 1.5 kgf.m, 10.1 - 10.8 lb-ft)
NOTE: Do not turn the camshaft.
[RH][LH]
