Rear Window Defogger Switch





Removal

1. Disconnect the negative (-) battery terminal.
2. Remove the center fascia panel (A) after removing the screws.




3. Remove the connectors (A).




4. Remove the heater controller (A) after removing the screws.






Installation

1. Install the heater controller and connector.
2. Install the center fascia panel.

Inspection

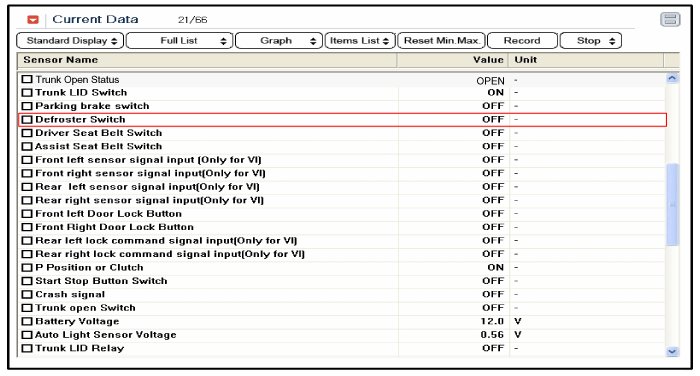

1. The rear window defogger switch inputs can be checked using the GDS.
2. To check the input value of rear window defogger switch, select option "IPM".
3. Select option "Input/output monitoring".

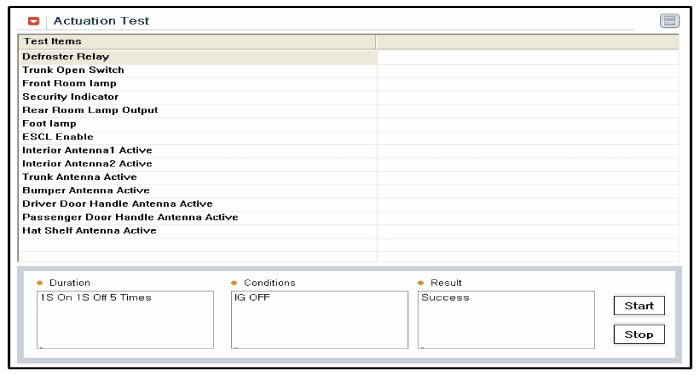

4. To check the input value of rear window defogger switch in force mode, select option "ACTUATION TEST".
