Antenna: Service and Repair

Removal

Roof Antenna
1. Remove the rear roof trim.

2. Disconnect the GPS cable (A) and XM radio cable (B) after removing a nut (C).

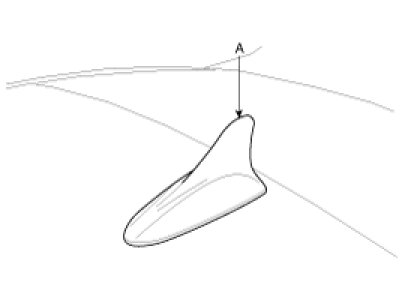

3. Remove the roof antenna (A).





Hands Free Mic
1. Remove the hands free mic.






Installation

Roof Antenna
1. Connect the GPS cable and XM radio cable.
2. Install the roof trim.

Hands Free Mic
1. Install the hands free mic.

Inspection

Hands Free Mic
1. Disconnect the negative(-) battery terminal.
2. Remove the hands free mic (A) after loosening the connector from roof top.




3. Check the continuity of Mic between terminals.
