Repair Procedures

Replacement

Floor Console Replacement

NOTE:
- When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.

1. Remove the console side cover (A).

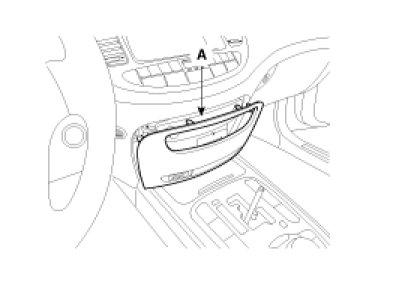

2. Remove the head unit cover bezel.

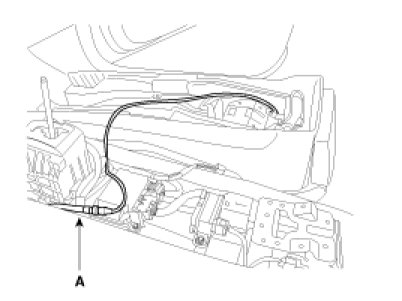

3. Disconnect the connector (A).

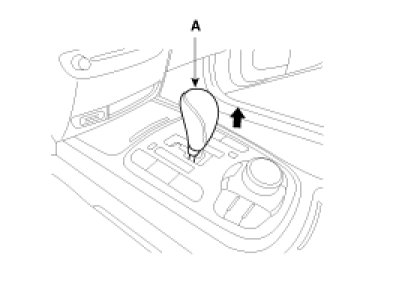

4. Remove the knob (A).

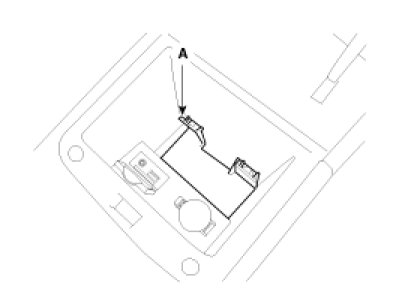

5. Remove the indicator cover (A).

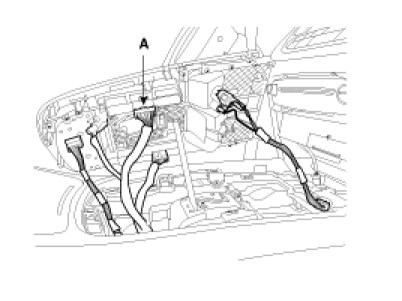

6. Disconnect the connectors (A).

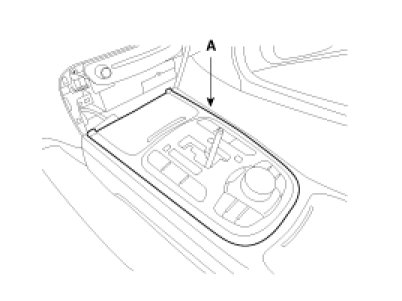

7. Remove the cover (A).

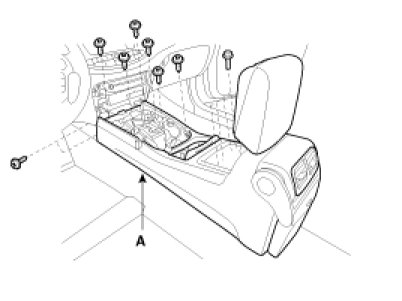

8. After loosening the console mounting screws, remove the console (A).

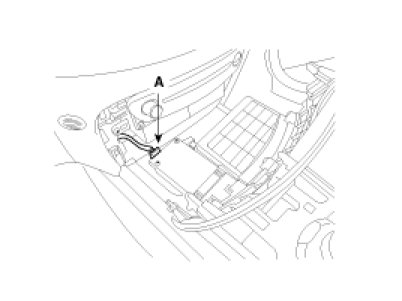

9. Disconnect the connector (A).




10. Installation is the reverse of removal.

NOTE:
- Make sure the connector are connected in properly.
- Replace any damage clips.

Console Extenser Cover
1. Remove the cover (A).

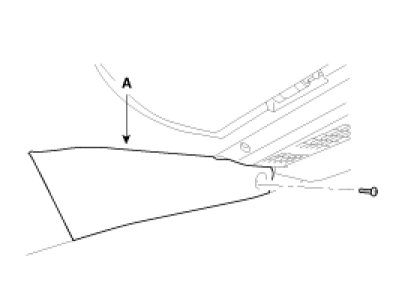

Driver`s

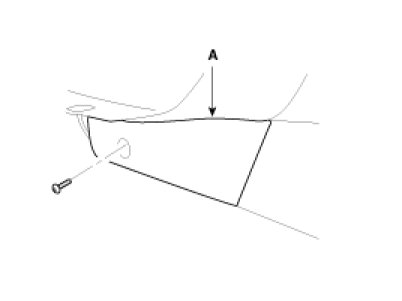

Passenger`s




2. Installation is the reverse of removal.
