Component Inspection

Assist Door Module

B1913 Outside Mirror - Right vertical Motor or Sensor - Component Inspection

Component Inspection

Check mirror motor
1. Connect scantool
2. IG "ON" & ENG "OFF"

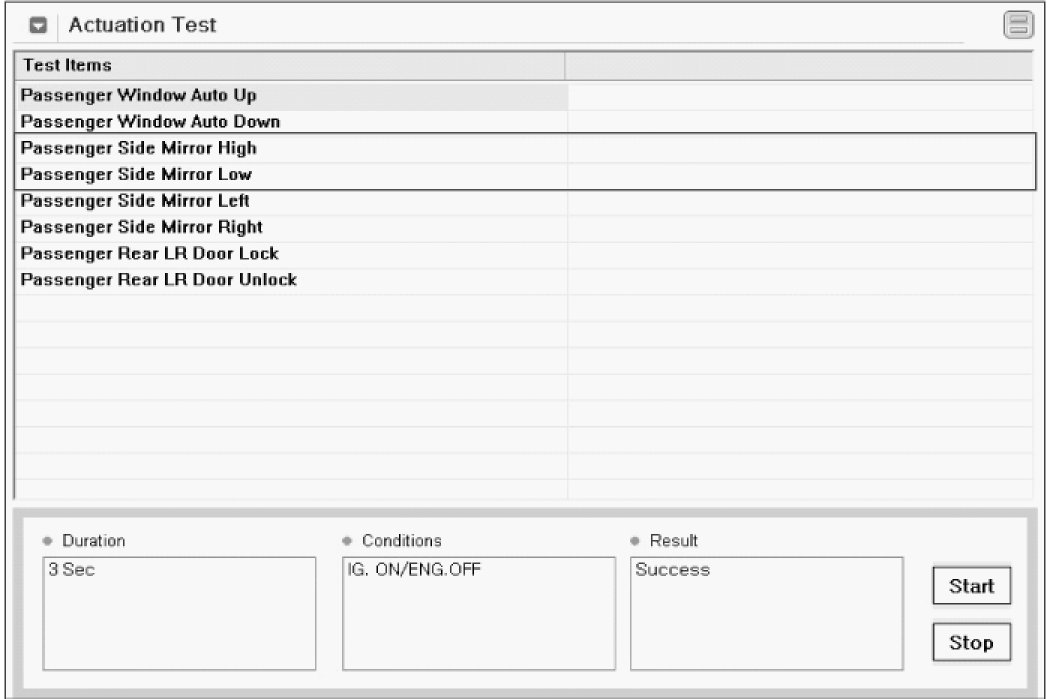

3. Select "Actuation Test" mode.
4. Execute "RH Outside Mirror (UP, DOWN, LEFT, RIGHT)" test.

Specification : Turned to pressed direction




5. Is motor working normal?





Check switch
1. IG "ON" & ENG "OFF"
2. After connect GDS, select "Current Date" menu.
3. Check whether "Assist Mirror Switch-Right" is turned to "ON" when the control switch is pressed. (UP, DOWN, LEFT, RIGHT)

Specification : Service data is switched. (ON <-> OFF)




4. Is the service data normal?
