B2448 Air Mix Motor TEMP-Console - General Information

Component Location





DTC Description

Air conditioner Control Module sets DTC B2448 if Console temp actuator "A" has not been moved to the mode, where air condition control module controls, within 40 seconds.

DTC Description

Air conditioner Control Module sets DTC B2448 if Console temp actuator "A" has not been moved to the mode, where air condition control module controls, within 40 seconds.

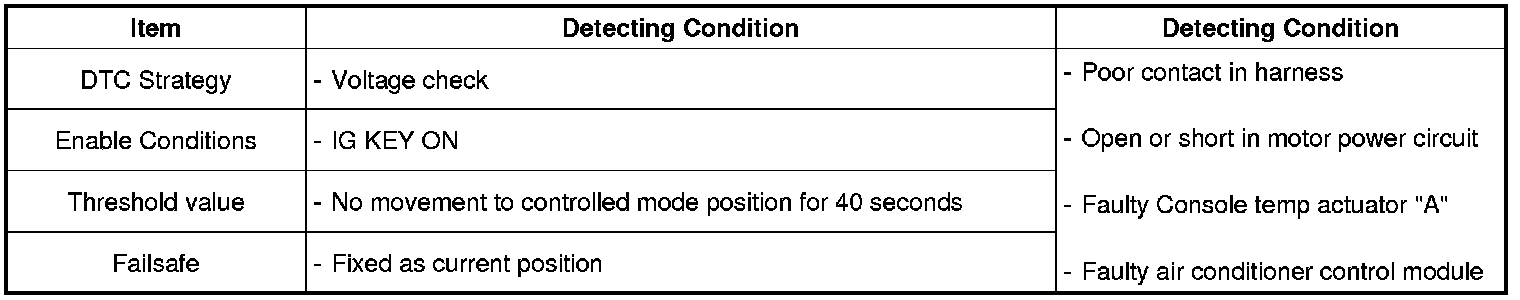

DTC Detecting Condition

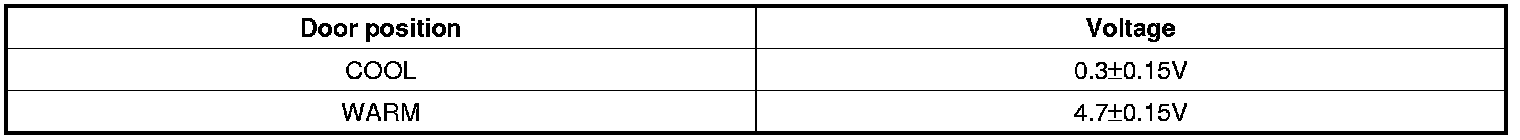

Specification

** Voltage value of Air Mix potentiometer as a function of temp door position.






Diagnostic Circuit Diagram
