Scantool Diagnostics

Electronic Stability Control

C2402 Motor Failure - Scantool Diagnostics

Check actuation test

1. Connect scantool to Data Link Connector (DLC)
2. IG "ON"
3. Select the "Actuation Test" mode on the scantool.
4. Monitor the operating status of the motor by actuation test of scantool.

Specification : If the operating sound is heard, it works okay.

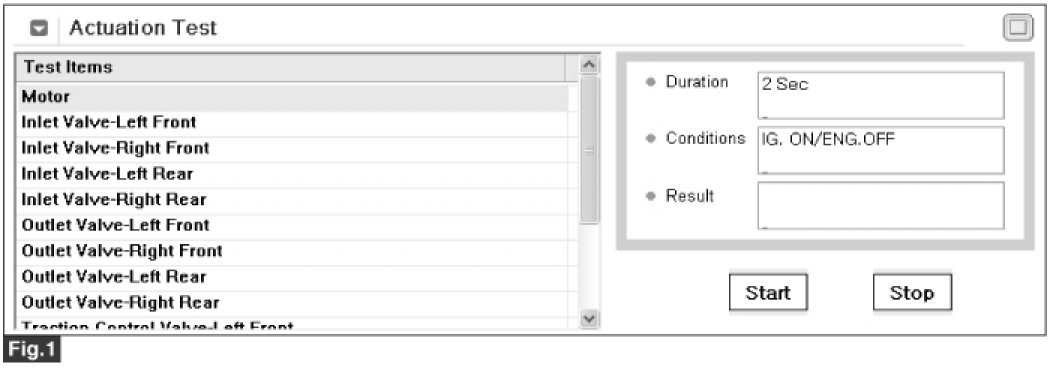

Fig.1) Test Condition : Ignition "ON" & Engine "OFF".
5. Does motor operate normally?
