Climate Seat Unit





Removal

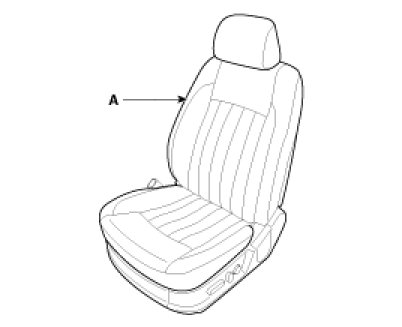

1. Remove the front seat assembly (A) if the vehicle equipped with front climate control seat

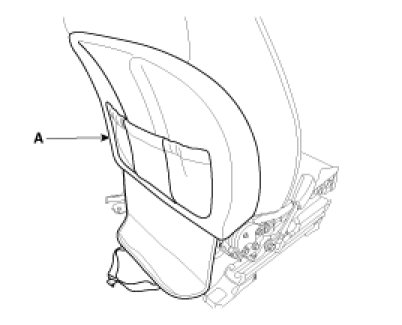

2. Remove the seat back cover(A).

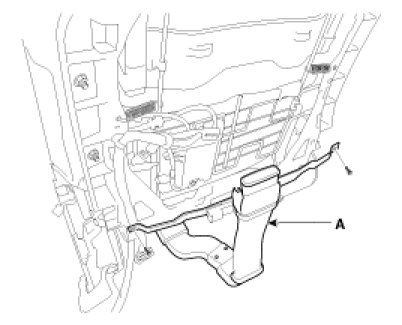

3. Remove the front climate control seat assembly(A) after removing the connectors and screws.






Installation

1. Install the connectors and climate control seat assembly.
2. Install the seat back cover.
3. Install the seat assembly and seat track cover.

Inspection

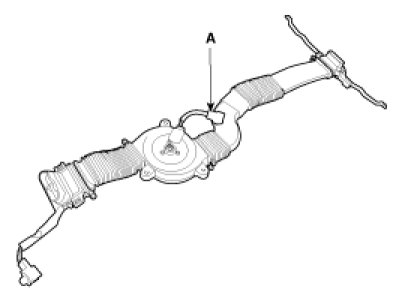

1. If the fan is abnormal after checking the connector (A), replace the climate control blower.
