Smart Cruise Control System
Description
The smart cruise control system allows a driver to program the vehicle to control the speed and following distance detecting the vehicle ahead without depressing the brake pedal and the accelerator pedal.
1. Cruise speed control: The vehicle maintains the selected speed if there are not vehicles ahead.
2. Retardation control: The vehicle decelerates if a vehicle ahead is detected.
3. Following distance control: The vehicle maintains the selected following distance.
4. Acceleration control: The vehicle accelerates to the selected speed if a vehicle ahead is not detected.
5. Control on curves
(1) The sensor may not detect a vehicle ahead or may detect a vehicle on other lanes because the detection range of the sensor is limited.
(2) On curves, if the vehicle equipped the SCC is driving at high speed, the vehicle can slip outside. Therefore reduce the speed on curves even there is not a vehicle ahead. (There is no brake control by SCC.)
(3) While the vehicle follows a vehicle ahead on straight road, if the vehicle ahead enters on curve, the vehicle equipped the SCC may accelerate to follow the vehicle ahead.
(4) On curves, if a vehicle ahead followed is out of range, the vehicle does not accelerate to the set speed and maintain the following speed to prevent from accelerating and decelerating repeatedly. (If the vehicle equipped the SCC changes the lane or apply the accelerator pedal, the vehicle will accelerate.)
6. Warning alarm
If the vehicle equipped the SCC decelerates because a vehicle ahead decelerates or moves into your lane, the warning will operate.
(1) In case that the vehicle equipped with SCC is able to decelerate properly by the system - No warning
(2) In case that the vehicle equipped with SCC is not able to decelerate properly by the system - Indicator in the cluster will blink and the warning buzzer will sound. (The warning and deceleration by the system will go on until the brake pedal is applied.)
7. Accelerating by driver
Even the vehicle is being decelerated by the SCC system, the vehicle can be accelerated by applying the accelerator pedal. If the vehicle is accelerated above the set speed, the indicator in the cluster will blink.
NOTE:
- Smart cruise control operating conditions
- Vehicle speed at more than approximately 10km/h (6.2mph) or less than approximately 180km/h (111.8mph)
- Transmssion in D or Sports mode.
- "ESC OFF" switch OFF
- Parking brake released
- "ON/OFF" switch ON (CRUISE indicator ON)
Under the above conditions, activate the cruise system using the "SET/-" or "RES/+" switch.
- Smart cruise control disabling conditions
- "ON/OFF" switch OFF
- "CANCEL" switch ON
- Brake pedal applied
- Vehicle speed at less than approximately 10km/h (6.2mph) when there is a vehicle ahead in the lane. (The warning buzzer will sound and indicator in the cluster will display.)
- Vehicle speed at less than approximately 30km/h (18.6mph) when there is not a vehicle ahead in the lane. (The warning buzzer will sound and indicator in the cluster will display.)
- Vehicle speed at more than approximately 180km/h (111.8mph)
- Transmission in N or R
- ESC / TCS / ABS operating (The warning buzzer will sound and indicator in the cluster will display.)
- "ESC OFF" switch ON (ESC OFF indicator ON)
- Parking brake applied.
- System failure (The warning indicator ON)
- Crack, damage or wrong installation of smart cruise control unit cover (The warning indicator ON)
Cruise main switch (ON/OFF)
The smart cruise control system is engaged by pressing the cruise "ON/OFF" main switch. When the smart cruise control system is engaged, the CRUISE indicator in the cluster illuminates.
Set/Coast switch (SET/-)
The "SET/-" switch located on right of steering wheel column has two functions.
The set function - Push the "SET/-" switch and release it at the desired speed. The SET indicator light in the instrument cluster will illuminate. Release the accelerator pedal. The desired speed will automatically be maintained.
The coast function - Push the "SET/-" switch and hold it when the smart cruise control is on. The vehicle will gradually slow down. Release the switch at the desired speed. The desired speed will be maintained.
Push the "SET/-" switch and release it quickly. The cruising speed will decrease by 1.0km/h or 1.0mph.
NOTE:
If the vehicle speed is above the set speed by applying the accelerator pedal, the vehicle speed will be the set speed.
Resume/Accel switch (RES/+)
The "RES/+" switch located on right of steering wheel column has two functions.
The resume function - If any method other than the cruise "ON/OFF" main switch was used to cancel cruising speed temporarily and the system is still activated, the most recent set speed will automatically resume when the "RES/+" switch is pushed.
The accel function - Push the "RES/+" switch and hold it when the smart cruise control is on. The vehicle will gradually accelerate. Release the switch at the desired speed. The desired speed will be maintained.
Push the "RES/+" switch and release it quickly. The cruising speed will increase by 1.0km/h or 1.0mph.
Cancel switch (CANCEL)
The cruise control system is temporarily disengaged by pushing the "CANCEL" switch.
Following distance control switch
This system assists you can set the distance from the vehicle ahead and maintain the selected distance even if you did not push the accelerator or the brake pedal.
Select the appropriate following distance according to road conditions and vehicle speed.
Each time the button is pressed, the following distance changes as follows:
Ex) Distance 3 -> Distance 2 -> Distance 1-> Distance 3
If you drive at 80 km/h (49.7mph), the distance maintain as follows;
Distance 3 - approximately 55m (180.4ft)
Distance 2 - approximately 40m (131.2ft)
Distance 1 - approximately 26m (85.3ft)
The following distance of each stage is changed according to the speed of the vehicle ahead.

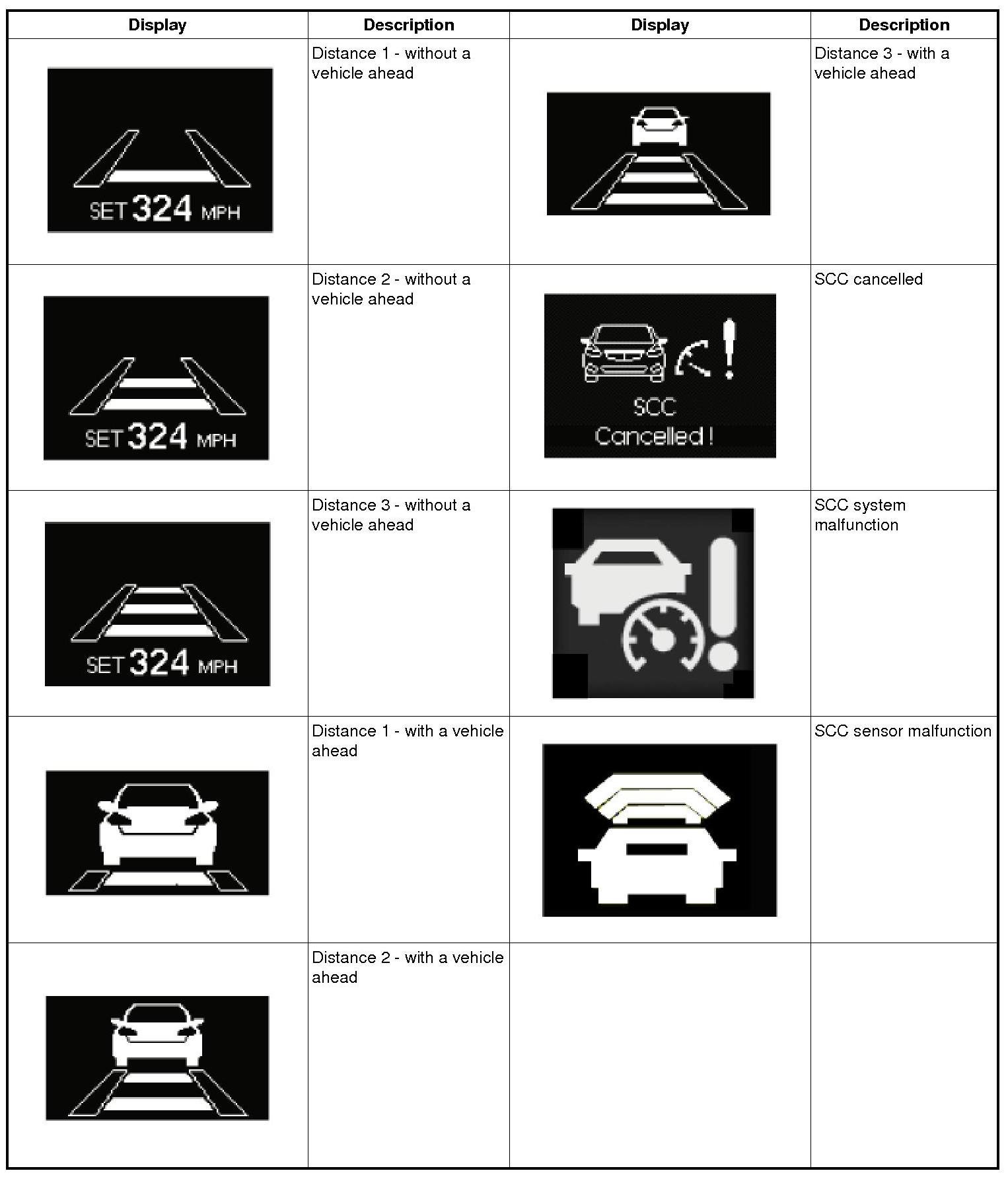

Display in the cluster
