Diagram Set SD937 (Driver Information System (DIS))

SD937-1 Driver Information System (DIS) (1):




SD937-2 Driver Information System (DIS) (2):




SD937-3 Driver Information System (DIS) (3):

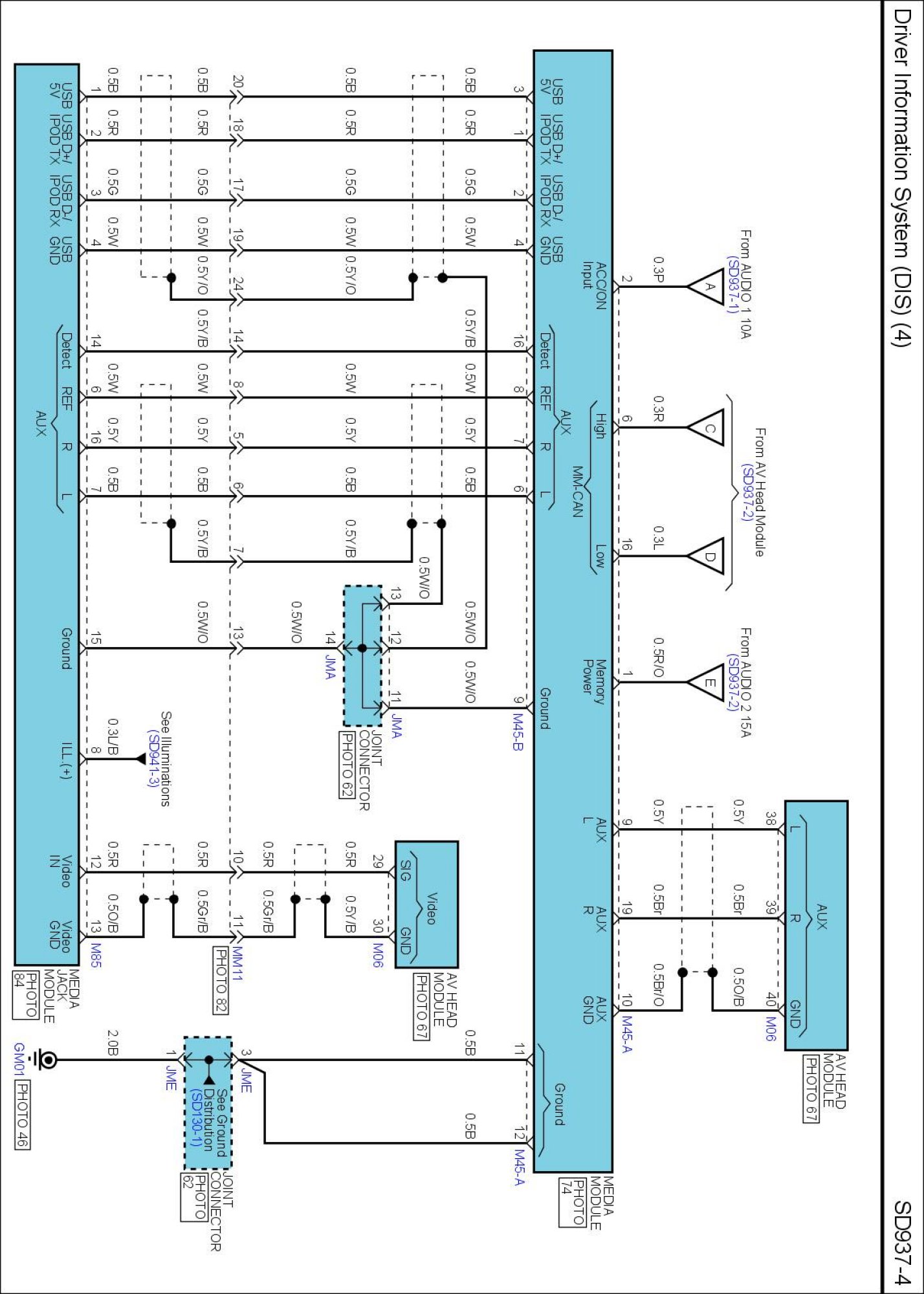

SD937-4 Driver Information System (DIS) (4):




SD937-5 Driver Information System (DIS) (5):




SD937-6 Driver Information System (DIS) (6):
