Home >> Hyundai >> 2011 >> Genesis Sedan V8-4.6L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Axle Shaft Assembly

Axle Shaft Assembly

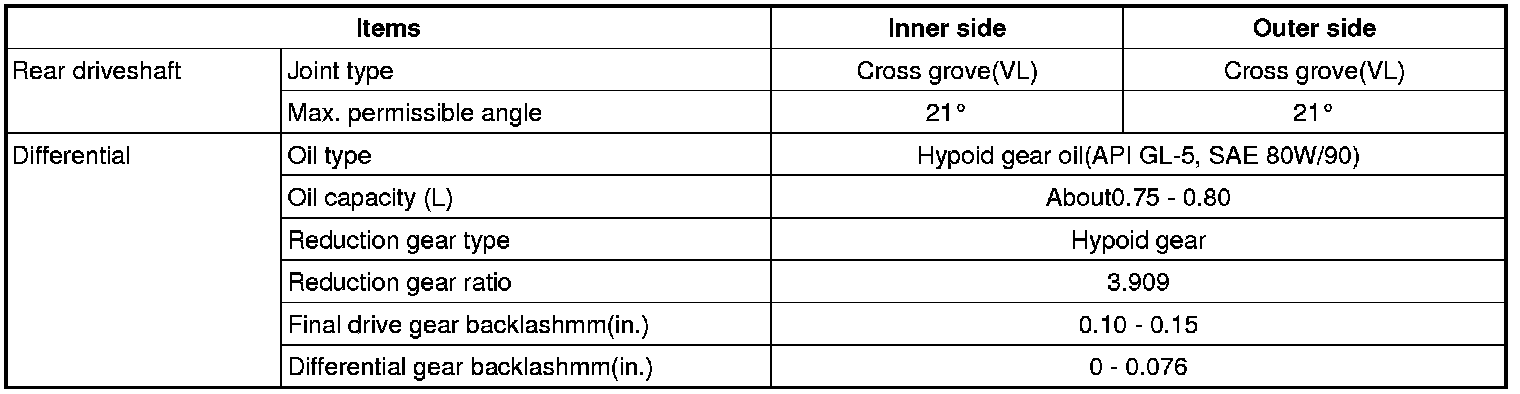

Specifications

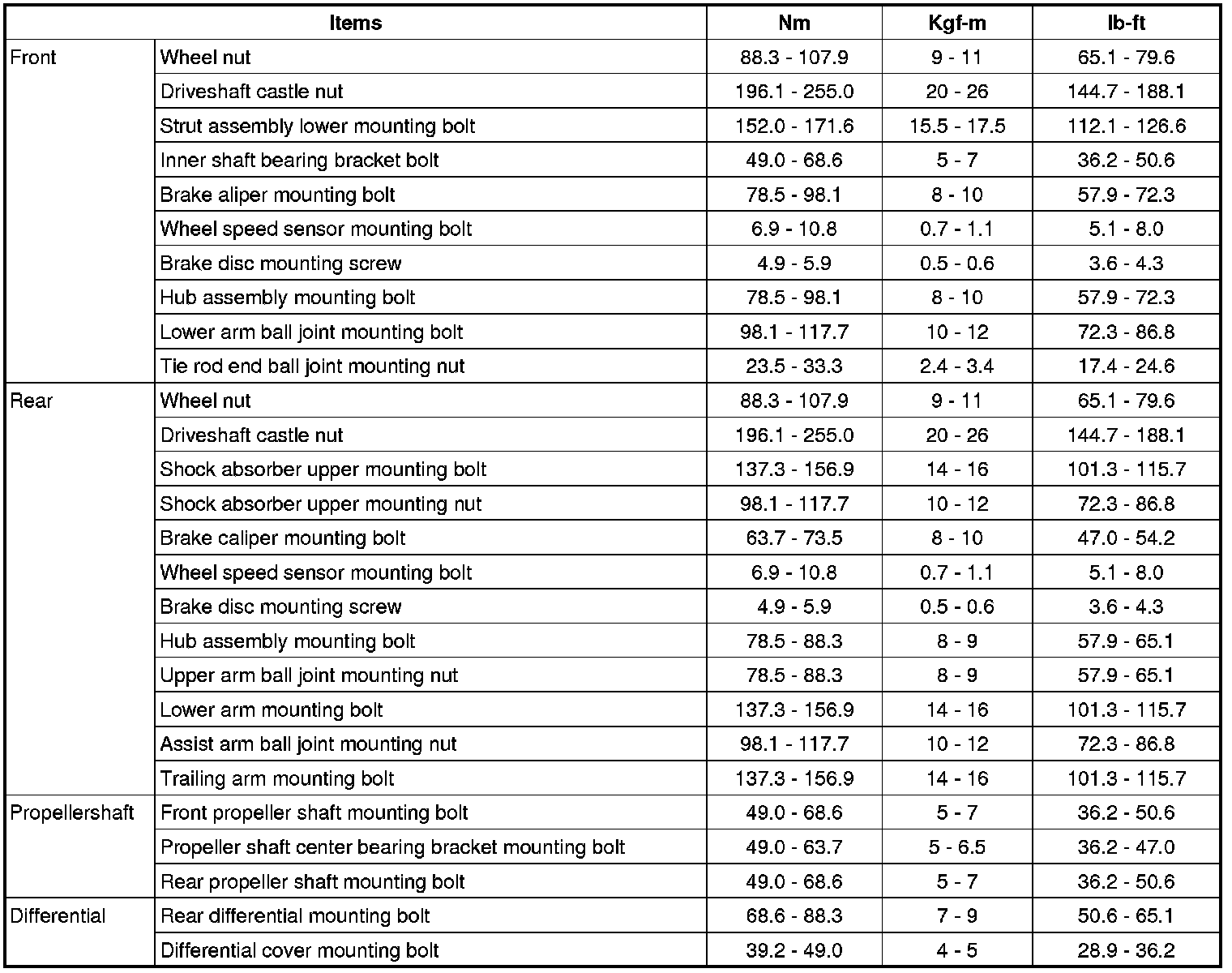

Tightening Torques






CAUTION:
Replace self-locking nuts with new ones after removal.

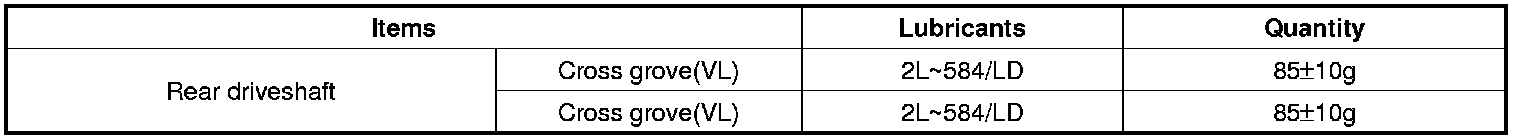

Lubricants
