Exhaust Manifold

Exhaust Manifold

Install the exhaust manifold (A).

Tightening torque 49.0 - 53.9 N.m (5.0 - 5.5 kgf.m, 36.2 - 39.8 lb-ft)

NOTE: The "TOP" mark of the gasket must be face the exhaust manifold.

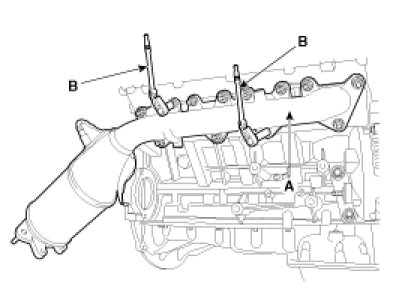

[RH]

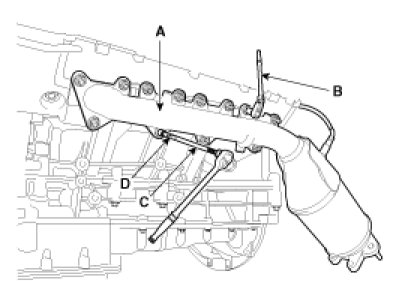

[LH]

NOTE:
Tighten the exhaust manifold mounting nuts as following method.

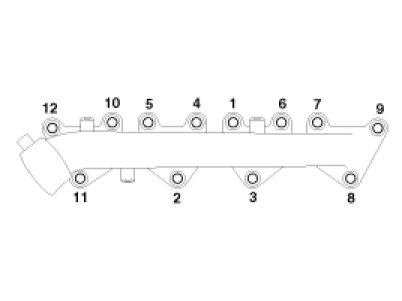

[RH]

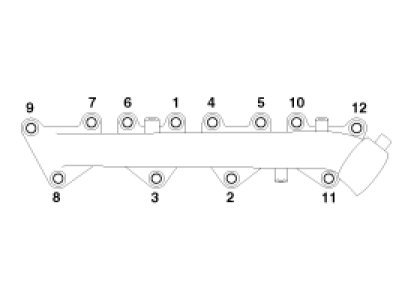

[LH] - With engine assembly removal

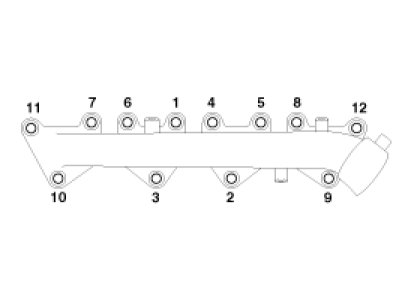

[LH] - Without engine assembly removal
