Scantool Diagnostics

A6MF2H

P0717 Input/Turbine Speed Sensor 'A' Circuit No Signal - Scantool Diagnostics

Monitor Scantool Data

1. Connect scantool to Data Link Connector (DLC).
2. Engine "ON".
3. Select "Current Data" mode and monitor "Input speed sensor (PG-A)" parameter.
4. Driving above 20 Km/h (12.4 MPH)

Specification : Increasing Gradually




































Fig 1) "P, N" range

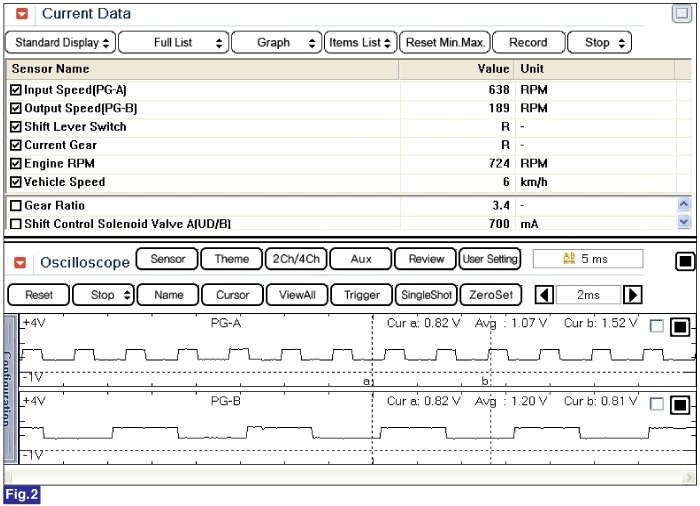

Fig 2) "R" range
Fig 3) "D" range 1st gear
Fig 4) "D Range 1st" gear, VEHICLE SPEED=0
Fig 5) "D" range 2nd gear
Fig 6) "D" range 3rd gear
Fig 7) "D" range 4th gear
Fig 8) "D" range 5th gear
Fig 9) "D" range 6th gear
5. Is measured "Input Speed Sensor" value within specific?
