Evaporator Temperature Sensor / Switch: Service and Repair

Inspection

1. Ignition "OFF".
2. Disconnect evaporator temperature sensor.
3. Using the multi-tester, Measure resistance between terminal "1" and "2" of evaporator temperature sensor.

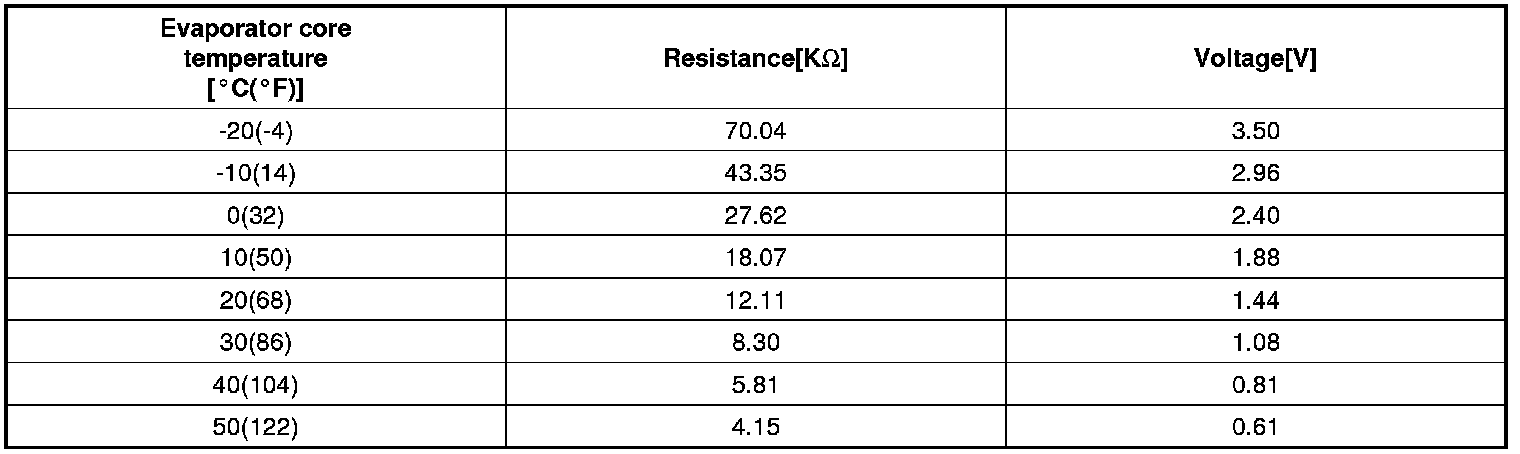

Specification






Replacement

1. Remove the console extension cover (A).




2. Remove the crash pad lower cover (A) and then disconnect the connector (B).




3. Remove the cooling hose.
4. Disconnect the evaporator temp connector (A).




5. Remove the evaporator temperature sensor (A), by pulling it after rotating 90° in a counterclockwise direction.




6. Installation is the reverse order of removal.
