Cabin Air Filter / Purifier: Service and Repair

Inspection

1. Press the OFF switch more then 4 times within 2 seconds while pressing the MODE switch.

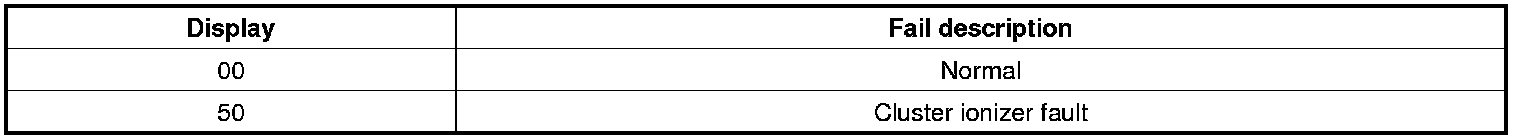

* Diagnostic procedure refer to DTC code.

Replacement

1. Disconnect the negative (-) battery terminal.
2. Remove the crash pad.
3. Loosen the screws and then remove the cluster ionizer (A).

4. Installation is the reverse order of removal.

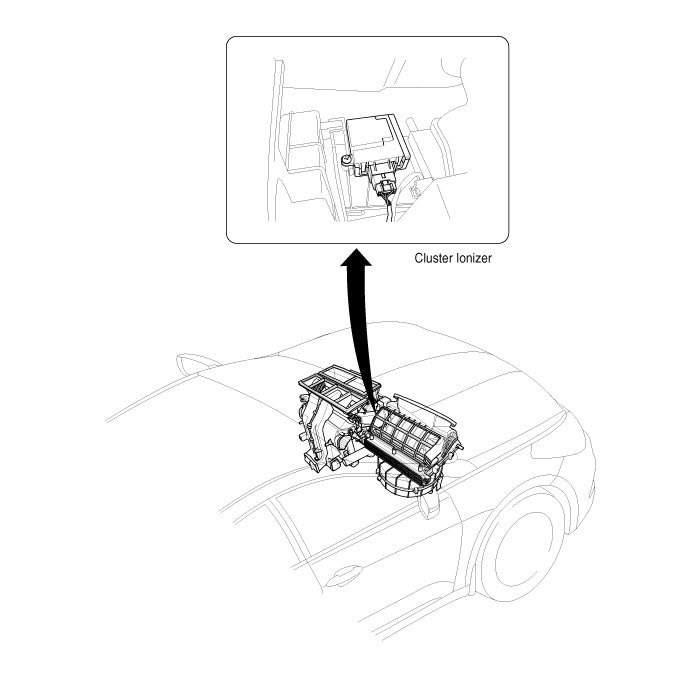

Component location
