Accelerator Pedal: Service and Repair





Removal

1. Turn the ignition switch OFF and disconnect the negative (-) battery cable.

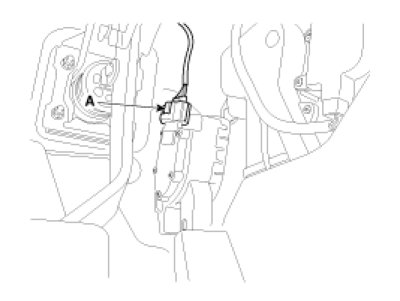

2. Disconnect the accelerator position sensor connector (A).

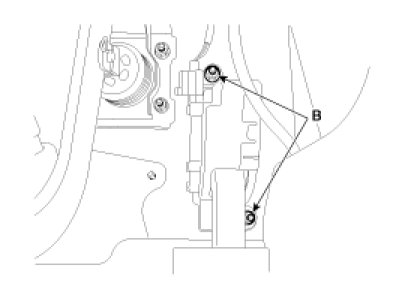

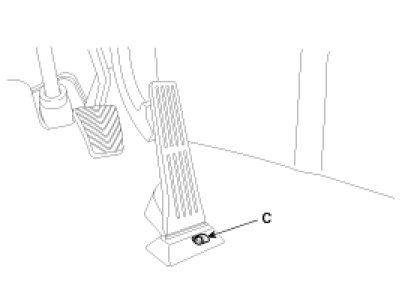

3. Remove the installation nuts (B) and bolt (C), and then remove the accelerator pedal module.










Installation

1. Installation is reverse of removal.

Accelerator pedal module installation nut:
12.7 - 15.7 N.m (1.3 - 1.6 kgf.m, 9.4 - 11.6 lb-ft)
Accelerator pedal module installation bolt:
8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)
