Restraints and Safety Systems: Tools and Equipment

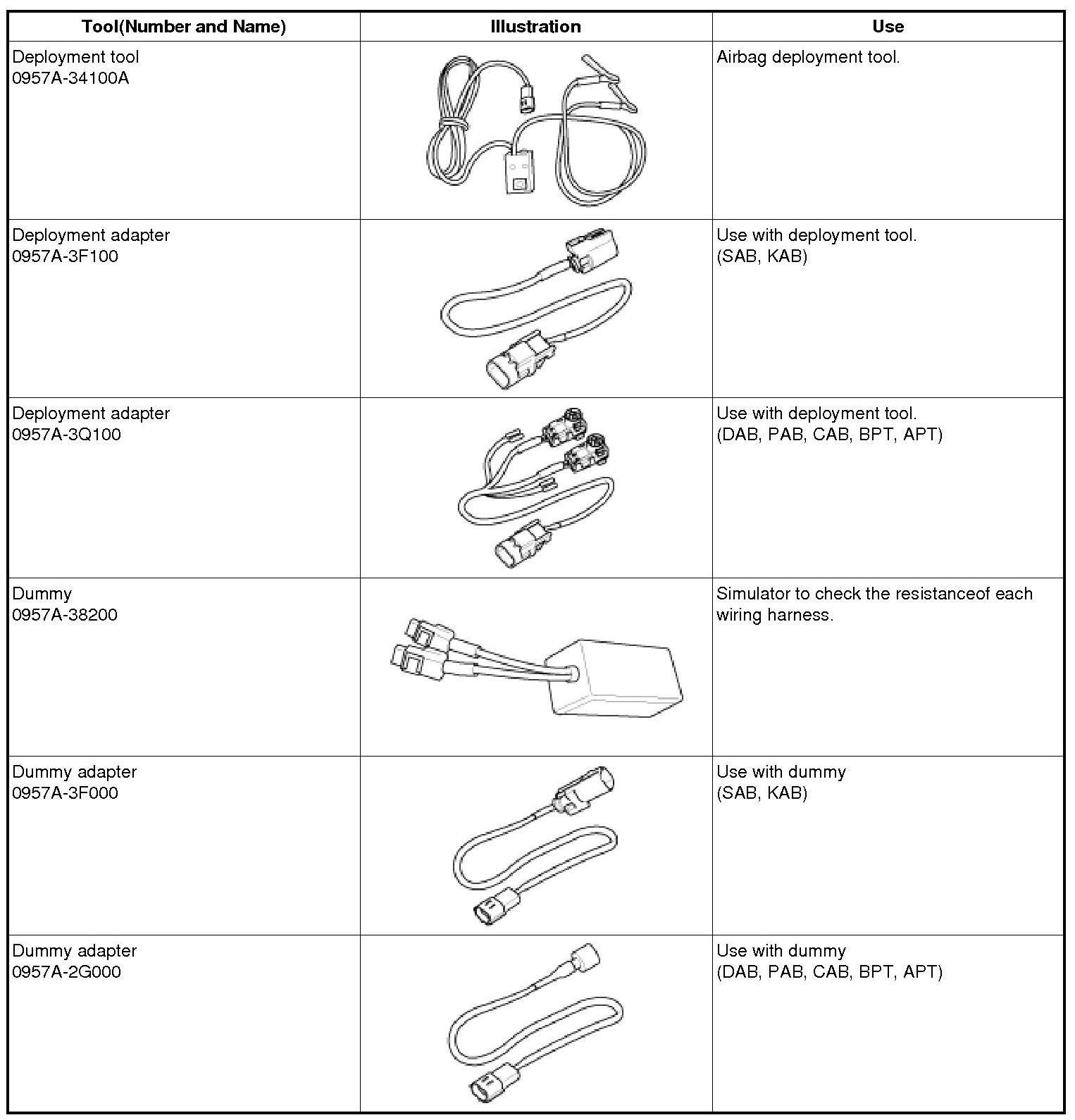

Special Service Tools

DAB : Driver Airbag
PAB : Passenger Airbag
SAB : Side Airbag
CAB : Curtain Airbag
KAB : Knee Airbag
BPT : Seat Belt Pretensioner
APT : Anchor Pretensioner
