Pressure Plate

Pressure Plate

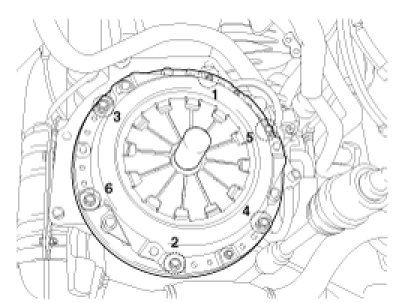

Install the clutch cover bolts. Not to be bent or twisted, Tighten them in diagonal directions.

Tightening torque 11.8 - 14.7 N.m (1.2 - 1.5 kgf.m, 8.7 - 10.8 lb-ft)
