Repair Procedures

Inspection

Speed Operation Check
1. Remove the connector from the wiper motor.
2. Attach the positive (+) lead from the battery to terminal 5 and the negative (-) lead to terminal 2.
3. Check that the motor operates properly.






Removal

1. Remove the wiper arm mounting nut(B) after removing the wiper cap(A).




2. Remove the windshield wiper arm(A) and blade(B).

Torque :23 - 27 Nm (2.3 - 2.7 kgf.m, 16.6 - 20 lbf.ft)




3. If necessary of removing the wiper blade, push in the bottom of the wiper blade clip(A) and remove the wiper blade from the inside radius of the wiper arm.




4. Remove the weather strip then remove the cowl top cover(A) after removing 3 rivets.




5. Disconnect the wiper motor connector(A).




6. Remove the windshield wiper motor and linkage assembly(A) after removing 2 bolts.

Torque :7-11Nm (0.7-1.1, kgf.m, 5.0-7.9 lbf.ft)





Installation

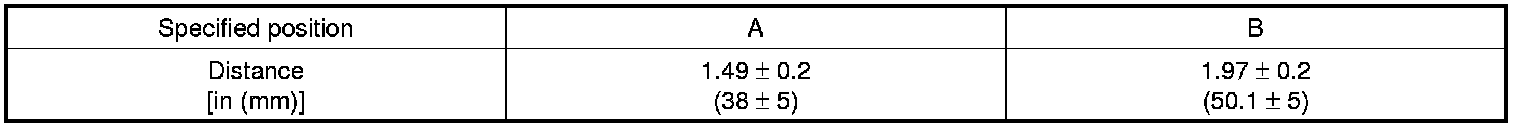

1. Install the wiper arm and blade to the specified position.

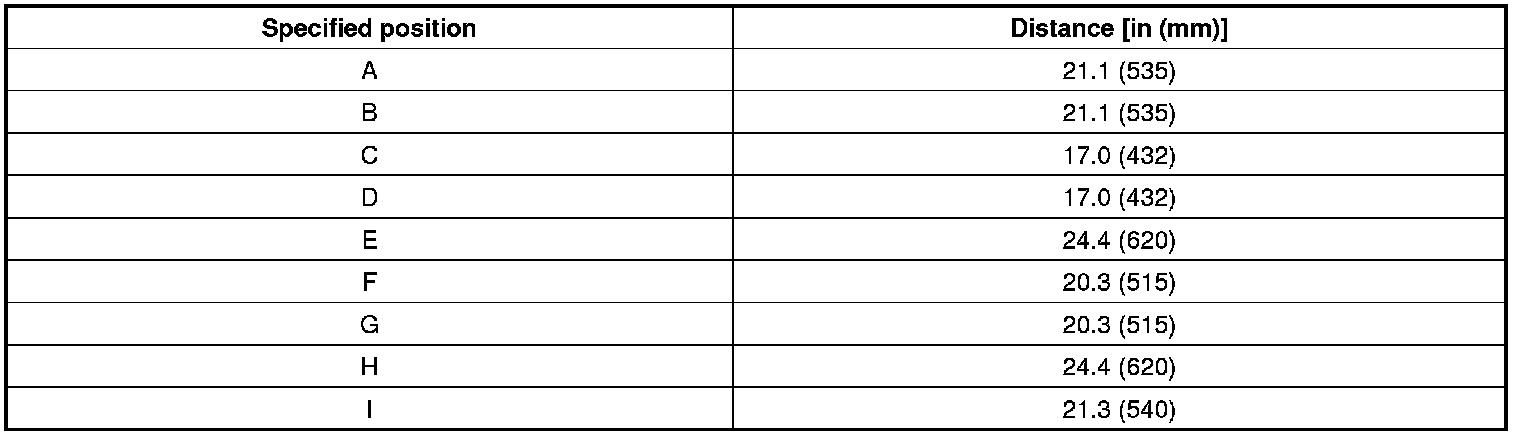

2. Set the washer nozzle on the specified spray position.
